Home > Products > Water well drill rig > multi-function water well drill KW20 hot sale

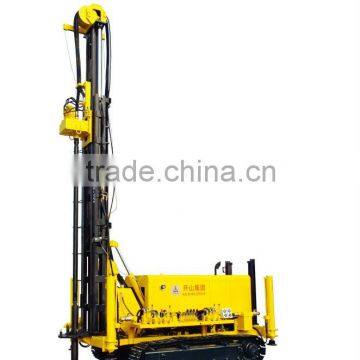

multi-function water well drill KW20 hot sale
US$ 40,000 - 50,000
/ Piece
1 Piece(Min. Order)
- any port in china
- T/T Credit Card PayPal
You May Like
-
KW30 Portable Water Drilling Equipment
-
2012 hot sale !!depth 120-300m, diameter:168-300mm,KW30 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
new one !!depth 120-300m, diameter:168-300mm,KW30 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
KW30 Portable Water Drilling Equipment/Crawler Water Drilling Rig Equipment
-
new one !!depth 120m, diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
Water Well Drilling!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Place of Origin | Zhejiang, China | Brand Name | KAISHAN | |
| Model Number | KW20 | Usage | Water Well |
Product Description
Specifications
1.Double motor rotary mechanism2.Double Oil Cylinders feeding
3.Safe and stable travelling
4,factory price
5.100 pc/week
1)type:crawler
2)diameter:115-254mm
3)depth:120m
Crawler rig
1.Safe and stable travelling system
2.Centralized operating system
3.Powerful feeding and rotating system
4.ISO9001.2000
technic parameter
KW10 | KW20 | ||
Total weight(Kg) | 6000 | 7500 | |
size(mm) | 6000×2300×2500 | 5100×2300×2850 | |
Travel speed(Km/h) | 0~2.5 | 0~2.5 | |
Drive type | YC4D08 | YC6B125-K10 | |
Drive parameter | 58Kw/2400rpm | 92Kw/2200rpm | |
Ground clearance(mm) | 245 | 280 | |
journey(mm) | 460 | 1000 | |
hammer | KXD360(KXD380) | KXD360(KXD380) | |
Climb slope ability( °) | 25 | 25 | |
Drill depth(m) | 120 | 200 | |
Work wind pressure(MPa) | 1.05-2.46 | 1.05-2.46 | |
Air consumption(m3/min) | 16-30 | 16-30 | |
Drill rod(mm) | φ76,φ89 | φ76,φ89 | |
Drill rod length(mm) | 3000 | 3000 | |
Drill hole diameter(mm) | φ115-254 | φ115-254 | |
Push journey(mm) | 1750 | 2400 | |
propulsion(N) | 30000 | 45000 | |
Lifting Power(N) | 70000 | 95000 | |
Spindle Rotary Speed(rpm) | slow | 50 | 60 |
fast | 100 | 105 | |
Swing torque(N·m) | 3200 | 4000 | |
