Portable rock drill pneumatic hammer G10 hand hold rock drill
- any port of china
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KASHAN | |
| Model Number | G10 | Type | Air Hammer | |
| Average Air Consumption | 22l/s |
Product Description
Specifications
1)advanced equipment, technology2)safe and easy to operate
3)good Service
4) competitive price
CHARACTER:
Safe and easy to operate
High efficiency and reliability
Best product quality control from cutting edge forging process to product completion
Durable with minimal maintenance
Specification
1.it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
2. it is matched with the Model FY200A Oil reservior and Model FT160A or FT160B Air-leg, it can perform wet drilling and blast holes from different and angles.
Specification
| Item Name | YT24 |
| Weight | 24kg |
| Overall dimensions | 678mm |
| Stoke | 70mm |
| Cylinder Dia | 70 mm |
| Air pressure | 0.4-0.63mpa |
| Water pressure | 0.2-03mpa |
| Impact frequency | >31Hz |
| Air consumption | 66.7L/S |
| Drilling speed | 250mm |
| Max drilling depth | >6m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 13mm |
| Drill bit size | 32-42mm |
| Drilll rod size | H22X108mm |
| FT140B air-leg | |
| Length of air leg | 1,687mm |
| Drilling length | 1,250mm |
| Inner diameter of air cylinder | 60mm |
| weitht | 15.6kg |
| FT140BD air-leg | |
| Length of air leg | 1,400mm |
| Drilling length | 1,000mm |
rock drill series
jack hammer
jack hammer | |||||
Model | YO18 | Y18P | Y19A | YO20 | Y26 |
Weight(kg) | 18 | 18 | 19 | 20 | 26 |
Length(mm) | 550 | 550 | 600 | 561 | 650 |
Cylinder size*trip(mm) | 58*45 | 58*45 | 65*54 | 63*55 | 65*70 |
Working pressure(Mpa) | 0.35-0.63 | ||||
Impact frequency(Hz) | ≥32 | ≥30 | ≥28 | ≥33 | ≥23 |
Impact energy(J) | ≥22 | ≥22 | ≥28 | ≥26 | ≥30 |
Air consumption(m3/min) | ≤20 | ≤24 | ≤37 | ≤33 | ≤47 |
application
Rock Drill
characters:
1,high quality materials
2. scientific forging
3.heat treatment
4.safty and economy.
use:
1.widely used in coal, metallurgy, railway, transportion,
2.water conservancy, infrastructure and defense engineering in the level of all kinds of rocks,
The rock drill is used for rock drilling, blasting holes and other drilling worksin the quarries, small coal mines and other constructions.

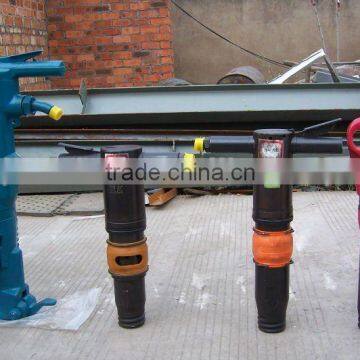

picture:
