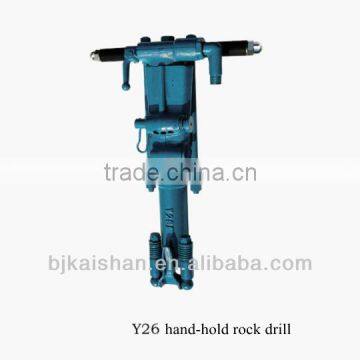

Pneumatic Pick Rock Drill(Y26)
- NINGBO CHINA
- L/C Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | KAISHAN | |
| Model Number | YT26 | Type | Air Hammer | |
| Average Air Consumption | ≤64 L/s | Maximum Torque | 60 J | |
| No-Load Speed | 60~90 r/min |
Product Description
Basic Information.
Model NO.: YT26
Type: Air Hammer
Name: Pneumatic Pick
Model: YT26
Color: Blue or Yellow or Others
Export Markets: Global
Product Description
Safe and easy operate; High Efficiency and reliability.
Introduction
Handheld pneumatic tools, using compressed air to push the piston reciprocating movement, keeping the pick up to
the impact.
Pneumatic pick is tool that is often used in excavating, geology or destroying hard or frozen stratum and other
occasions. It somewhat resembles a construction hammer, except that it usually has a long, pointed tip on the end.
It is designed to chisel through and break up rock in locations where using powered equipment might be impractical.
Applications:
The pneumatic pick is suitable for drilling in mine,metallurgy, railway, transportation,water conservancy, infrastructure
and defense engineering, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other
occasions which need impact.Its an ideal machine for construction and back out of mines, bridges, roads, water pipes
and electricity grids.
Specifications
Hand Hold Rock Drill(Y26) | |
Total Length(mm) | 650 |
Weight(Kg) | 26 |
Cylinder Diameter(mm) | 65 |
Piston Stroke(mm) | 70 |
Air Pipe Inner Diameter(mm) | 19 |
Work Pressure(Mpa) | 0.4 |
Impact Energy (J) | ≥30 |
Impact Frequency(Hz) | ≥23 |
Shank Head Diameter(mm) | 34~42 |
Air Consumption(L/s) | ≤47 |
Air Pipe Inner Dia(mm) | 19 |
Water Pipe Inner Dia (mm) | 13 |
Rock Drill Hole Dia(mm) | 34~42 |
Rock Drill Hole Depth(m) | 5 |
