JY - DZ1600 Jumbo Roll Slitter Rewinder Machine With Good Quality
- ningbo port
You May Like
-
JY - SK1600 Paper Slitting Rewinder Machine Manufacturer
-
JY - SK1600 Slitter and Rewinder Machine in China
-
JY - SA1600 Jumbo Paper Roll Cutting Machine
-
JY - SZ1600 Jumbo Roll Paper Cutting and Rewinding Machine
-
Manufacturer for JY - SA1600 Jumbo Kraft Paper Slitting Rewinding Machine
-
JY - SZ800 Paper Roll Slitter Rewinder Machine ( Min Width 25 mm )
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | No | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | JY-DZ1600 | |
| Voltage | 3*380 | Power(W) | 4.0 KW | |
| Dimension(L*W*H) | 1500*5150*1500 mm | Weight | 2500 kgs | |
| Certification | CCIS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

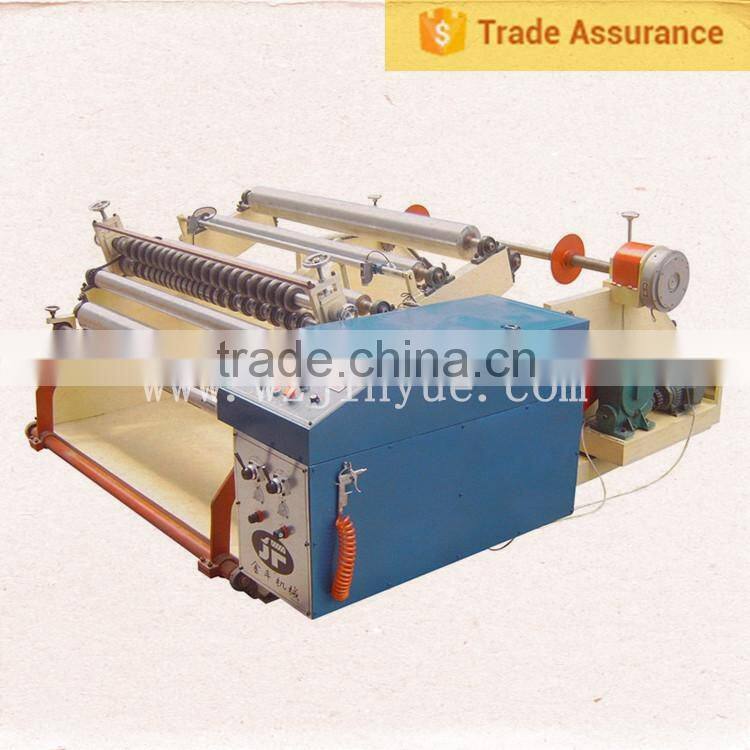

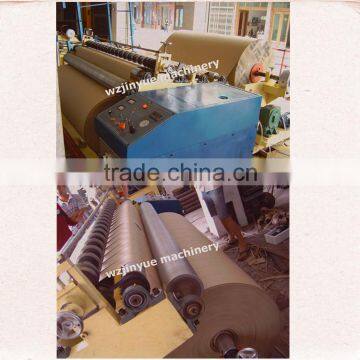

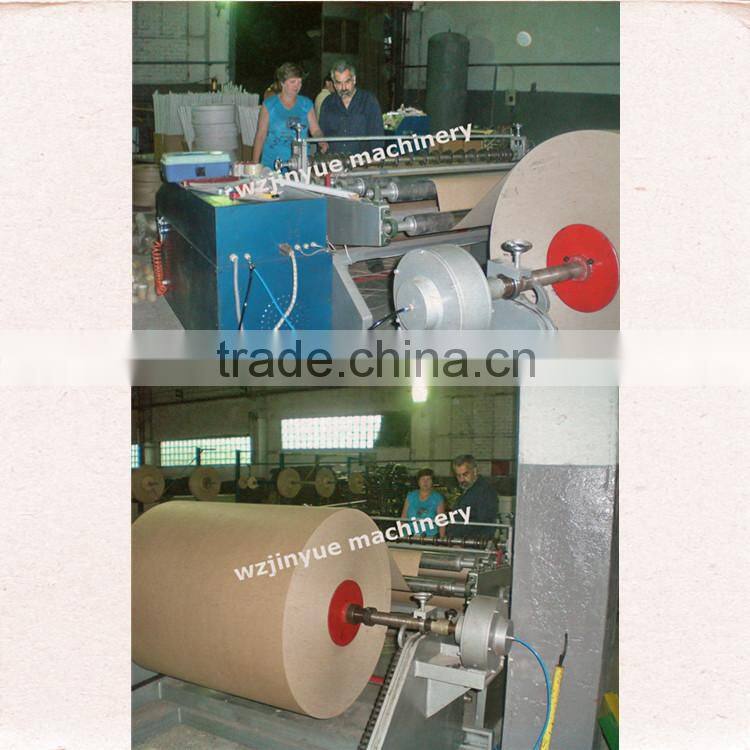

JY - DZ1600 jumbo roll slitter rewinder machine with good quality
USE:
Suitable for all kinds of kraft paper, tea paperboard, grass paperboard, calico and art paper cutting
FEATURE:
1. Two blades cutting; thicken blade;
2. The two side of the paper will be smooth after the cutting, without any burring
3. Tray paper will be tidy with two sides feat;
4. All the operation will be finished on the panel with ease operation;
5. With high capacity, the single machine can be provided for three sets of reel-pipe machine;
6. S.S structure body; beautiful performance;
7. Pneumatic discharge with easy operation;
8. Double magnetic powder brake control, and with equally tension.
Technical Parameter | Control system | ||
Jumbo roll width | 25-1600 mm | Electrical product | CHINT |
Un-winder diameter | 1300 mm | Signal part | SHHG |
Re-winder diameter | 1000 mm | Pneumatic part | AIRTAC |
Slitting speed | 0-200 m/min | Driving system | |
Slitting range | 35-600 g | Main motor | 4.0 KW |
Re-winding method | stalk involution | Load paper power | 2.2 KW |
Blade quantity | 21 pairs | Correction motor | Y110 6:1 |
Load paper roll | Motor driven | Winding reducer | WPA120 |
Speed adjust | Adjust speed motor | Load paper reducer | WPA100 |
Power supply | 3*380V | Driving way | Connected bearing |
Mainframe & Weight | Equipped devices | ||
Un-winder part | 1500*2350*1200 | Load paper way | Motor driven |
Re-winder part | 1350*2800*1500 | Unload paper way | Pneumatic |
Up-blade | 105*70*4 | Auto edge correction | Electric screw correct device |
Low-blade | 105*70*4 | Counter meters | Automatically counter |
Weight | 2500 KGS | Tension correction | Pneumatic adjust |
Accessories | Brake | Double steam brake adjust | |
Useful tool | 1 set | One instruction manual | |
Wrench | Hex wrench | ||
1.OEM service is welcome!
2. We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
