3 and 6 inches spiral paper tube winding machine
- 10 Set / Sets per Month
- Ningbo port or Shanghai port
- T/T
You May Like
-
JY-200B paper core spiral winding machine
-
New design JY - HS120 spiral paper tube making machine manufacturer
-
JY - HS50 spiral paper core making machine manufacturer
-
MC150 paper tube core winding machine online multicut
-
JY-MC100 high speed paper tube machine online multicut
-
JY-200B spiral paper core machine manufacturer
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | JY-120A | |
| Voltage | 380 | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 3600*2000*1800 | Weight | 2000kg | |
| Certification | Other, CCIS ( PRC ) SGS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

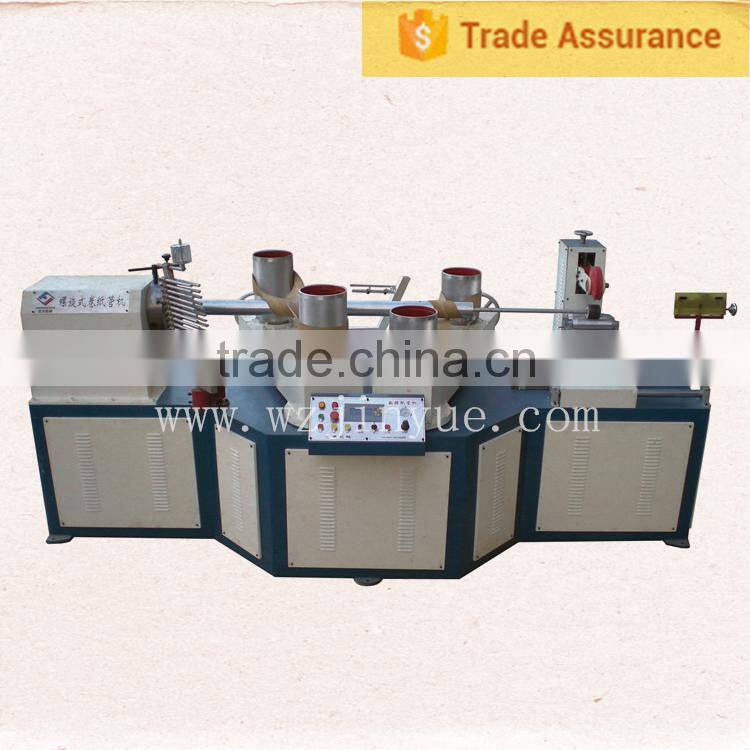

3 and 6 inches spiral paper tube winding machine
USE:
Apply to textiles,plastic,industrial pipe,such as fabric reel,chemical fiber pipe,airflow spinning inner core,etc.
FEATURE:
1.Low price,strong practicability,stable performance;
2.Automatically cut,automatically fall pipe,automatically change speed and revert;
3.Computer PLC control,touch screen man-machine interface operation;
4.Round knife cutting,incision more smooth,performance more stable;

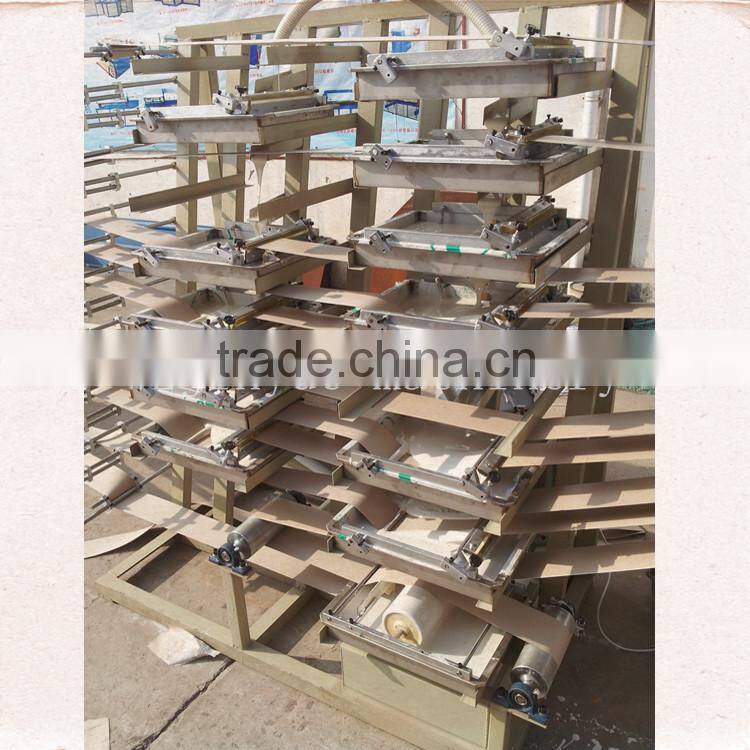

5.Stainless steel gluing box,with polyurethane scraper and high carbon steel plastic
knife,durable in use;
6.Automatically glue
Basic parameter:
•Tube I.D.: 20-200mm
•Tube wall thickness: 1-10mm
•Paper plies: 16 plies
•Paper gramme: 100-530GSM
•Machinery speed: 1-20m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 1000-4000mm (or more)
Machine Consists:

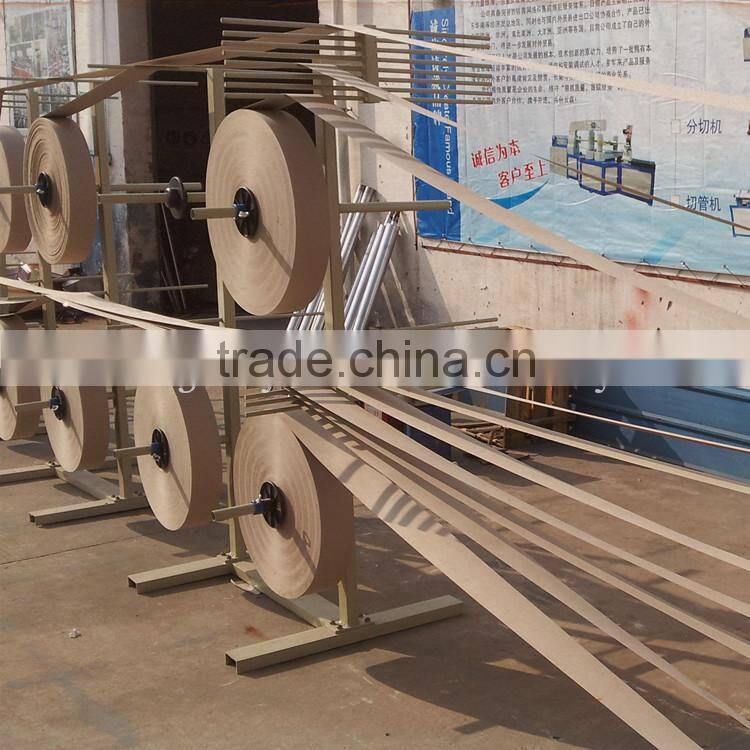

.Paper tube auto load shelf
Technical Parameter | Control System | ||
Number of roller | 3-16 layer | PLC controller | Delta |
Tube diameter | 20-200 mm | Touch screen | Optional |
Tube wall-thickness | 1-10 mm | Transducer | Delta |
Core mould fixed way | Flank | Electric part | CHINT |
Winding head | 2 | Signal part | SHHG |
Cutting way | Round knife | Pneumatic part | AIRTAC |
Gluing way | Single / Double sides | Fix length way | Optoelectronic switch |
Operator | 1-2 person | Equip device | |
Winding speed | 3-20 m/min | Paper shelf type | Crisscross |
Speed control | Transducer | Auto fall tube shelf | Have |
Driving System | Glue system | Have | |
Main motor | 7.5 KW | Belt | 4 |
Reducer type | WPO135 | Core mould | 2 |
Cutting motor | Rawson | Waxing device | Optional |
Glue pump | 1.5 KW | Heat sealing device | Optional |
Mainframe size & Weight | |||
Mainframe size | 3600*2000*2000 mm | Weight | 2000 KG |
Area space | 15000*60000 mm | ||
1.Jumbo paepr roll slitting rewinding machine
2.Paper tube core making machine
3.Paper tube core cutting machine
4.Paper tube core curling / sealing / labeling / printing / waxing machinery
5.cleaning roller making machine
Packaging | The machine will be packaged in film in standard and shipped by container. Also the client can choose wooden box or pallet package ( need extra fee ) |
Shipment | Within 10 – 30 days after receive the down payment |
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
