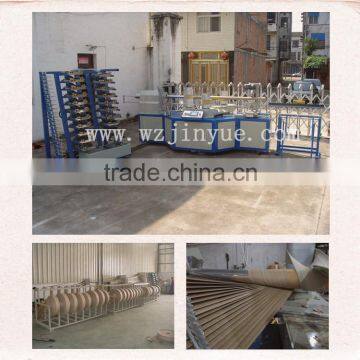

JY-200B Paper Core Spiral Winding Machine
- ningbo port
You May Like
-
New Design JY - HS120 Spiral Paper Tube Making Machine Manufacturer
-
JY - HS50 Spiral Paper Core Making Machine Manufacturer
-
MC150 Paper Tube Core Winding Machine Online Multicut
-
JY-MC100 High Speed Paper Tube Machine Online Multicut
-
JY-200B Spiral Paper Core Machine Manufacturer
-
MC150 Numerical Control Paper Tube Core Machine With Online Multicut
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | JY-200B | |
| Voltage | 3*380 V | Power(W) | 15 KW | |
| Dimension(L*W*H) | 3800*2000*1800 mm | Weight | 3000 KG | |
| Certification | Other, CCIS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JY-200B paper core spiral winding machine
USE:

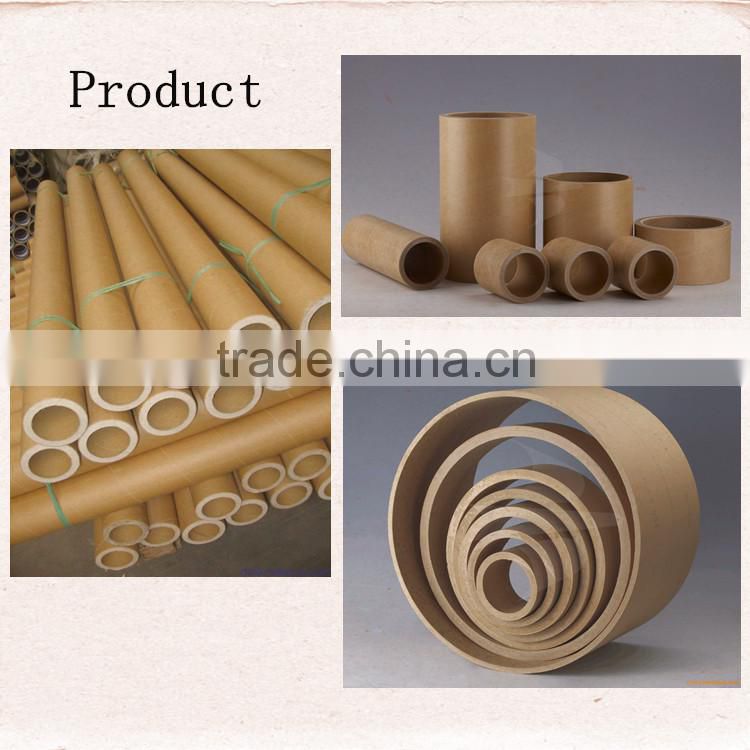

Used in paper industry and all kinds of thick tube production. Such as , roll paper core,BOPP film inner core and industrial pipe ,etc
FEATURE:
1. Low price,strong practicability, stable performance;
2. Automatically cut, automatically fall pipe, automatically change speed and revert;
3. Computer PLC control, touch screen man-machine interface operation;
4. Round knife cutting, incision more smooth, performance more stable;Automaticaaly glue
5. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;
6. Automaticaaly glue.
Basic parameter:
•Tube I.D.: 25-300mm
•Tube wall thickness: 1-15mm
•Paper plies: 24 plies
•Paper gramme: 100-530GSM
•Machinery speed: 1-20m/min (depend on tube sizes, material quality and operator skill )
•In-line cut off length: 1000-4000mm (or more)
Machine Consists:
Technical Parameter | Control System | ||
Number of roller | 3-24 layer | PLC controller | Delta |
Tube diameter | 25-300 mm | Touch screen | MCGS |
Tube wall-thickness | 1-15 mm | Transducer | Delta |
Core mould fixed way | Three claws chuck | Electric part | CHINT |
Winding head | 2 | Signal part | SHHG |
Cutting way | Round knife | Pneumatic part | AIRTAC |
Gluing way | Single / Double sides | Fix length way | Optoelectronic switch |
Operator | 1-2 person | Equip device | |
Winding speed | 3-20 m/min | Paper shelf type | Crisscross |
Speed control | Transducer | Auto fall tube shelf | Have |
Driving System | Glue system | Have | |
Main motor | 15 KW | Belt | 4 |
Reducer type | WPO135 | Core mould | 2 |
Cutting motor | Rawson | Waxing device | Optional |
Glue pump | 1.5 KW | Heat sealing device | Optional |
Mainframe size & Weight | |||
Mainframe size | 3800*2000*2000 mm | Weight | 3000 KG |
Area space | 15000*70000 mm | ||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3. Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
