2015 K-91 Led Power Supply 12v 30amp

FOB Price

US$ 1 - 100 / Unit

500 Units(Min. Order)

Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-91	Output Power	Other, 360wmax
Output Type	Single	Input Voltage	Other, 85-264VAC
Output Voltage	0-48vac	Output Frequency	50/60HZ
Output Current	30A

Product Description

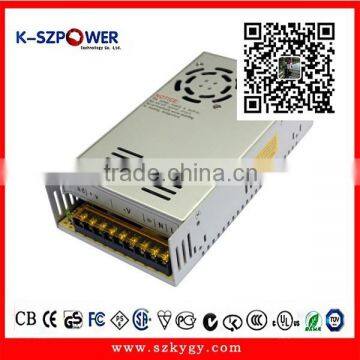

360W Single Output Certified Power Supply

High reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit/Over voltage/Over temp
Approvals:CE CCC
Forced air cooling by Built-in DC fan
2 years warranty
Case:813 Size:227×115×50mm

AC input voltage range-------------------88-132VAC/176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,60A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% fold back current limiting, auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooling by Built-in DC fan

Product model	DC output	Load regul.	R&N	Efficiency
k-360-5	5V,72A	2%	100mV	78%
k-350-12	12V,30A	1%	120mV	81%
k-350-24	24V,15A	1%	200mV	84%
