2015 K-75 YGY 9w ac/dc linear switching adaptor 9VDC 1A

Technical date()

1.Input voltage():AC 100/240v           2.Input current : 300Ma

3. Frequency()50/60HZ                        4.Efficiency()CEC-V/ERP/MEPS

5.Output voltage(),5%                  6.Standby Power()0.3W

Environment()

1Working temperature()0C to 40C       2.Storage temperture()- 20C to 60

3Humidity()5% to 95% R.H.

Safety standard()UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

Reliable()

1.     MTBF50000Hours@25C (MIL-HDBK-217)

SPEC()

1Weight() 83g            2.Size()L57mm*W39mm*H26mm

Typical parameters()

NO       Model No    Voltage(V)   Current(mA)  Ripple&Noise(mv)   Efficiency()115V/230V

1                          K-0501500        5              1500              50                  V

2                          K-0701200        7              1200              50                  V

3                          K-0900800        9               800              90                  V

4                          K-0901000        9              1000              90                  V

5                          K-1200800       12               800             120                  V

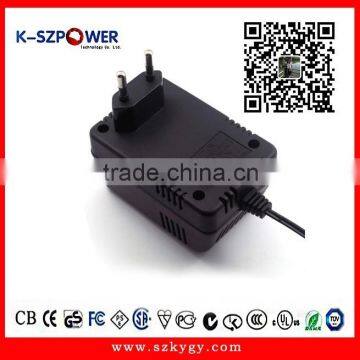

9VAC 1A wall-mount Linear Power adapter. Linear power supply,CE ROHS EMC certified,Class II,LPS, Energy-saving,IP20,Universal input, customized design.
P/NK-XXYYYY

Model:K-09001000

"XXX"=030-480, The output voltage is DC3.0-48.0V,
"YYY"=001-999, The output current is 0.01-9.99A,
"Z" representing the input plug, 0-European plug, 1-British plug, 2-the Australian plug,3-USA plug, 4- Japan plug, 5-China plug,6-Korea plug.
"D"=L, linear power supply.

General scope:

Very low-ripple and noise

Very good regulation, low-disturbance noise, but heavier, bigger size, than switching power supply

Used for antenna, fan, radio, video, toy, aquarium, desk lamp, LED lamp and more

Burn-in: 100% full load, 40C, 4 hours (minimum)

Leakage current: 0.25mA at 264V AC (maximum)

Power:9W
Input valtage:230-240VAC 50HZ 110mA
Input current:110mA
Output valtage:9VAC
Output current:1000mA

Input:

No-load input power: 0.3W at 240V AC

Efficiency: CEC IV, ErP I

Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)

Output

DC output voltage: 3 to 24V AC (optional)

DC output current: 30 to 1,000mA (maximum)

Output voltage precision: 5%

Ripple and noise: 100mV

Regulation:1% line, 5% load

Wire length: 1.5m

CE (low-voltage directive)

UL1310, GB4943-2001

EN61558-2-6
PSE IEC60950, EN60065

EN60950:2009, EN60065

AS/NZS 60950:2000, AS/NZS60065

High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP

Lightweight and convenient plug in

IP20 rating

High-reliability

Low-temperature

AS/NZS3548, AS/NZS4251.1 class B

EN55024/A1:2001

IEC61000-4-2, IEC61000-4-3

IEC61000-4-4, IEC61000-4-5

IEC61000-4-6, IEC61000-4-11

GB9254-1998/GB17625.1-2003

FCC part 15 class B

CNS13438 class B

EN55022 class B
CISPR22 class B

Very nice regulation

Low-disturbance noise, but more heavy
Very low-ripple and noise

Short-circuit

Thermal cutoff capability

Customized requirements are accepted

Larger size than switching power supply

Used for antennas, fans, radios, video, toys, aquariums, desk lamps and LED lamps
