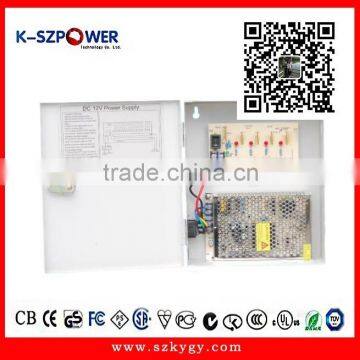

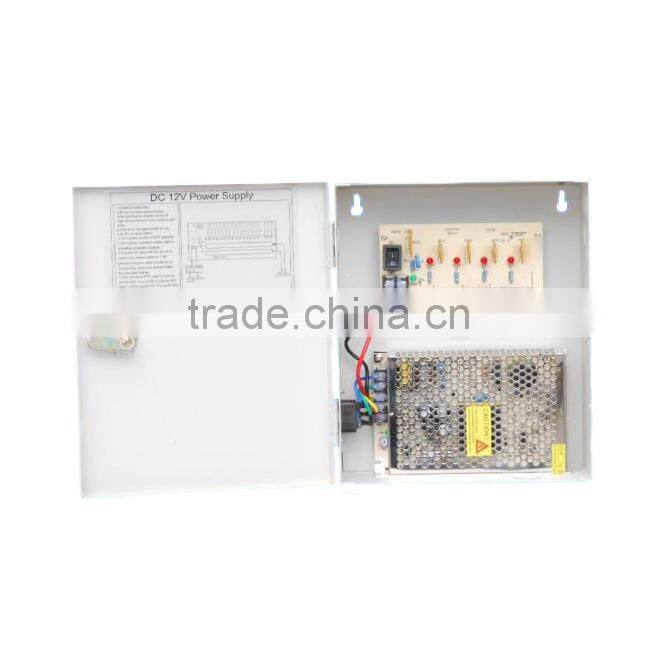

2015 K-77 k YGY 12V 3A Power Supply Box With 4 CH for CCTV Camera

Technical date()

1.Input voltage():AC 100-240v           2.Input current : 1000Ma

3. Frequency()50/60HZ                        4.Efficiency()CEC-V/ERP/MEPS

5.Output voltage(),5%                  6.Standby Power()0.3W

Environment()

1Working temperature()0C to 40C       2.Storage temperture()- 20C to 60

3Humidity()5% to 95% R.H.

Safety standard()ROHS UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

Reliable()

1.     MTBF50000Hours@25C (MIL-HDBK-217)

SPEC()

1Weight()2200g        2.Size()L250mm*W215mm*H94mm

Typical parameters()

1Fuse TypePTC Resetable

2  Fuse  Rating:2A

3.  Feature: General protection:each output has independent PTC fuse and LED indicator, when problem occurs,only affect the independent output, other outputs still working.
Circuit short protection:when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection:when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

4.With battery charger
4.Application()CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control ,etc.

NO       Model No    Voltage(V)   Current(mA)  Ripple&Noise(mv)   OUTPUTS

1                         K-12030004CH       12             3000           50                   4 OUTPUTS
