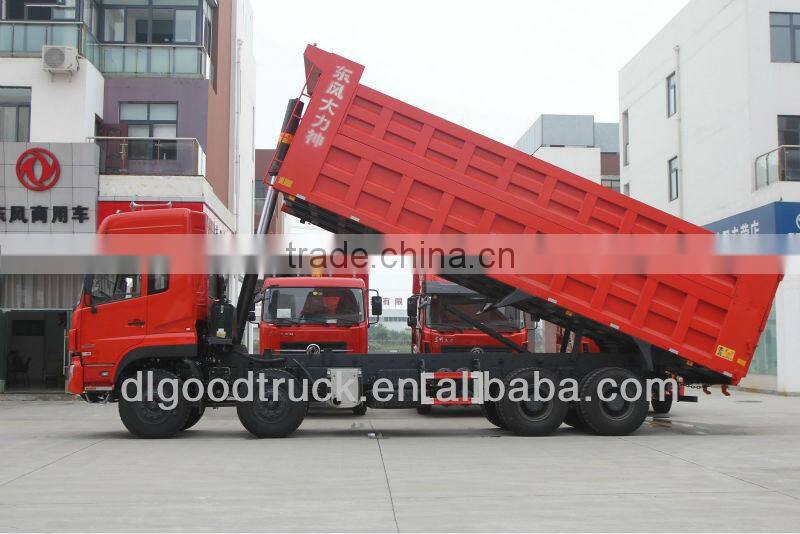

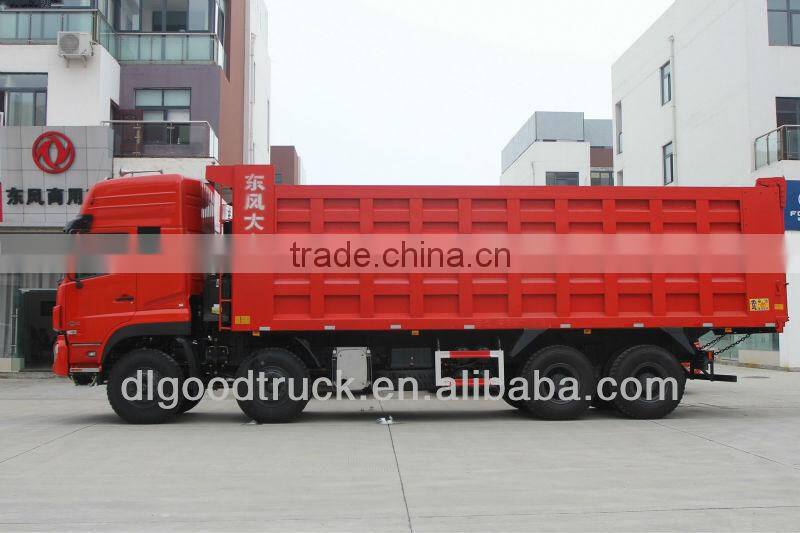

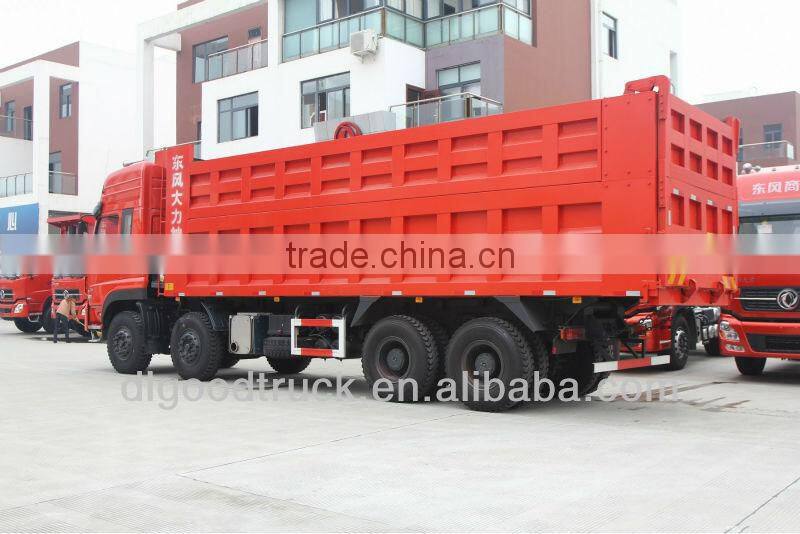

Dongfeng 30 Ton Dump Truck for Sale
- Any port of China
- T/T Credit Card
You May Like
Product Details
| Drive Wheel | 8x4 | Capacity (Load) | 21 - 30t | |
| Horsepower | 251 - 350hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 42380 | Place of Origin | Hubei, China | |
| Brand Name | Dongfeng | Model Number | DFL3318A12 | |
| Dimensions (L x W x H) (mm) | 11740x2600x3700 |
Product Description
Specifications
1.Drive type: 8x42.Engine L340 20
3.FAST gearbox
4.Stable performance
5.Good price
1.Drive type: 8x4
2.Engine L340 20
3.FAST gearbox
4.Stable performance
5.Good price (Almost 1/3-1/4 price of Janpanese hino,nissan,Mitsubishi similar dump truck )
Specification | ||
Chassis model | DFL3318A12 | |
Drive type | 8×4 | |
Engine | Model | L340 20 |
Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, built-in EGR | |
Max. power(Kw/rpm) | 250/2100 | |
Max. torque(N.m/rpm) | 1460/1100-1600 | |
Cylinder bore ×Stroke(mm) | 120×145 | |
Displacement(ml) | 9839 | |
Type of fuel | Diesel | |
Compression ratio | 17.5:1 | |

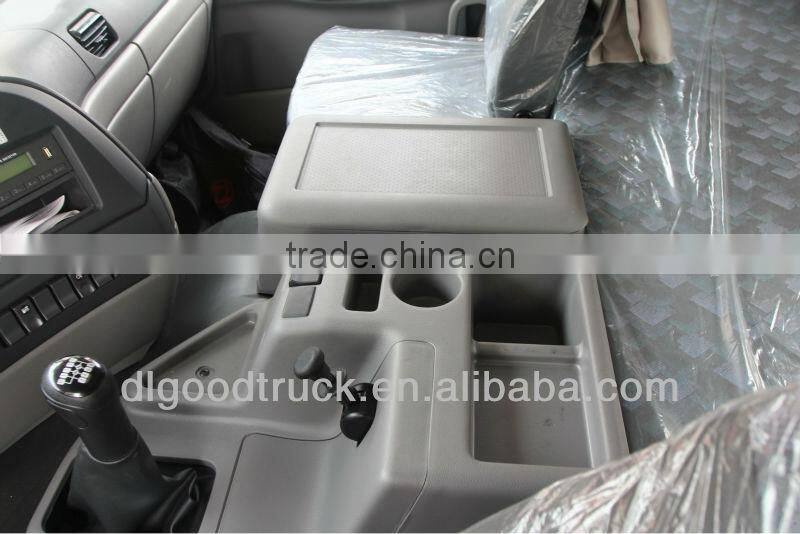

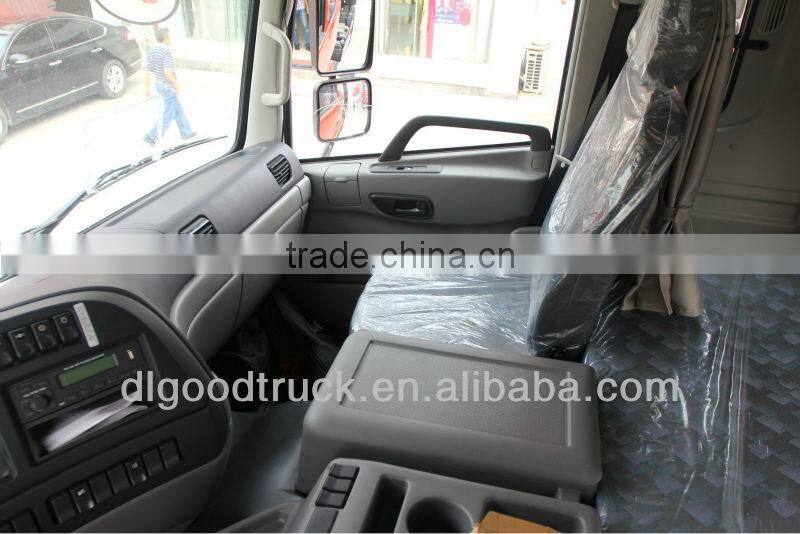

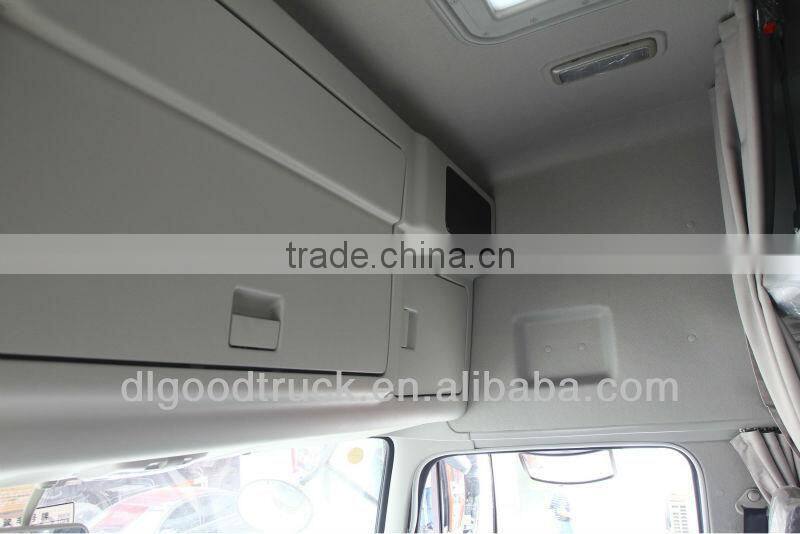

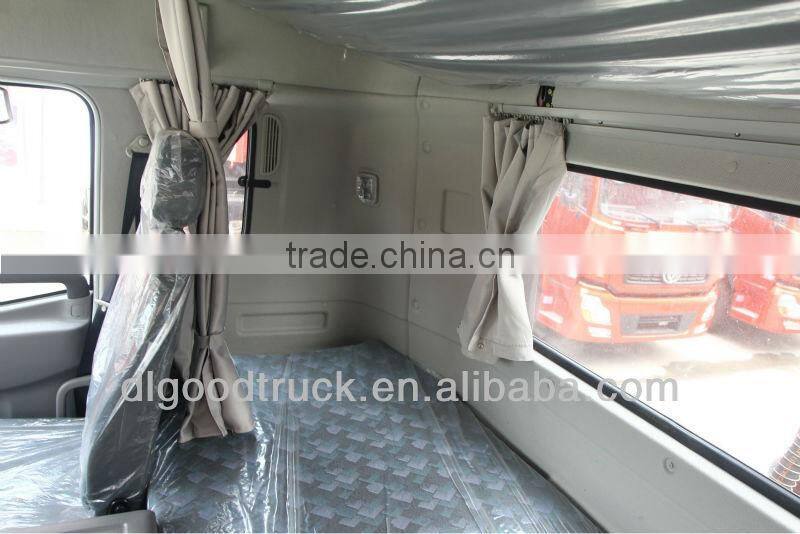

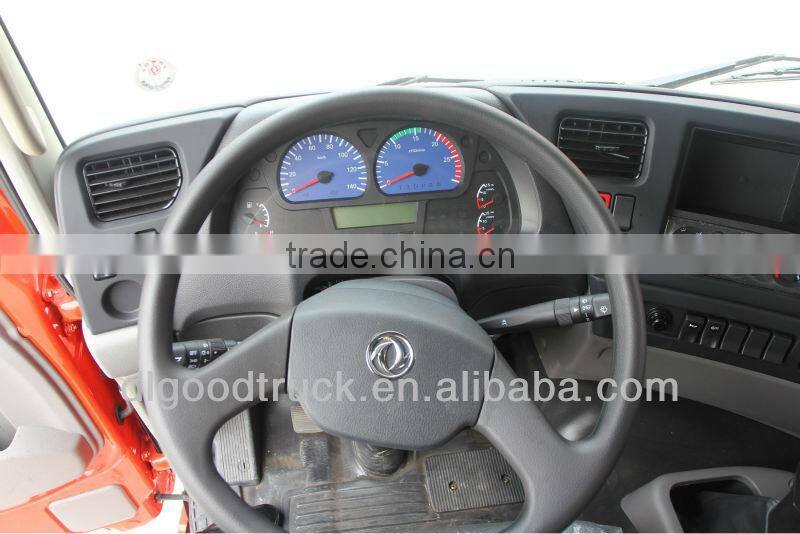

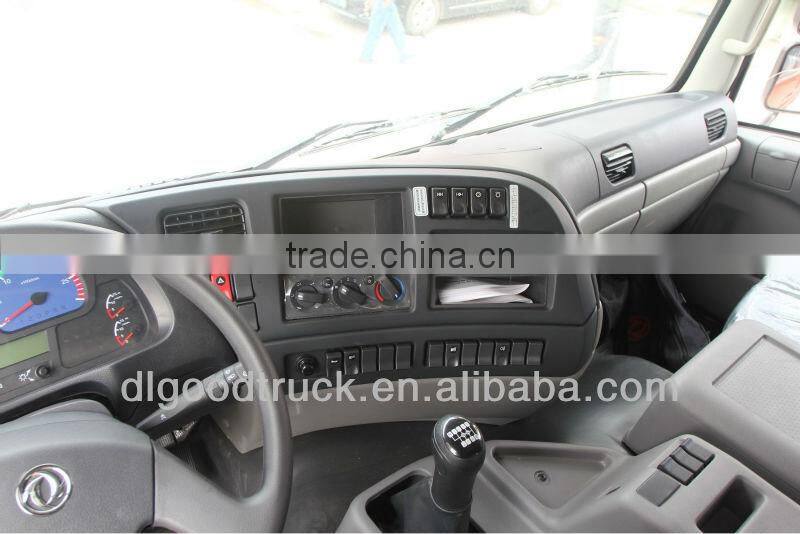

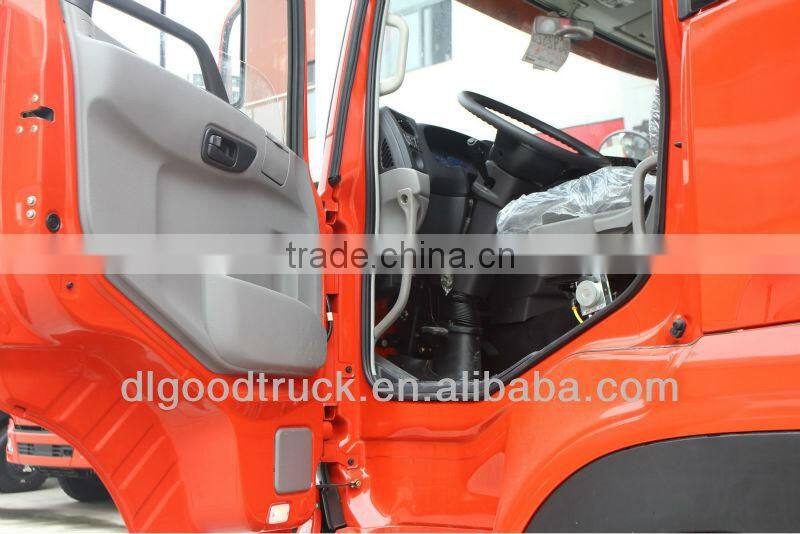

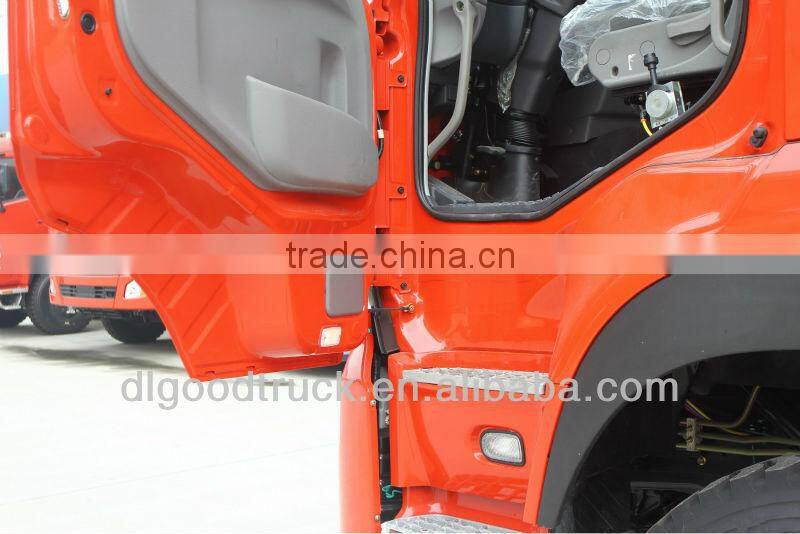

Cabin | D310-S1 | 1 berth |
Capacity | 3 persons | |

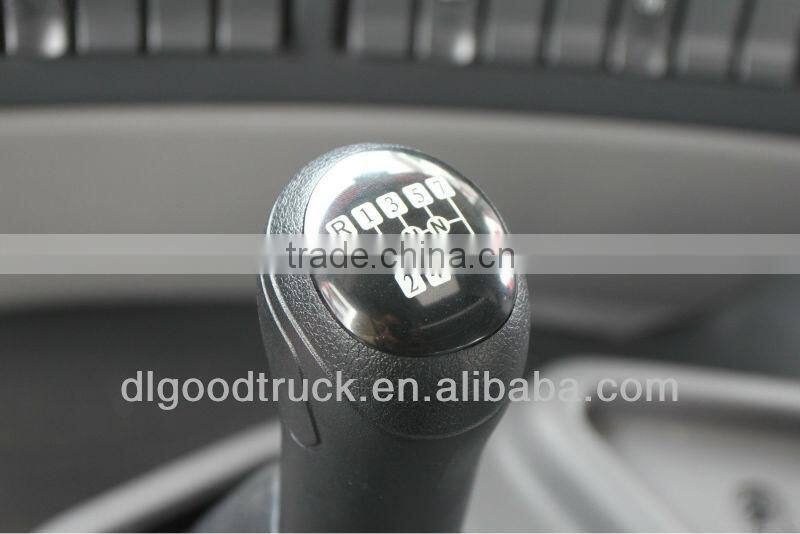

Gearbox | Type | FAST 8 forward gears |
Max. torque(N.m) | 1200-1600 | |
Clutch | Φ430mm | Hydraulic control with air booster |
Frame Height×Width× Thickness(mm) | 300×90×(8+8) | |
Frame width 940 (front ) , Frame width 800 ( rear ) | ||

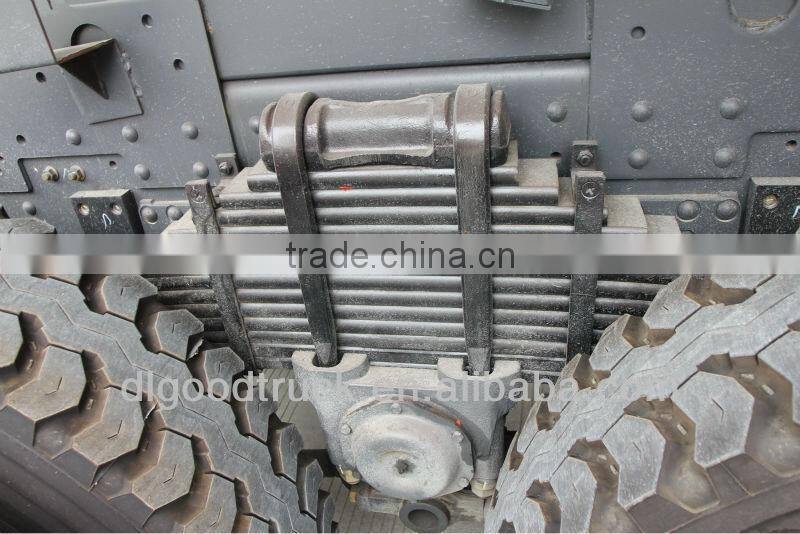

No. of Spring leaf spring | 10/10/13 | |
Tyre | Size | 12.00R20 |
Air conditioner | Provided | |
Dimensions | Overall dimension (mm) | 11740×2600×3700 |
Inner dimension (mm) | 8000×2300×1500 | |
Wheel base (mm) | 1950+4250+1350 | |
Front/Rear tread(mm) | 2040/2040/1850/1850 | |
App./Dep. angel (°) | 30/34 | |
Min. Ground clearance(mm) | 300 | |
Performance | Max. speed(km/h) | 85 |
Max. Grade ability(%) | 40 | |
Min. turning diameter(m) | 23.5 | |
Fuel Consumption/100km | 35 | |
Mass | Max Payload (kg) | 30,400 |
Curb weight(kg) | 11,980 | |
G.V.W (kg) | 42,380 | |
If need more information,please feel free to contact me.
Welcome to visit our company in China!
