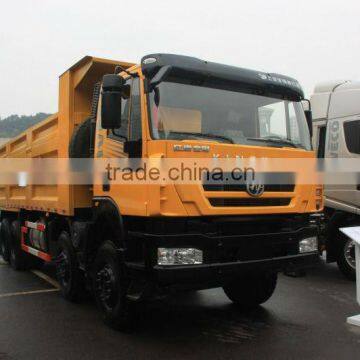

IVECO Hongyan 8x4 Dump Truck 340HP

FOB Price

US$ 50,000 - 57,000 / Unit

1 Unit(Min. Order)

Port Any port of China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	8x4	Capacity (Load)	11 - 20t
Horsepower	251 - 350hp	Condition	New
Transmission Type	Manual	Emission Standard	Euro 4
Fuel Type	Diesel
Gross Vehicle Weight	31000	Place of Origin	Hubei, China
Brand Name	IVECO	Model Number	CQ3314HTG366
Dimensions (L x W x H) (mm)	9985,10020,10285,10345x2500x3510,3350

Product Description

Specifications

1. IVECO technology made in china
2. IVECO FIAT CURSOR engine
3. Comfortable, Safe, Reliable ,Economic ,Competive price

IVECO Hongyan 8x4 dump truck 340HP

Type		CQ3314HTG366
Drive type		8×4
Weight	GVW (kg)	31000
	Kerb mass (kg)	15070
	Rated load(kg)	15800
	Actual pay load (kg)	30000-50000
Dimensions	Overall Dimension(L×W×H) (mm):	9985,10020,10285,10345×2500×3510,3350
	Cargo body size (L×W×H)(mm)	7200,7400,7600×2300×1080,1100 18m³-26m³
	Front / Rear overhang (Chassis)	1435/1800,1435/1835,1435/2100,1435/2160
	Wheel base(mm)	1800+3600+1350
	Track width(mm)	2006/2006/1850/1850
Performance	Max.speed (km/h)	80
Performance	Approach / Departure angle (°)	25/15,27/15
Engine	Brand	CURSOR 9 (Originated from Fiat leading technology ,Good performance: low rev., big torque;
	Brand	Less fuel: less 5% than the like; Low noise: 3 db less than the like; Low cost: less 10% accessories than the like, max. 60,000 km engine oil replacement ; mature &reliability: over 1 million users in Europe. )
	Model	F2CE0681B*B052
	Model	(C9 380)
	Power(kw/HP)	280kw/340HP
	Max.Torque (N.m )/rpm	1500Nm
	Displacement (L)	8.7
	Fuel Injection	Electronically Controlled High Pressure Common Rail System
	Emmission Standards	Euro 4
	Fuel Consumption	196g/KW.h
	Option	C9 340
Transmission	Brand	FAST (Fuller technology full synchronizer, Low fault rate, easy gear changing, low fuel )
	Model	12JSD180T
	Control type	Manual
	Gear Shift	12 forward and 2 reverse speeds
	Option	12JS160T
Clutch	Type	Single Plate,Diaphragm-spring
	Diameter (mm)	φ430
	Action	Mechanical type,Hydraulic and pneumatic operation
Steering	Type	Rotary Valve Steering
Steering	Model	ZF8098 German hydraulic steering with power assistance
Chassis	Type	865×317×(8+8)
Axles	Brand	HONGYAN
	Front axle	9000kg
	Rear axle	13000kg(each) Double reduction driving cast steel axle withinter-wheel differential and differential lock.
	Ratio	4.8/5.73
Tyres	Type (Standard)	12.00R20
Tyres	Option	12.00-20/11.00-20/11.00R20/12R22.5
Fueltank	Tank capacity (L)	400
Fueltank	Material	Aluminum magnesium alloy
Cab	Type	GENLYON (Long cab with low roof, made by 0.8-1.5mm thick sheet, overall stamping & precise welding, 80% double face galv. sheet. High safety, Firm structure, Strong anti-bumping, Lasting anti-erosion, High used car price)

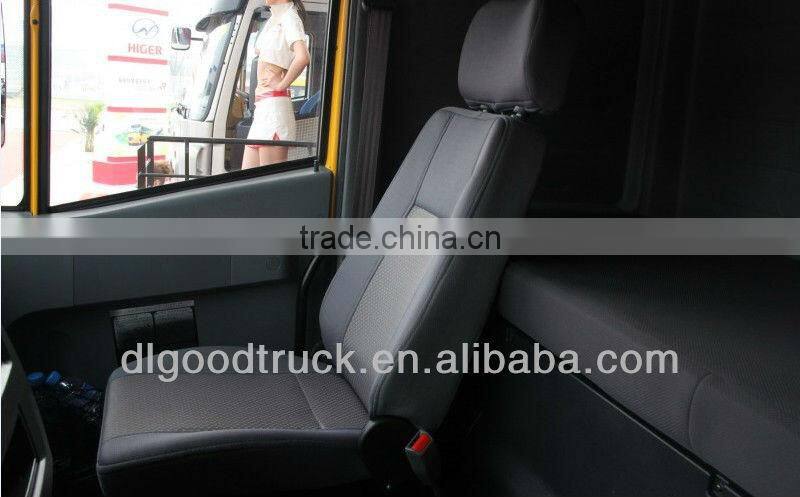

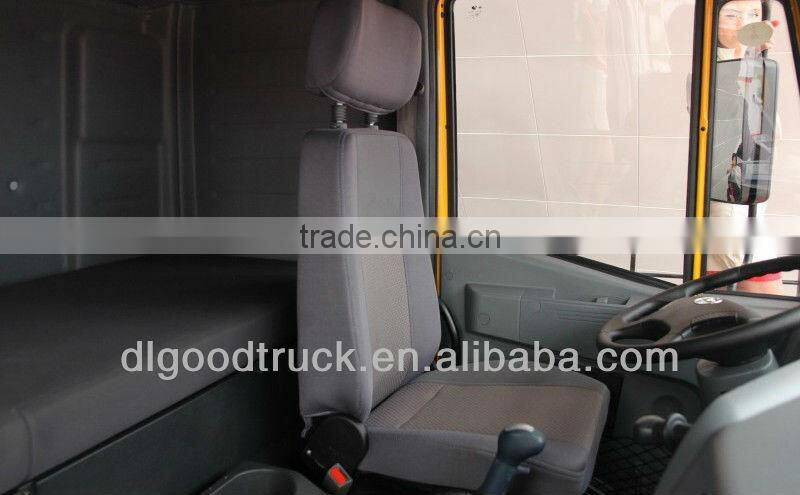

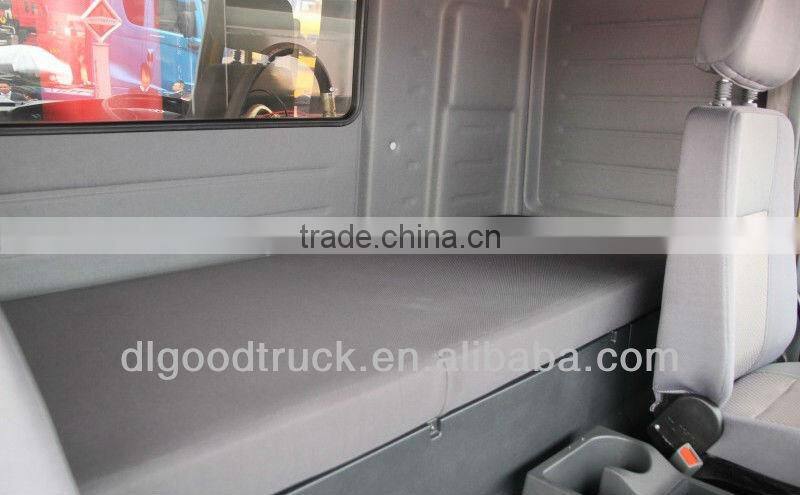

	Equipments	Can-Bus ,A/C,Electric windows,One rear window,Mechanical clerestory, Mechanica suspension cab,Mechanical suspension seat with seatbelts,One sleeping bed,Hydraulic reversal cab,with USB,can play radio with MP3 format
	Option	Electricity reversal cab,Electricity heated rear-view mirror,Air suspension driver seat with handle and seatbelts,4 Point air suspension

If need more information ,please feel free to contact me.

Welcome to visit our company in China!
