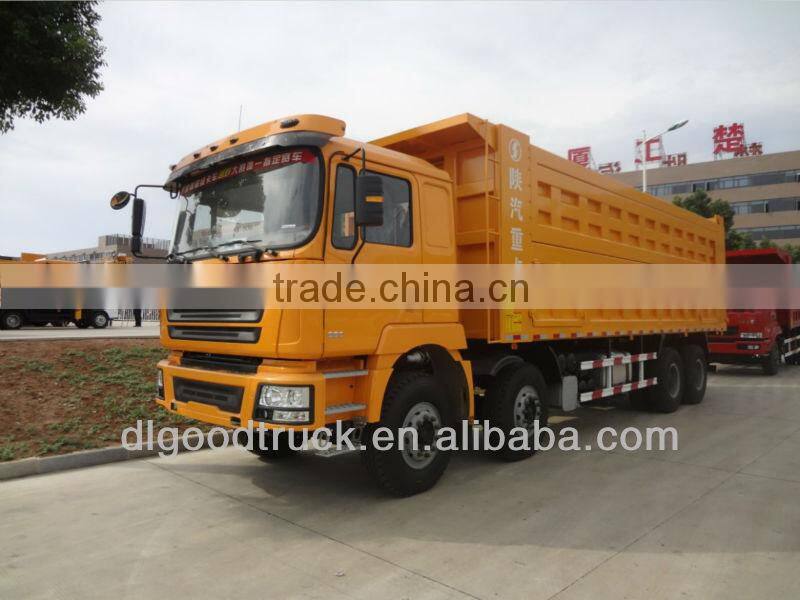

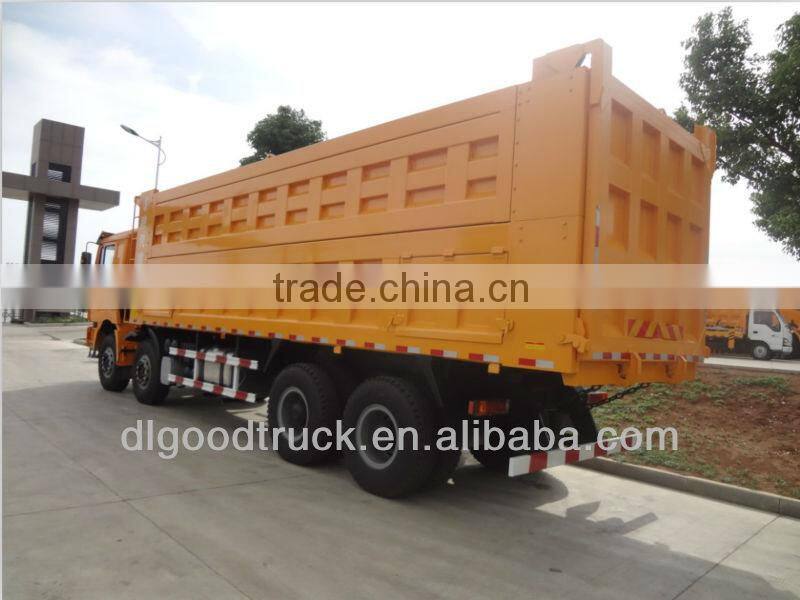

SHACMAN F3000 Dump Truck 340HP

Chassis model

SX3315DR306

Drive type

8×4

Weight

Curb weight (kg)

14800

GVW (kg)

31000

Dimensions

Overall dimension(mm)

9425x2490x3450

Box dimension(mm)

6500×2300×1200

Thickness of box

Bottom 8mm,Side 6mm

Front / Rear overhang (mm)

1525/1550

Wheel base(mm)

1800+3000+1350

Track width(mm)

1939/1850

Performance

Max.speed (km/h)

82

Approach / Departure angle (°)

28/20

Engine

Brand

WEI CHAI

Model

WP10.340E32

Power

250kw/340HP

Max.torque

1250N.m

Displacement

9726ml

Emission level

Euro 3

Description

6-in-line,4 strokes,water cooled,turbo charged,

intercooled,direct injection diesel engine

Transmission

Brand

FAST

Model

10JSD140

Description

Manual, 10 forward gears, 1 reverse gear

Clutch

Type

Spring plate,diaphragm spring

Diameter (mm)

φ430

Description

Mechanical type,hydraulic and pneumatic operation

Brake system

Type

Drum

Service brake

With dual-circuit compressed air brake

Park brake

Power spring brake acting on rear wheel

Auxiliary brake

WEVB

Option

ABS

Steering gear

Type

Integral circulating ball power steering

Option

ZF8098

Chassis

Type

Ladder structure with parallel straight

Dimensions (mm)

300×80×(8+7)

Suspension

Front Suspension

Longitudinal leaf spring

Rear Suspension

Inverted leaf spring stabilizator suspension

Axles

Brand

HANDE

Front axle

7500kg MAN

Rear axle

16000kg(each other) MAN Double reduction driving axle

with inter-wheel differential and differential lock.

Final ratio

5.92

Tyres

Type (Standard)

12.00R20

Option

11.00R20

Quantity

12+1 (spare)

Fuel tank

Tank capacity (L)

300

Material

Metal

Electrics

Type

24V

Starter

5.58kw(24V)

Generator

1.54kw(28V 55A)

Battery

2×135Ah

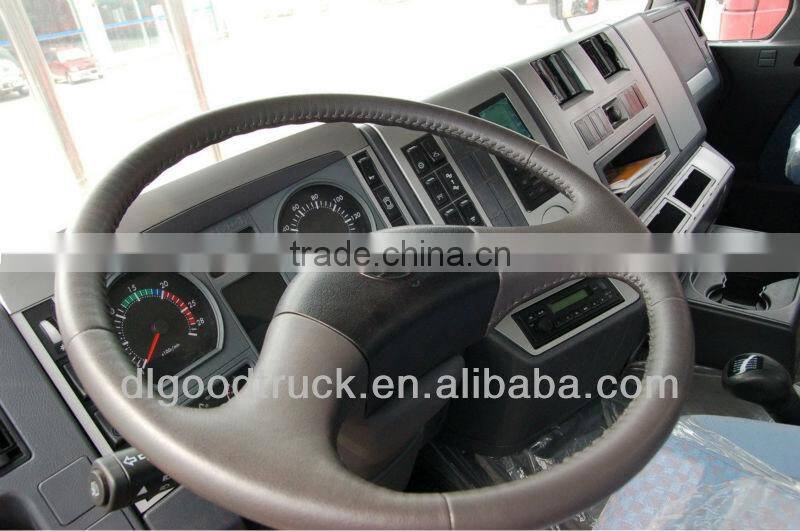

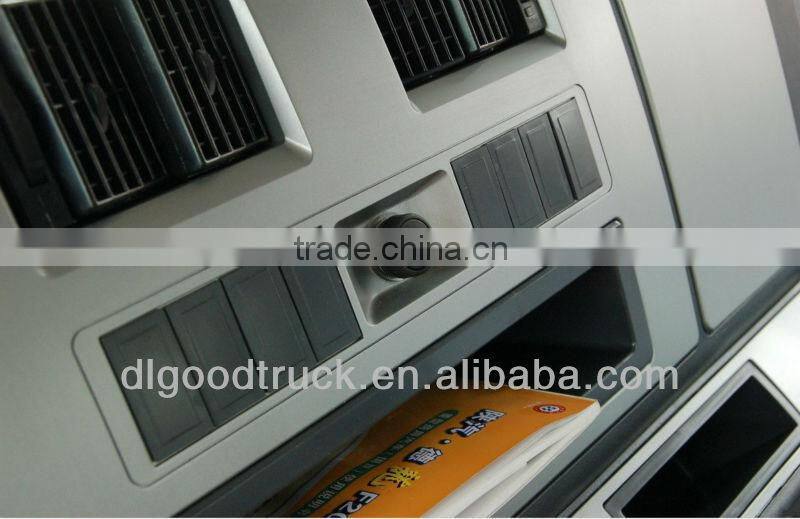

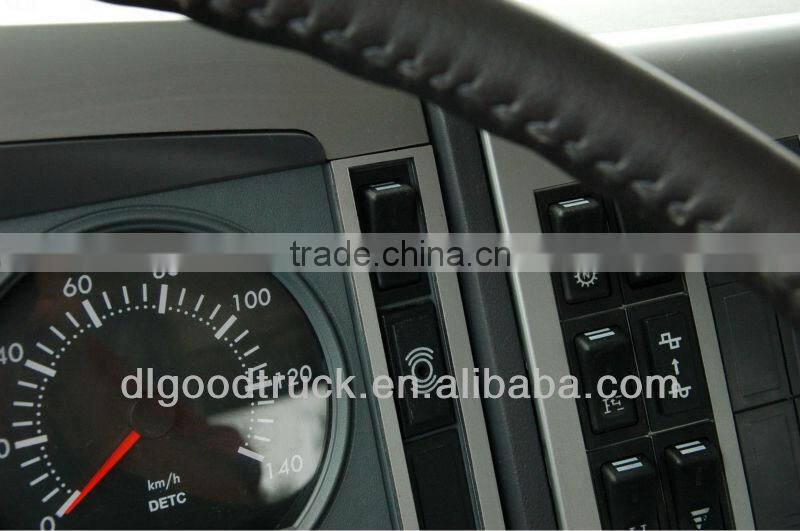

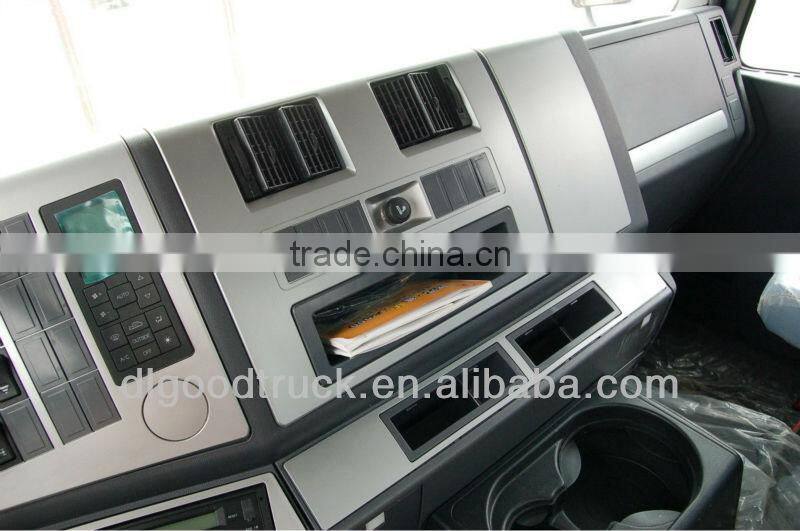

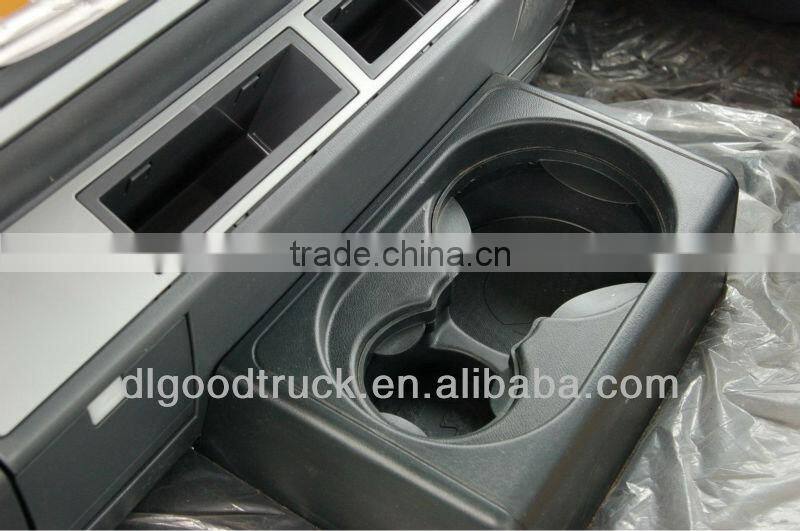

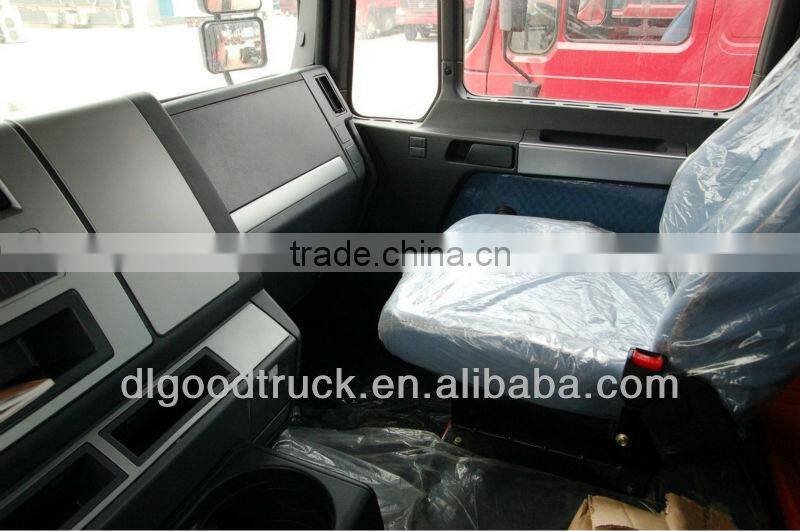

Cab

Type

MAN F3000, Mid-lengthened flat roof

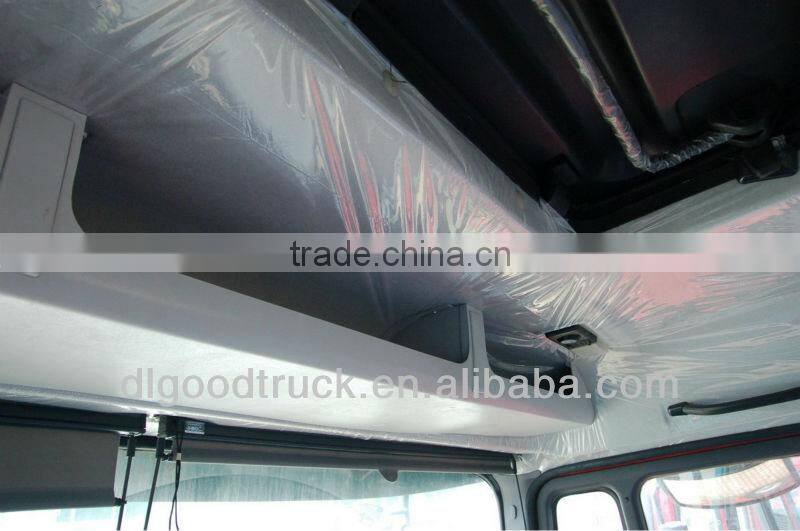

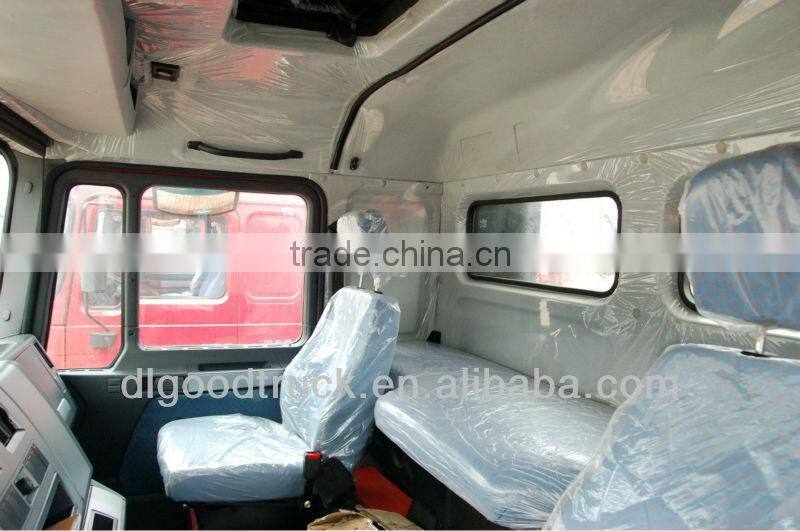

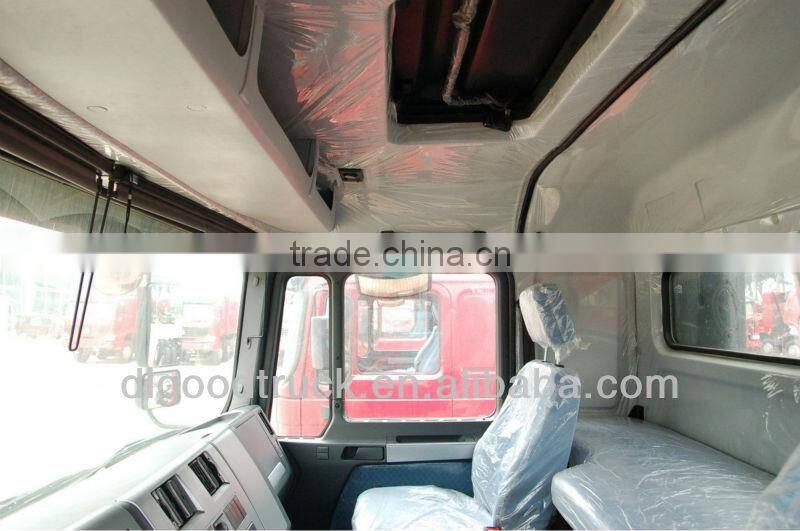

Equipments

2 rear window,mechanical clerestory,
hydraulic suspension cab,hydraulic chair with seatbelts,

one sleeping bed,hydraulic reversal cab,with USB,

can play radio with MP3 format

Option

Electric windows,electricity heated rear-view mirror,CD,

Tachograph;2 point air suspension,A/C,air suspension

 driver seat with handle and

seatbelts,electricity reversal cab

Hydraulic system

Type

Front lift

Lifting cylinder

Chinese famous brand,Hyva optional
