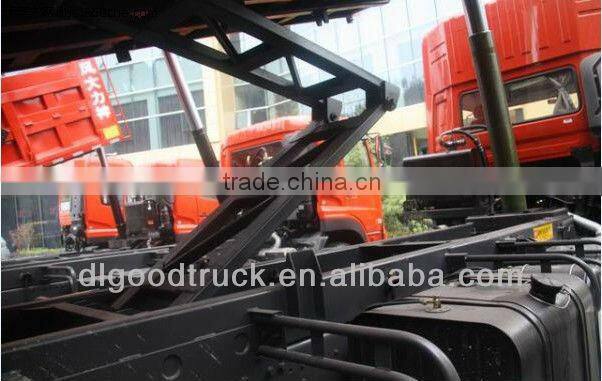

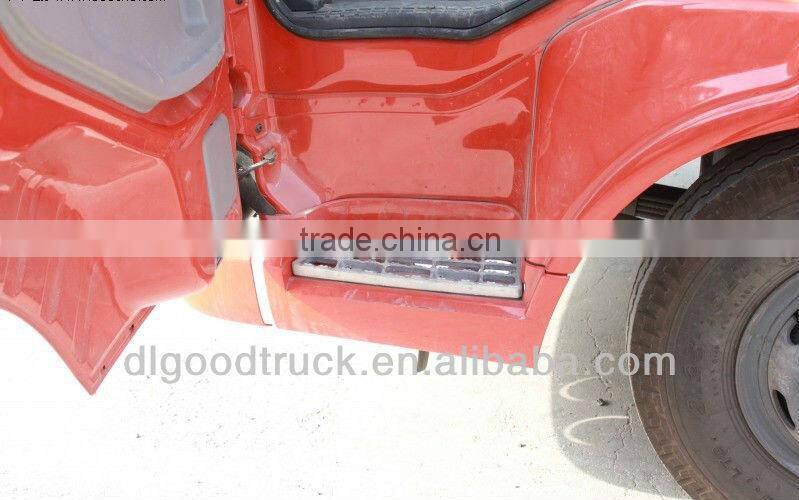

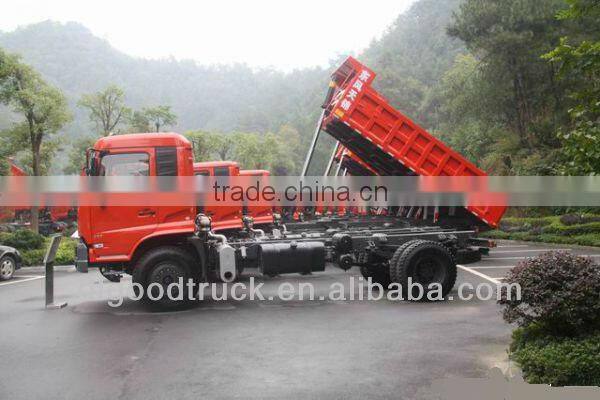

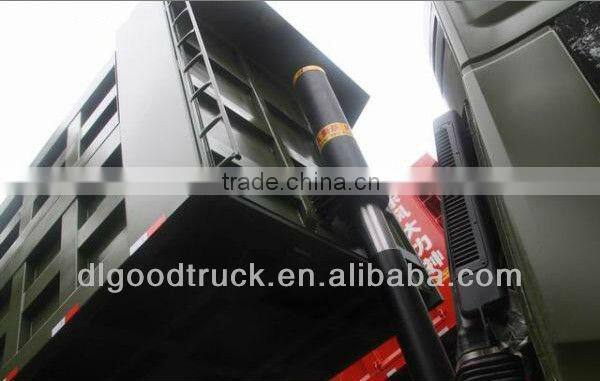

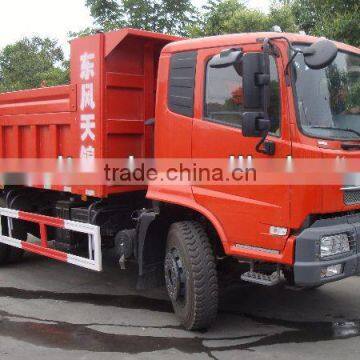

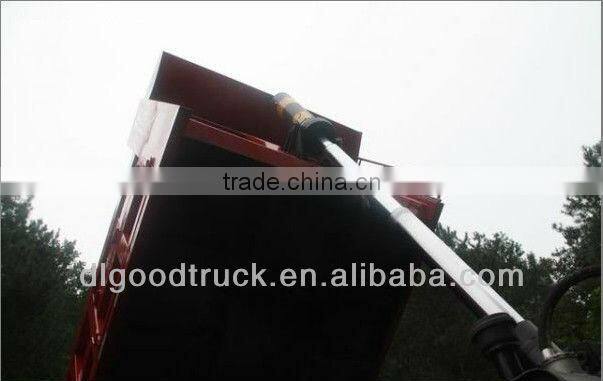

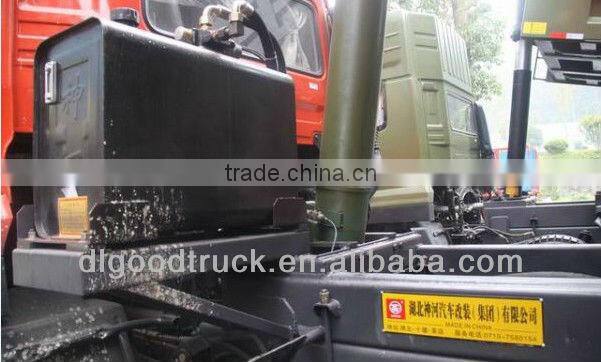

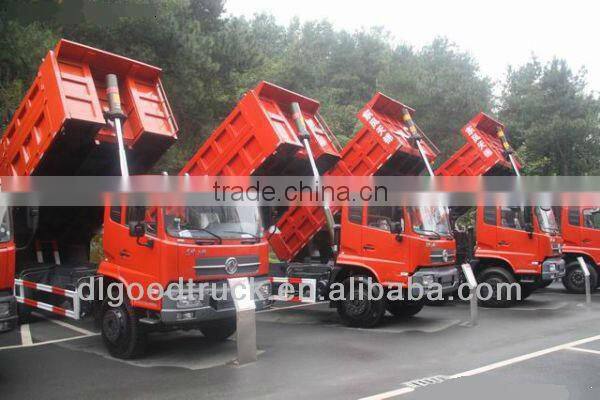

Dongfeng 4x2 Dump Truck With Engine B210 33
- Any port of China
- T/T Credit Card
You May Like
Product Details
| Drive Wheel | 4x2 | Capacity (Load) | 1 - 10t | |
| Horsepower | 150 - 250hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Diesel | Engine Capacity | 6 - 8L | |
| Gross Vehicle Weight | 11920 | Place of Origin | Hubei, China | |
| Brand Name | Dongfeng | Model Number | DFL3120B1 | |
| Dimensions (L x W x H) (mm) | 8000x2500x2960 |
Product Description
Specifications
1.Fashion design2.Dongfeng 4x2 dump truck with engine B210 33
3.Competitive Price
4.CCC, ISO9001
1.Fashion design
2.Dongfeng 4x2 dump truck with engine B210 33
3.Competitive Price
4.CCC, ISO9001
Main parameters | ||||
Gross weight (kg) | 11920 | |||
Loading weight(kg) | 4990 | Overall dimensions | 8000×2500×2960 | |
Curb weight(kg) | 6735 | Cargo Dimension | 5400×2300×800 | |
Allowable passengers in cab | 3 | |||
Approach/Departure Angle(°) | 25/20 | Front / rear suspension(mm) | 1450/2050 | |
Number of axles | 2 | Wheelbase (mm) | 4500 | |
Axle-load(Kg) | 3970/7950 | Max speed(km/h) | 90 | |
Chassis parameters | ||||
Chassis model | DFL3120B1 | |||
Brand | Dongfeng | Manufacturer | Dongfeng Motors.Co.,Ltd | |
Overall dimensions | 7270×2500×2780 | Tire number | 6 | |
Approach/Departure Angle(°) | 25/30 | Tire specification | 10.00-20 | |
Number of Spring leafs | 8/10+8 | Front tread(mm) | 1920 | |
Fuel type | diesel | Rear tread(mm) | 1860 | |
Emission standard | Euro 3 | |||
Engine model | Manufacturer | Displacement(ml) | Power(kw) | |
EQD210-31 | Dongfeng Motors.Co.,Ltd | 6234 | 155 | |
B190 33 | Dongfeng Engine Co.Ltd | 5900 | 140 | |
B210 33 | Dongfeng Engine Co.Ltd | 5900 | 155 | |
YC6J200-33 | Guangxi Yuchai Machinery Co.,Ltd | 6494 | 147 | |
EQD210-30 | Dongfeng Motors.Co.,Ltd | 6234 | 155 | |
YC6J210-31 | Guangxi Yuchai Machinery Co.,Ltd | 6494 | 155 | |
YC6J220-31 | Guangxi Yuchai Machinery Co.,Ltd | 6500 | 162 | |
Gear box | DC7J100TC 7 forwards+1 reverse | |||
Clutch | Φ395mm | |||
Fuel tank(L) | 160L | |||
Tire | 10.00-20 bias tire | |||
Capacity | 9.9CBM | |||
Material | Cold rolling steel plate | |||
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
....
