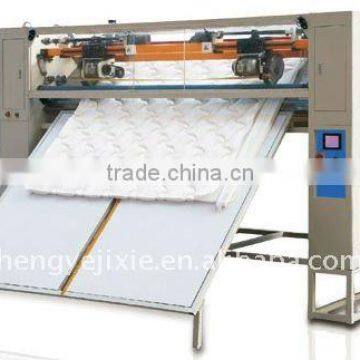

Panel Cutter Machine

Place of Origin	Guangdong, China		Brand Name	HENGYE MACHINERY (HY)(HENGYE)
Model Number	HY-QG-3

Specifications

Purpose: It is used to crosscut ,slitting and edge trimming the quilted fabric .It can also run alone.





Detail Information:



• 5.6''Panasonic touch-screen MMI, large screen and easy to operate.
• CE certificate for all the electrical parts used, which greatly guarantees the long life of the machine.
• Slittering blade equipped with safety protection cover, which further improved the security performance of the machine.
• Electric controlling for side blade and pneumatic sharpening device, which humanized the operation.
• Cross cut in one time, which shorten the time for round-way movement of crosscut blade.
• With thin material detecting devices, sound effects even for processing margin trim of 5mm thickness materials.
• Rollers adopted with the pneumatic tensioning device, material rolling will be much quickly and leveling off.
• Feed-in top Snubber roller adopt toothed synchronous material feeding technology, then the pressure will be even , and feeding will be leveling off.
• The length detecting sensor can be quickly and accurately adjusted through the manual wheel. It is very suitable for those customers who frequently change the length of tailoring.
• Box-shape machine body, advanced design, precise cutting, higher efficiency.

Technical Parameter:

Range The max X dimension The min X dimension Edge trim 2400mm 1050mm Slitters 2450mm 40mm Range The max Y dimension The min Y dimension Cross cut 2500mm 800mm Thickness 3-80 speed 7.5(m/min) power 2/kw prwer supply 380v/50hz 220v/60hz machine dimension(LxWxH) 3750x1330x2365 weight 1500kg operating air preasure 0.4-0.8mpa
