computerized panel cutter machine

Condition	New		Place of Origin	China
Brand Name	HengYe		Model Number	HY-QG-3
Voltage	380V/50HZ 220V/60HZ		Power(W)	2KW
Dimension(L*W*H)	3750*1330*2365		Weight	1500KG
Certification	CE		Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

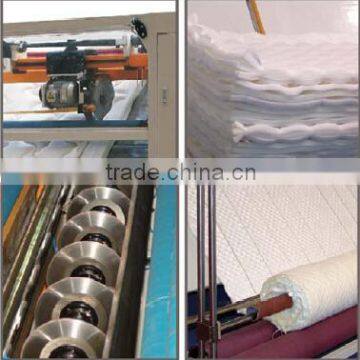

It is used to crosscut, slitting and edge trimming the quilted fabric, and usually works in tandem with the quilting machine.

Specifications

It is used to crosscut, slitting and edge trimming the quilted fabric, and usually works in tandem with the quilting machine.

   1. 5.6'' Panasonic touch screen, large screen for ese of operation

   2. CE certificate for all the electrical parts used(guarantees the long life of the machine)

   3. Slitting blades equipped with safety protection covers

   4. Electric control for length cutting blade and pneumatic sharpening device

   5. Cross cut in each direction which shortens the time for round trip movement of crosscut blade

   6. With thin material detecting devices, sound effects even for processing margin trim of 5mm thickness materials

   7. Roller pressure is sby pneumatic lift cylinder

   8. Feed-in top with synchronous material feeding technology. Then the pressure will be even, and feeding will be leveling

off.

   9. The length detecting sensor can be quickly and accuratel adjusted by a manual wheel. Very suitable for customers who

frequently change the length of cut.

   10. Fabricated steel frame machine, advanced design for precise cross and length cutting with high effciency.
