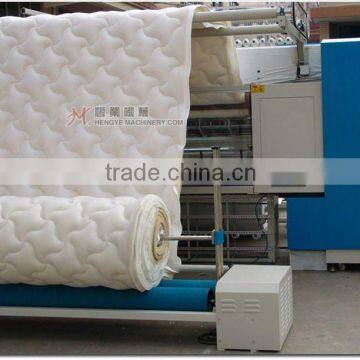

Computerized Chain Stitch Multi-functional Quilting Machine

Place of Origin	Guangdong, China		Brand Name	HENGYE MACHINERY (HY)(HENGYE)
Model Number	HY-W-DGN ---- 2011NEW

Specifications

Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.

Detail information:



l • Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle quilting .

•With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.

•Adopting Chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.

• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material

• Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment

• CE Certificate

•CNC precision control system, no need to adjust the press plate’s position when the thickness of quilting material varies

• Strong functions of pattern-combining and Tack & Jump quilting to  enable you to quilt different patterns in same row of the mattresses

• Fault detection function for ease of determining the running state of the machine at any given tim



Parameter Unit ( mm )

Dimension(L×W×H)                          4820×1650×2060

Quilting width                                      2450

Space between needle rows          76.2,76.2,152.4(6”)

Space between needles                  25.4

X-axis movement displacement     535

Thickness of quilting                         ≤60(for all patterns)

Stitch length                                        3~8

Speed of operation                           60~230(m/hour)

Model of needle                                 24/180 23/160 22/140 21/130

Quilting speed                                   200~980(RPM)

Total power required                        7KW

Voltage                                                380V/50HZ    220V/60HZ

Gross weight                                     5000kg
