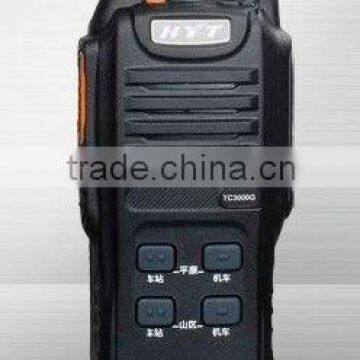

[Hot Sale] Walkie talkie, Two Way Radio HYT TC-3000G original Cheap High Quality Professional

[Hot Sale] High Quality Professional HYT    TC-3000G Two Way Radio

Specifications:

Basic information

Frequency range 400-470 MHz

Channel number 16

Channel spacing of 25 / 12.5 KHz

A voltage of 7.4 V

The standard battery of 1700 mAh ( lithium battery )

Cell average working time ( 5-5-90 duty cycle ) 1700mAh standard lithium battery 1500mAh optional NiMH batteries for more than 12 hours more than 10 hours

Frequency stability of + 2.5 ppm

Operating temperature range - 25 degrees to + 60 degrees C.

Antenna impedance 50 ohm

Size ( x width x depth ( high ) with a standard battery, without antenna ) 127 x 54 x 36 mm

Weight ( with antenna and a standard battery ) 340 G

Seal has been rain test ( IP54 )

Shock and vibration conforms to the American military standard MIL-STD 810 C / D / E / F

Dust and humidity conforms to the American military standard MIL-STD 810 C / D / E / F

Transmission part

The output power of 5W / 3W / 1W

Modulation of 16K than F3E / 8K than F3E

Clutter and harmonic - 36dBm < 1GHz 30dBm > 1GHz

FM > = 45 / 40dB noise

Audio distortion is less than or equal to 5%

Modulation limiting < 5KHz ( 25KHz ) = 2.5KHz ( 12.5KHz )

Audio response = + 1 - 3dB ( 6dB / OCT pre-emphasis, 300-3000Hz )

Train dispatching signaling frequency offset 0.5 ~ 0.575KHz

Receiving part

Sensitivity of 0.25 / 0.28 V

Adjacent channel selectivity of 70 / 60 dB

65 / 60 dB intermodulation

Spurious response inhibition of 70 dB

Signal to noise ratio of 45 / 40 dB

Rated audio-frequency output power 0.8W

Rated audio distortion is less than or equal to 5%

Scanning speed 100ms

Conduction and radiation - 57dBm < 1GHz 47dBm > 1GHz

Accessories
