Home > Products > KENWOOD Radio > Kenwood TM-471A 440 MHz 60 watts Mobile Radio Car Radio FM transceiver

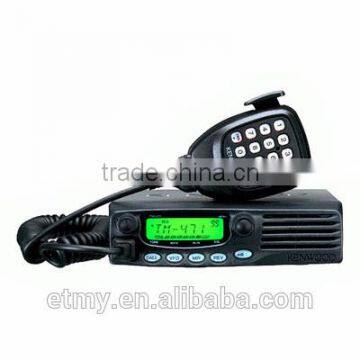

Kenwood TM-471A 440 MHz 60 watts Mobile Radio Car Radio FM transceiver
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
You May Like
-
Kenwood TM-271A 144mhz 2 meter handheld radios
-
Kenwood TK3000 / TK2000 / U100 Portable Radio Handheld Type handheld walkie talkie
-
10 meter walkie talkie uhf fm portable kenwood TK3207G radio communication
-
kenwood tk90 ham radio hf transceiver
-
Kenwood TK-2207 / 3207 VHF / UHF FM Portable Radios woki toki
-
Kenwood TK-2107 VHF 136-174 Handheld Walky Talky Two Way Radio Quality Choice
Product Details
Place of Origin | Japan | Brand Name | Kenwood | |
Model Number | TM-471A | Type | Vehicle Mouted | |
Dimensions | 160 x 43 x 137 mm | Frequency Range | UHF400-430/440-480MHz | |
Storage Channel | 99 | Talk Range | 5-10km |
Product Description
Kenwood TM-471A 440 MHz 60 watts Mobile Radio Car Radio FM transceiver
The Kenwood TM-471A is similar to the TM-271A but covers 440 MHz instead of 2 meters.
- HIGH RF POWER OUTPUT (60W)
- US MIL-STD 810 C/D/E/F & EUROPEfS E-MARK
- ALPHANUMERIC LCD AND ILLUMINATED KEYPAD
- DTMF MICROPHONE
- HIGH-QUALITY FRONT SPEAKER
- MULTIPLE SCAN FUNCTIONS
- 200 MEMORY CHANNELS PLUS 1 CALL-CHANNEL
- MEMORY NAME FUNCTION
- CTCSS & DCS ENCODER/DECODER
- HIGH FREQUENCY STABILITY
- 1200/9600BPS HIGH-SPEED DATA COMMUNICATIONS
High Rf Power Output (60w)
Despite its size, the TM-271A can provide an impressive 60 watts of RF power, with a choice of High/Low output.
Weather Alert/Rx (US only)
This transceiver is capable of receiving the NOAA Weather Band and responding to emergency transmissions such as storm warnings by emitting an audible alert tone.
Dtmf Microphone
The TM-271A is supplied with a DTMF microphone as standard.
High-Quanlity Front Speaker
The large oval (2.28" x 1.38") speaker mounted in the front panel provides excellent clarity.
Memory Name Function
At-a-glance identification of 100 memory channels is possible with up to 6 alphanumeric characters per channel. Up to 200 channels are available if the memory name function is not used.
Mulitiple Scan Functions
For maximum versatility, the TM-271A offers several scan functions, including VFO (band) scan, all memory scan, program scan, memory group scan (group scan), call scan, tone/CTCSS scan, DCS scan and priority scan, which checks a priority channel every 3 seconds. TO (Time-operated), CO (carrier-operated) and seek scan resume modes are also provided.
Ctcss & Dcs Encoder/ Decoder
The built-in CTCSS and DCS encoder/decoder enables operation of the 42 CTCSS subtone frequencies and 104 DCS subtone codes.
Specification:
Model | TM-271/TM-471 |
Frequency range | 136-174MHz/400-430/440-480MHz |
Mode | F3E(FM) |
Antenna Impedance | 50 ohm |
Operating Temperature | -25°C---+60°C |
Power Voltage | 13.8V DC ±15%(11.7-15.8V) |
Dimension | 160*43*137mm |
Weight | 1.2Kg |
Transmitter | |
Power output | High 60W/40W, Low 25W |
Frequency Stability | ±2.5ppm |
Spurious Emissions | better than -60dB |
FM noise | ≤-40dB |
Audio distortion | ≤3% |
Max. Frequency Deviation | ≤±5KHz(wide) ≤±2.5KHz(narrow) |
Microphone Impedance | 600ohm |
Receiver | |
Frequency Stability | ±2.5ppm |
Sensitivity | Better than 0.18uV(wide)/0.22uV(narrow) |
Modulated bandwidth | ≥ ±7KHz(wide)/3.5Khz(narrow) |
Adjacent channel selectivity | ≥ 60dB |
Intermodulation Rejection | ≥65dB |
Spurious response rejection | ≥65dB |
Audio output power | 2W or Above |
Audio output Impedence | 8 ohm |
Each Set Package Contain:
1 x TM471/TM271 Mobile Radio
1 x Speaker Mic.
1 x Power Cable
1 x Installation Bracket
1 x Installation Kits (Screws .etc)
1 x User Manual
Optional Accessories:
- Mobile Radio Antenna Kit (Antenna + Magnet Base with Feeder Line)
- Power Supply (for Base Radio,110V/220V AC to DC13.8V)
