Home > Products > Butterfly Valve > High Quality Lug Type Aluminum Handle Butterfly Valve

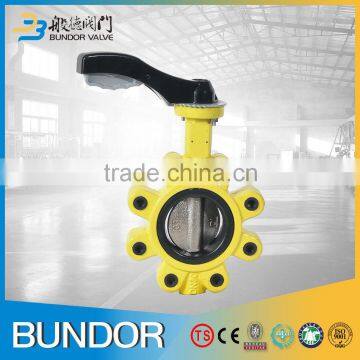

High Quality Lug Type Aluminum Handle Butterfly Valve
- Tianjin/Qingdao/Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Low Temperature | |
| Media | Water | Port Size | DN40-600mm | |
| Place of Origin | Tianjin, China | Model Number | butterfly valve | |
| Brand Name | BUNDOR | Application | General |
Product Description
Adoptive Standards:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Machine Parts
Name: Valve BODY
Brand: BUNDOR
Original: Tianjin
Material: Cast Iron, Ductile Iron, WCB , Stainless Steel
Type:Lug,Wafer,Flange
Name: Disc
Brand: BUNDOR
Original: Tianjin
Material:Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
Type:With-pin, One stem no-pin, Double stem no-pin
Machine Parts
Name: Stem
Brand: BUNDOR
Original: Tianjin
Material:SS416, SS304, SS316,45#
Name: Seat
Brand: BUNDOR
Original: Tianjin
Material:NBR, EPDM, VITON,PTFE
