Home > Products > Online UPS > 2KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS

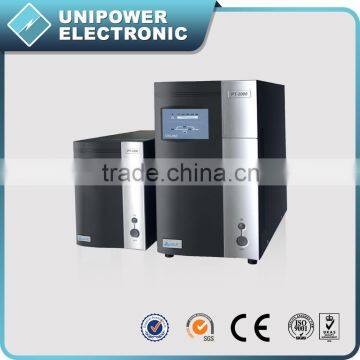

2KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
Negotiable
/ Unit
30 Units(Min.Order)
- 100000 Unit / Units per Month
- Sanshan
- T/T
You May Like
-
3000VA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
-
2KVA Rack / Tower Puresine Wave Online Extensible G-sensor LCD UPS
-
3KVA Rack / Tower Pure Sine Wave Online Extensible UPS G-sensor LCD
-
3KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
-
6KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
-
Ture Double-Conversion High Frequency Online 10 Kva UPS Price
Product Details
| Place of Origin | Guangdong, China | Brand Name | SVC | |
| Model Number | PT-2KS | Phase | Single Phase | |
| Protection | Short Circuit | Weight | 32kgs | |
| Output Voltage | 110V:110±2%VAC/220V:220±2%VAC | Type | On-line | |
| Application | Other, PC, Work station, Small communication equipment. |
Product Description
2KVA Online High Frequency Pure Sine Wave 0 Transfer Time Generator Compatible UPS
Product Description
PT series online UPS, whose capacity ranges from 1KVA to 20KVA, provides load with better power environment, compared with interactive or offline UPS. No matter take regulated output range, frequency range, input noise filtering or zero transfer time from AC mode to battery mode into consideration, online UPS is always the best choise.
| Model | PT-1KS | PT-1KL | PT-2KS | PT-2KL | PT-3KS | PT-3KL |
| Rated power | 1KVA | 2KVA | 3KVA | |||
| INPUT | ||||||
| Voltage | 110V:80~138VAC/220V:110~300VAC | |||||
| Frequency | 110V:46~54Hz or 56~64Hz/220V:40~60Hz/Adjustable by software | |||||
| OUTPUT | ||||||
| Voltage | 110V:110±2%VAC/220V:220±2%VAC | |||||
| Frequency | 46~54Hz/Same as AC(AC mode) | |||||
| Wave form | 110V: 50 or 60±0.2Hz(DC mode)/220V:50±0.2Hz(DC mode) | |||||
| BATTERY | ||||||
| QTY. & capacity of battery | 12V/7.5AH*3pcs | ————— | 2V/7.5AH*8pcs | ————— | 12V/7.5AH*8pcs | ————— |
| Nominal DC input voltage | ————— | 36VDC | ————— | 96VDC | ————— | 96VDC |
| Transfer time | 0 ms | |||||
| Overload capability | 110%~150% for 30% seconds then transfer to bypass output, 150% above for 300 milliseconds. | |||||
| ENVIRONMENT | ||||||
| Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% | |||||
| PHYSITAL | ||||||
| (kg) / Net weight (kg) | 13.0 | 7.5 | 32 | 15 | 33 | 16 |
| (mm) / Unit dimention (mm) | 220(L)*145(W)*405(H)mm | 195(L)*330(W)*455(H)mm | ||||
| MANAGEMENT | ||||||
| Interface | 110V:USB+RS232 220V:RJ45/11+RS232, Intelling slot selectable. | |||||
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
