Ow No-Load Current House Electric Wind Solar Hybrid Inverters
- 100000 Unit / Units per Month
- Sanshan
- T/T
You May Like
-
LCD Display House Electric Wind Solar Hybrid Inverters For Sale
-
Home Use Pure Sine Wave Low Frequency Wind Solar Hybrid Inverters
-
Pure Sine Wave Solar Priority Low No-Load Current Used Inverters
-
Optional Charging Current 5A To 45A Solar Panels With Built In Inverters
-
Home Use Pure Sine Wave Low Frequency 24V 220V 3000W Inverters
-
Optional Charging Current 5A to 45A 24V 220V 3000W High Capacity Inverters
Product Details
Place of Origin | Guangdong, China | Brand Name | SVC | |
Model Number | EP Solar-3024 | Output Power | 1 - 200KW | |
Output Type | Other, sine wave form | Size | 468*224*212 | |
Weight | 22.8 | Input Voltage | 185~265VAC | |
Output Voltage | 220VAC/230VAC | Type | DC/AC Inverters | |
Output Frequency | 48~54Hz or 58~64Hz, Same as AC | Output Current | 45A (110V) or 21A (230V) |
Product Description

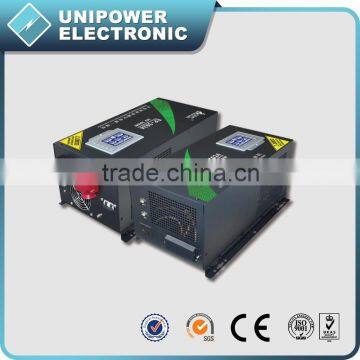

Ow No-Load Current House Electric Wind Solar Hybrid Inverters
EP Solar series inverter is efficient, secure and applicable for a variety of complex installation environment. Its no-load current is as low as 600mA, so it can transfer DC power of solar modules into AC power efficiently and it is widely applied in small terrestrial photovoltaic power plants, distributed grid-connected power systems, small off-grid photovoltaic systems and other fields.
Model | EP Solar-1012 | EP Solar-2024 | EP Solar-3024 | EP Solar-4048 | EP Solar-6048 |
Rated power | 1000W | 2000W | 3000W | 4000W | 6000W |
INPUT | |||||
Input voltage range | 185~265VAC | ||||
OUTPUT | |||||
Input voltage range | 220VAC/230VAC | ||||
Output frequency | Batt. Mode:50±0.3Hz AC mode:48~54Hz(50Hz) or 58~64Hz, Same as AC | ||||
Output wave form | Sine wave (Batt. mode) | ||||
Transfer time | 10ms(Typical) | ||||
PROTECTION | |||||
Overload protection | (100%<Load<120%)±10%:Auto shutdown in 2 mins;(120%<Load<140±10%;Auto shutdown in 60 Secs;(140%<Load)±10%:Auto shutdown in 20 Secs; | ||||
Output short circuit protection | Yes | ||||
Breaker | Input:15A/Output:10A | Input:30A / Output:15A | Input:35A / Output:20A | Input:40A / Output:30A | |
BATTERY | |||||
Rating charging current(Max.) | 45A | ||||
Nominal DC input voltage | 12V | 24V | 48V | ||
20V/40V | |||||
PHYSITAL | |||||
(kg) / Net weight (kg) | 22.8 | 27.6 | 32.4 | 38.2 | 44.5 |
(mm) / Unit dimention (mm) | 468(L)*224(W)*212(H)mm | 644(L)*224(W)*212(H)mm | |||
ENVIRONMENT | |||||
Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% |
Our Service
1.Samples
Samples are Available for Testing and Market Test.
2. Warranty of Unipower Products
Unipower provides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).
3. Guides and After-service Consultancy
Unipower Power Team will offer these guides below.
A. Need an Accessory?
B. Products Repair?
C. Power Problems to Solve?
D. Power Protection Solutions, etc.?
24 Hours After-service consultancy just for you and to make your problems to solve easily.
4. OEM Service
OEM service of Unipower is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 12 years.
We have 33 set of fully automatic SMT lines, 10 sets of automatic insertion equipments, ICT PCB testing equipments, ATE automatic testing center and aging workshop for all products. Monthly output of UPS series exceeds 200,000. We have been offering OEM service for over 12 years.
Why Choose Unipower ?
1. 13 years gold credit supplier on Alibaba
2. 13 years UPS and Power Inverter export experiences
3. 13 years UPS and Power Inverter manufacturer experiences
4. 13 years of high-level OEM Experience
5. 400 Employees
6. 16,000 square meters Factory Size (ters)
7. 200,000pcs Monthly Capacity
8. Export Percentage: 80%
9. Hi-tech Advanced R&D Team
10. Certifications--Applied with CE, ISO 9001, ISO14001 etc
11. Quality guarantee—warranty.
