Home > Products > Line interactive UPS > 600VA / 360W Line-interactive CPU USB RJ45/11 Pastic/Metal LCD / LED UPS

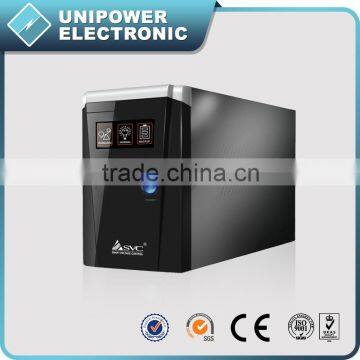

600VA / 360W Line-interactive CPU USB RJ45/11 Pastic/Metal LCD / LED UPS

FOB Price

Negotiable / Unit

30 Units(Min. Order)

Port Sanshan
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SVC
Model Number	V-600	Phase	Single Phase
Protection	Short Circuit	Weight	5.5kgs
Output Voltage	220v	Type	Line Interactive
Application	Other, PC, Work station, Small communication equipment.

Product Description

600VA / 360W Line-interactive CPU USB RJ45/11 Pastic/Metal LCD / LED UPS

Model	V-600	V-800	V-1000	V-1500	V-2000
Capacity	600VA/360W	800VA/480W	1000VA/600W	1500VA/900W	2000VA/1200W
INPUT
Input voltage	100/120VAC or 220/230/240VAC
Input voltage range	85~150VAC / 145~290VAC				165~275VAC
Frequency range	60/50Hz(Auto sensing)
OUTPUT
Output voltage	110/120VAC or 220/230/240VAC
Output voltage range	102~132VAC / 200~255VAC
Output frequency	60±0.5Hz or 50±0.5Hz(Batt. Mode)
Output wave form	PWM(Batt. Mode)
Transfer time	Typical 2-6ms, 10ms max
BATTERY
QTY.&capacity of battery	12V/7AH×1pc	12V/9AH×1pc	12V/7AH×2pcs	12V9AH×2pcs	12V/7AH×4pcs
Charging period	4-6 hours recover to 90% capacity
PROTECTION
Full protection	low voltage & overload & short circuit protetion
PHYSITAL
(kg) / Net weight (kg)	5.5	6	10.2	10.6	13.2
(mm) / Unit dimention (mm)	30585140	335118190			340110265
ENVIRONMENT
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
Noise level	Less than 40dB
MANAGEMENT
LCD or LED, RJ45/11 & USB	Optional

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
