Mini truck
Negotiable
/ Set
6 Sets(Min.Order)
- 1000 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Capacity (Load) | Other, 0.5t | |
| Drive Wheel | 4x2 | Horsepower | Other, < 150hp | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Petrol / Gasoline | |||
| Size | 3990.*1465*1890 | Place of Origin | China | |
| Model Number | CA1013 |
Product Description

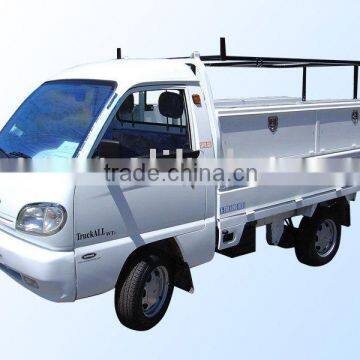

Mini truck
| Model | Registered model | CA1013A1 |
| Manufacturing code | CA1013A1 | |
| DIMENSIONS | Exterior dimensions mm | 3990X1465X1890 |
| Truck bed dimensions mm | 2485X1378X325 | |
| Wheel base mm | 2040 | |
| Treads(F/R) mm | 1215/1210 | |
| Ground clearance mm | 156 | |
| Angles(Approach/Departure) | 26°/20° | |
| Max. gradability % | 29 | |
| (mm) Overhanger(F/R) mm | 844/1106 | |
| Seating capacity persons | 2 | |
| WEIGHT | Curb vehicle weight kg | 800 |
| Gross vehicle weight kg | 1420 | |
| payload kg | 490 | |
| Weight distribution(loaded) F/R Kg | ||
| Weight distribution (unloaded) F/R Kg | ||
| ENGINE | Model | LJ465QE1 |
| Cylinders | L4,OHC EFI | |
| Bore×Stroke mm×mm | 65.5×72 | |
| DisplacementCapacity ml | 970 | |
| Compression ratio | 8.8 | |
| Max.power Kw/rpm | 35.5/5200 | |
| Max.torque N.m | 74/3000-3500 | |
| TRANSIMISSION | Transmission type | 5MT |
| gear ratio 1st | 3.505 | |
| gear ratio 2st | 2.043 | |
| gear ratio 3st | 1.383 | |
| gear ratio 4st | 1 | |
| gear ratio 5st | 0.806 | |
| Reverse | 3.505 | |
| CHASSIS | Final gear ratio | 4.44(40/9) |
| Clutch | ||
| Truning diameter m | 9.5 | |
| Steering | Rack & pinion | |
| Braking system | Disc(F),Drum(R) | |
| Drive train | 4x2MR | |
| Suspension system-Front | Coil spring | |
| Suspension system-Rear | leaf spring | |
| Tires size | 165/70 R13 | |
| CAPACITY | Fuel consumption at100km/h ≤L | 6.0(50Km/h) |
| Max. Speed km/h | 100 | |
| Emission Standard | Eu III with OBD |
