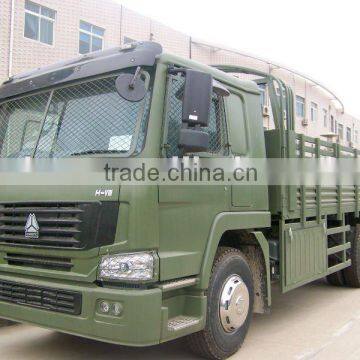

4x4 truck
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Capacity (Load) | 11 - 20t | |
| Drive Wheel | 4x4 | Horsepower | Other, 196kw | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Diesel | |||
| Place of Origin | Shandong, China | Brand Name | Howo | |
| Model Number | ZZ2167 |
Product Description
Specifications
4x4 truck1. Strong power:196HP.
2. Bigger load capacity:15t
4x4 truck
| MAIN SPECIFICATION FOR MODEL ZZ2167M4627 | |||
| WEIGHT | CURB WEIGHT(kg) | 7780 | |
| RATED PAYLOAD(KG) | 15000 | ||
| MIN.STEERING DIAMETER (m) | 18 | ||
| MAX.SPEED (km/h) | 76 | ||
| MAX.CLIMBING CAPACITY (%) | 48 | ||
| PARKING GRADIENT(%) | 20 | ||
| MIN.SPEED(km/h) | 20 | ||
| SLIDING DISTANCE (At initial speed 50km/h) (m) | 950 | ||
| BRAKE DISTANCE(COMMENCING 30km/h) (m) | 9 | ||
| FUEL CONSUMPTION(l/100km) | 34 | ||
| FUEL TANK CAPACITY (L) | 400 | ||
| FRAME | TYPE | LADER-SHAPED WITH SAME WIDTH | |
| SECTION OF MAIN LONGN | GROOVE PROFILE 300×80×8mm | ||
| SECTION OF VICE LONGN | GROOVE PROFILE 280×70×5mm | ||
| GEARBOX | MODEL | HW15710C | |
| F GEARSHIFT | 10.73;7.98;5.91;4.38;3.29; | ||
| 2.45;1.82;1.35;1.00;0.75 | |||
| R GEARSHIFT | 10.49;2.39 | ||
| F AXLE | MODEL | 6.5T, SPEED RATIO 5.73 | |
| REAR AXLE | MODEL | 16T, SPEED RATIO 5.73 | |
| DIFFERENTIAL LOCK | YES | ||
| TRANSFER CASE | MODEL | ZQC1200 | |
| CARGO BOX | DIMENSION | ||
| DEMENSION | OVERALL SIZE | LENGTH (mm) | 8068 |
| WIDTH (mm) | 2496 | ||
| HEIGHT(mm) | 3110 | ||
| WHEEL BASE (mm) | 4600 | ||
| WHEEL TREAD(mm) | F | 2022 | |
| R | 1830 | ||
| MIN.GROUND CLEARENCE (mm) | 314 | ||
| APPROACH ANGLE (°) | 32 | ||
| DEPARTURE ANGLE (°) | 30 | ||
| F SUSPENSION (mm) | 1578 | ||
| R SUSPENSION (mm) | 1890 | ||
| ENGINE | MODEL | WD615.92C | |
| DISPLACEMENT(L) | 9.726 | ||
| RATED HP kW/(r/min) | 196 | ||
| MAX.TORQUE Nm/(r/min) | 1100/(1100-1600) | ||
| CLUTCH | MODEL/TYPE | AIR ASSIST, DIAMETER 420MM | |
| BRAKE | RATED WORKING PRESSURE (kPa) | 784 | |
| SERVICE BRAKE | 4-LOOP AIR BRAKE | ||
| SERVICE BRAKE ASSIST | AIR BRAKE | ||
| PARKING BRAKE | SNUFF OUT THE BRAKE | ||
| ELECTRICAL EQUIPMENT | VOLT | 24V | |
| ALTERNATOR | 1500W | ||
| BATTERY (V/Ah) | 24/165 Ah | ||
| WHEEL | RIM | 8.50-20 | |
| TYRE | 12.00-20, 18PR 7 pieces | ||
| SUSPENSION | F | NUMBER OF LEAF SPRING | 9 |
| R | NUMBER OF LEAF SPRING | 9+6 | |
