Mini truck
Negotiable
/ Set
6 Sets(Min.Order)
- 1000 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Capacity (Load) | Other, 0.8t | |
| Drive Wheel | 4x2 | Horsepower | Other, < 150hp | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Petrol / Gasoline | |||
| Size | 4260.*1475*1890 | Place of Origin | Shandong, China | |
| Model Number | CA1023 |
Product Description

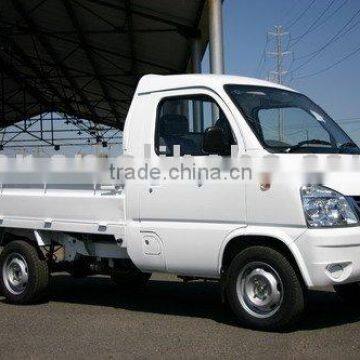

Mini truck
| Model | Registered model | CA1023V | CA1023V |
| Manufacturing code | CA1023V-KDAM | CA1023V-KDB | |
| Eu | Eu | ||
| DIMENSIONS | Exterior dimensions mm | 4260X1475X1890 | 4260X1475X1890 |
| Truck bed dimensions mm | 2460x1378x355 | 2460x1378x355 | |
| Wheel base mm | 2550 | 2550 | |
| Treads(F/R) mm | 1280/1290 | 1280/1290 | |
| Ground clearance mm | 156 | 156 | |
| Angles(Approach/Departure) | 27/29 | 27/29 | |
| Max. gradability % | ≥27 | ≥27 | |
| (mm) Overhanger(F/R) mm | 570/1140 | 570/1140 | |
| Seating capacity persons | 2 | 2 | |
| WEIGHT | Curb vehicle weight kg | 865 | 865 |
| Gross vehicle weight kg | 1795 | 1795 | |
| payload kg | 800 | 800 | |
| Weight distribution(unloaded) F/R Kg | 510/355(F/R) | 510/355(F/R) | |
| Weight distribution (loaded) F/R Kg | 825/970(F/R) | 825/970(F/R) | |
| ENGINE | Model | DA465Q | DA465Q-1A/D |
| Cylinders | L4,OHC EFI | L4,OHC EFI | |
| Bore×Stroke mm×mm | 65.5×72 | 65.5×78 | |
| DisplacementCapacity ml | 970 | 1051 | |
| Compression ratio | 8.8 | 9 | |
| Max.power Kw/rpm | 35.5/5200 | 38.55200 | |
| Max.torque N.m | 74/3000-3500 | 833000-3500 | |
| TRANSIMISSION | Transmission type | 5MT | 5MT |
| gear ratio 1st | 3.505 | 3.652 | |
| gear ratio 2st | 2.043 | 1.948 | |
| gear ratio 3st | 1.383 | 1.424 | |
| gear ratio 4st | 1 | 1.000 | |
| gear ratio 5st | 0.806 | 0.795 | |
| Reverse | 3.505 | 3.466 | |
| CHASSIS | Final gear ratio | 4.778 | 4.778 |
| Clutch | Diaphragm spring | Diaphragm spring | |
| Truning diameter m | ≤10 | ≤10 | |
| Steering | Rack & pinion | Rack & pinion | |
| Braking system | Disc(F),Drum(R) | Disc(F),Drum(R) | |
| Drive train | 4x2MR | 4x2MR | |
| Suspension system-Front | Coil spring | Coil spring | |
| Suspension system-Rear | leaf spring | leaf spring | |
| Tires size | 165/70 R13LT6PR | 165/70 R13LT6PR | |
| CAPACITY | consumption at100km/h ≤L | 6.5 | 6.5 |
| Max. Speed km/h | ≥100 | ≥105 |
