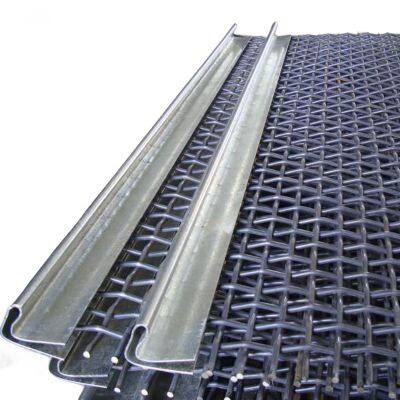

Mining Screen Mesh 65Mn 45# Manganese Steel Iron Wire Woven Quarry Rock High Tensile Steel Wire Screen Mesh Supplier
US$ 12.52
49 - 198 Pieces
US$ 10.51
199 Pieces
US$ 8.48
≥200 Pieces
You May Like
-
3.0mm Rhomboid Wire Mesh High-tensile Steel Wire Woven Rockfall Protection Net for Reinforcing Slope or Embankment
-
Factory Sales 65Mn Manganese Steel Square Woven Mining Screen Mesh
-
Slope Protection System Rockfall Netting 2.0mm 3.0mm 4.0mm High Tensile Steel Wire Mesh Netting Rockfall Barriers
-
Monkey Enclosure Mesh
-
China Rope Mesh Manufacturer Customized SS316 Black Oxided Ferrule Type Rope Mesh
-
Refractory Armour Systems Refractory Hexmetal Mesh Flexmetal Mesh Lining Ancillaries Refractory Anchors Hex Steel Manufacturer
Product Details
| Technique | Woven | Model Number | LEYHW258 | |
| Brand Name | LONGEN | Place of Origin | Hebei, China | |
| Delivery Time | 22 ~ 30 days | Processing Service | Bending, Welding, Decoiling, Cutting, Punching | |
| Weave Style | Plain Weave | Product name | 65Mn steel wire square Hole crimped wire mining screen mesh | |
| Hole size | 0.1-30mm | Width | 0.5-2.2m | |
| Length | 0.5-5.8m | Hole shape | Square Hole | |
| Surface treatment | Untreatment | Color | Black | |
| OEM and ODM | workable | keyword | crimped wire mesh, square wire mesh |
Product Description
Product Description
Specification
Specification of Crimped Screen Mesh | ||
Product Name | Crimped wire mesh, also known as crimped screen mesh, vibrating screen mesh, quarry screen mesh, mining screen wire mesh | |
Materials | Mild steel/Low carbon steel, carbon iron wire, 65Mn steel wire, galvanized steel wire or stainless steel wire. | |
Weaving | Pre-crimping before weaving | |
Wire diameter | 0.8mm-12.7mm | |
Mesh hole | 2mm to 100mm or as your requested | |
Width | 0.5-1.5m | |
Length | 1-30m or as your requestd | |
Certification | SGS standard,ISO9001:2008 | |

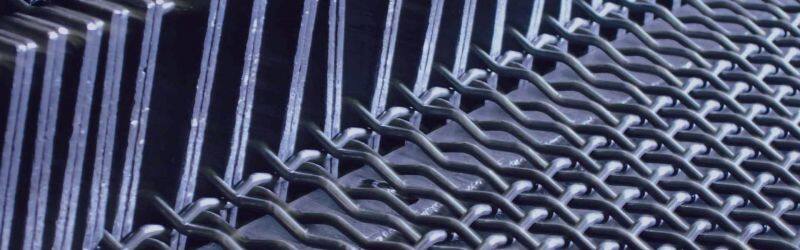

Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
Crimped woven wire mesh weaving types ：

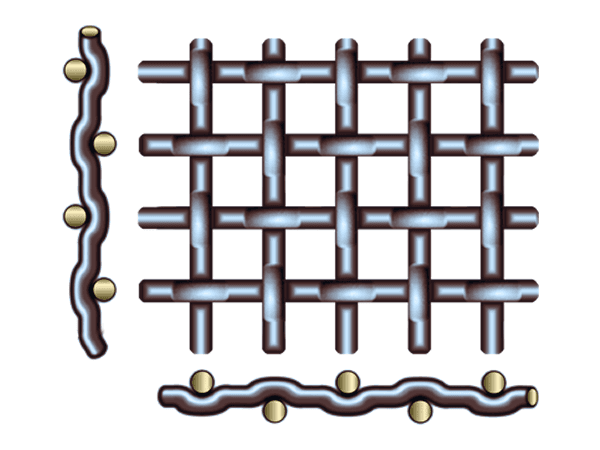

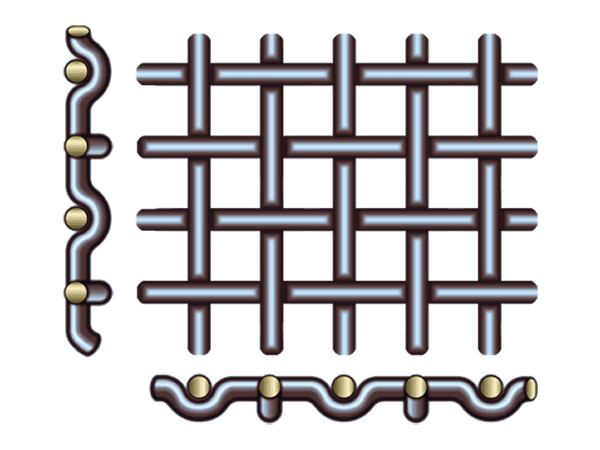

Double Crimp Wire Mesh
Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Flat Top Wire Mesh
Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and allowing bigger apertures with high precision. It is generally used for coarse mineral screening.

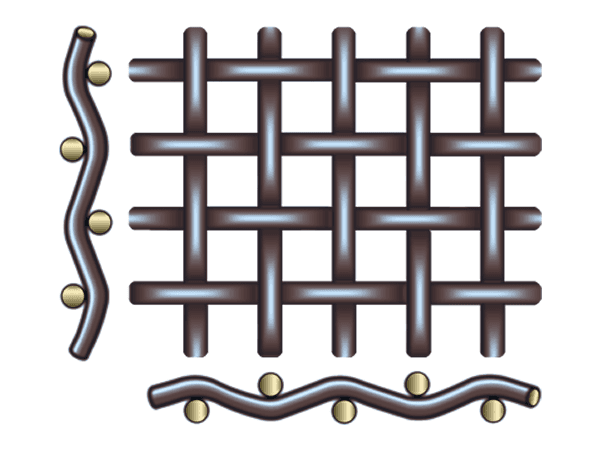

Lock Crimp Wire Mesh
Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Crimped woven wire mesh edge types ：

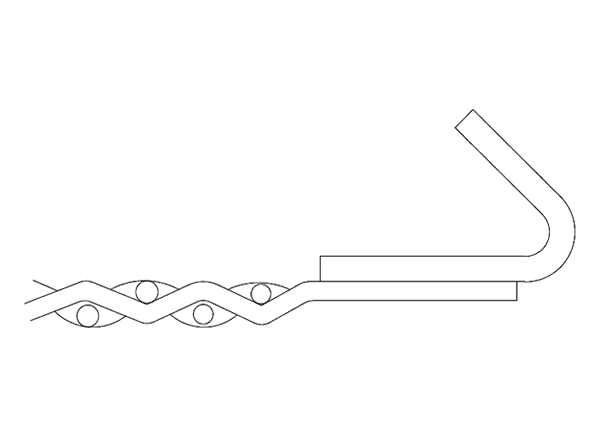

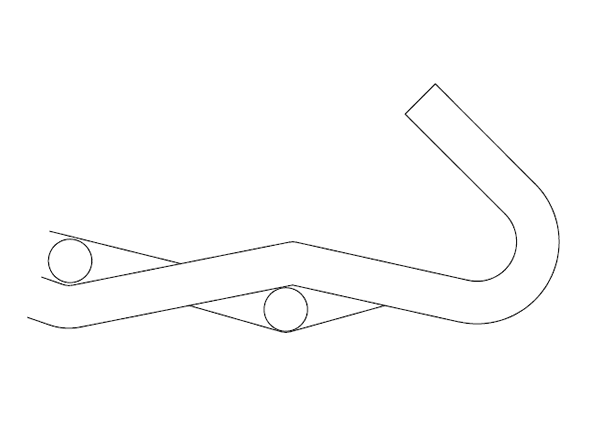

Plain hooked edge

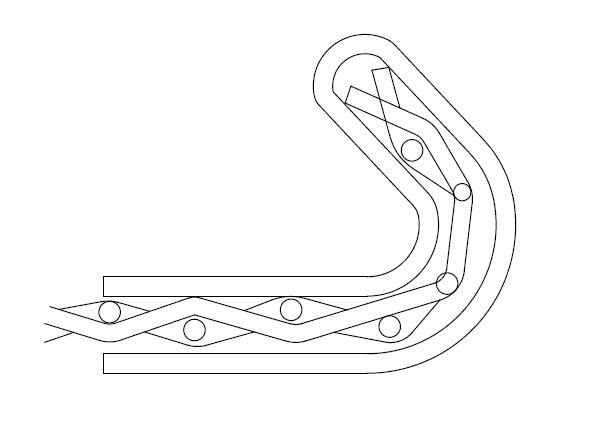

Reinforced shroud edge

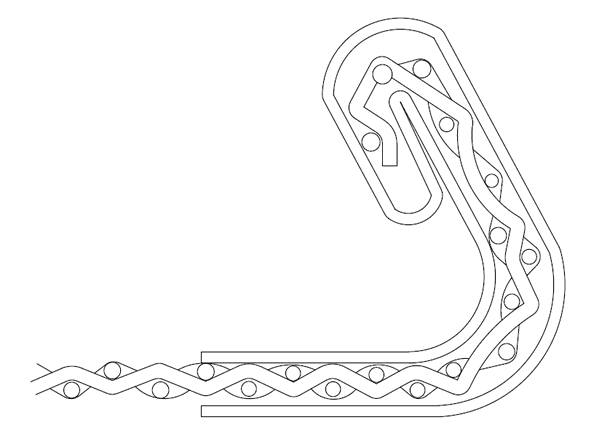

Double folded reinforced shroud edge

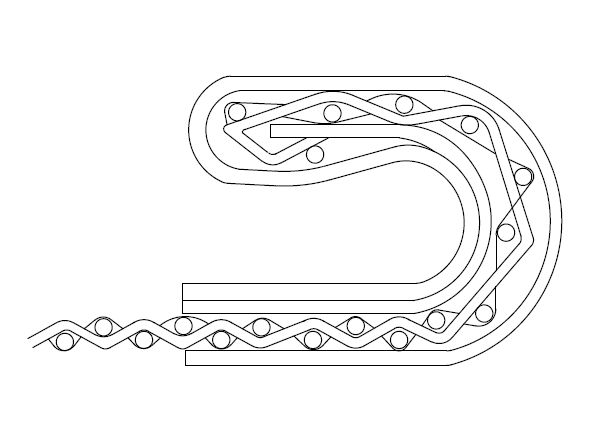

End tension reinforced shroud edge
Inside reinforced formed edge

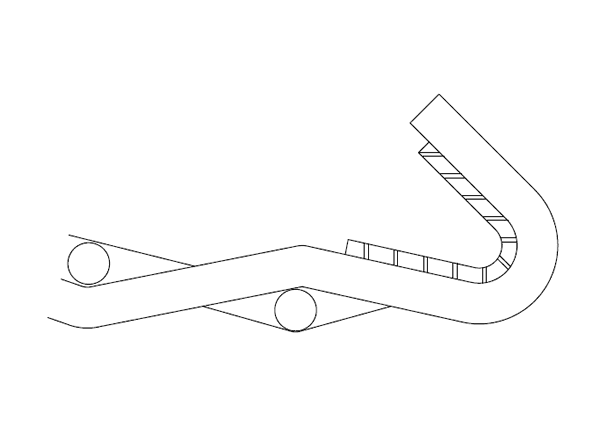

Welded bent plate edge
