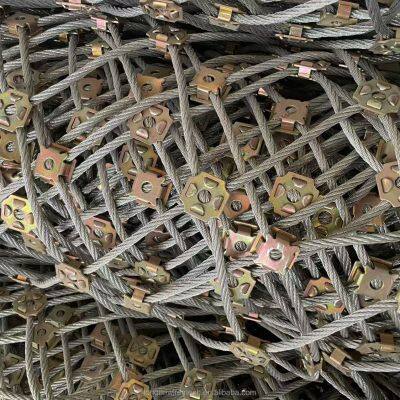

300 Mesh Size Rockfall Protection Wire Rope Net With Welding & Bending for Long-Life Railway Side Slope Stabilization
US$ 20.00
999 - 2999 Square Meters
US$ 18.90
3000 - 99998 Square Meters
US$ 15.00
≥99999 Square Meters
You May Like
-
China Factory Galvanized Steel Railway Side Slope Stabilization Net Woven Wire Mesh for Slope Protection Include Bending Welding
-
Weatherproof Zinc-Coated Steel Rope Net for Mining Area Slope Stabilization Bending Welding Slope Protection Net Price
-
Wholesale High-tensile Flexible Slope Rockfall Protection Netting 3.0mm 4.0mm Chain Link Rockfall Netting Rockfall Barrier Fence
-
China Wholesale High-Tensile Steel Wire Mesh With Bending Rhomboid Hole Chain Link Mesh for Slope Protection Rockfall Prevention
-
High Tensile Slope Protection Wire Mesh Price Rhomboid Slope Rockfall Barrier for Rockfall Protection
-
Manufacturer High Tensile G.I Steel Wire Mesh Woven Technique Bending for Rockfall Netting Underground Mining Slope Stability
Product Details
| Technique | Woven | Model Number | R Wire Rope Net slope rockfall protection 828 | |
| Brand Name | Longen | Place of Origin | Hebei, China | |
| Delivery Time | 15-21 days | Processing Service | Bending, Welding, Decoiling, Cutting | |
| Weave Style | Plain Weave | Product name | Wire Rope Net slope rockfall protection | |
| Surface treatment | Galvanized, PVC coated. | wire rope diameter | 8 mm | |
| Wire rope mesh size | 300 mm* 300 mm | Mesh roll size | 4 m * 4 m, 4.5 m * 4.5 m | |
| Supporting rope diameter | 12 mm, 16 mm | Sewing rope diameter | 8 mm. | |
| anchor diameter | 25 mm * 25 mm | Anchor bearing plate size | 320 *170 mm, 320 *180 mm |
Product Description
Galvanized Wire Rope Net: Superior Corrosion Resistance for Rockfall Protection?
As the most widely used rockfall barrier, galvanized wire rope net stands out for its exceptional corrosion and rust resistance. Crafted from hot-dipped galvanized steel wire rope—with higher tensile strength than standard steel wires—it’s built to withstand tough conditions.?
1.Used alone: Perfect for areas with large stones and high-impact risks.?
2.Combined with chain link/hexagonal mesh: Blocks small stones on loose slopes, offering comprehensive defense.
Wires are intersected and secured firmly with clips, ensuring durability. Ideal for mountain and slope protection, it works
flexibly:?
flexibly:?
1.Used alone: Perfect for areas with large stones and high-impact risks.?
2.Combined with chain link/hexagonal mesh: Blocks small stones on loose slopes, offering comprehensive defense.
Product Description
Specification
Model | Nominal resistance grade | Bursting resistance of flexible metal |
APS-025 | 25 | ≥25 |
APS-050 | 50 | ≥50 |
APS-75 | 75 | ≥75 |
APS-100 | 100 | ≥100 |
APS-150 | 150 | ≥150 |
APS-200 | 200 | ≥200 |
APS-300 | 300 | ≥300 |
APS-500 | 500 | ≥500 |
Specifications of galvanized wire rope net
1.Material: hot dipped galvanized steel wire rope.
2.Steel wire rope diameter: 8 mm.
3.Steel wire rope mesh size: 300 mm × 300 mm.
4.Chain link mesh wire diameter: 2.2 mm.
5.Chain link mesh size: 50 mm × 50 mm.
6.Supporting rope diameter: 12 mm or 16 mm.
7. Sewing rope diameter: 8 mm.
1.Material: hot dipped galvanized steel wire rope.
2.Steel wire rope diameter: 8 mm.
3.Steel wire rope mesh size: 300 mm × 300 mm.
4.Chain link mesh wire diameter: 2.2 mm.
5.Chain link mesh size: 50 mm × 50 mm.
6.Supporting rope diameter: 12 mm or 16 mm.
7. Sewing rope diameter: 8 mm.
Components
1. Galvanized wire rope net. The main component of steel wire rope rockfall barrier system. It is made of 8 mm steel wire rope and then woven into steel wire rope net with diamond shapes. Steel wire rope has high tensile strength and load capacity.
2.Chain link fence. Chain link fence is another important component. It is used with galvanized wire rope net to make up the disadvantages of galvanized wire rope net. Place the chain link fence in the wire rope net to block and prevent the smaller stones from falling down. The chain link meshes are made of hot dipped galvanized materials for corrosion and rust resistance.
3. Wire rope anchor. Made of steel wire rope, the wire rope anchor is mainly used for fastening the galvanized wire rope net and chain link meshes on the mountain firmly. The wire rope anchor has higher tensile strength and better flexible performance than the concrete anchor.
4.Supporting rope. Supporting rope is placed along the galvanized wire rope net, it is used for share the loading and pressure of the wire rope net. Support rope is also made of 8 mm steel wire rope, which has high loading capacity and tensile strength.
5.Sewing rope. Sewing rope is mainly used for connecting the neighbor steel wire rope net and form a whole protection for the mountain. Sewing rope is very important, 8 mm steel wire rope can supply high loading capacity to prevent the stones from leakage in the joint.
2.Chain link fence. Chain link fence is another important component. It is used with galvanized wire rope net to make up the disadvantages of galvanized wire rope net. Place the chain link fence in the wire rope net to block and prevent the smaller stones from falling down. The chain link meshes are made of hot dipped galvanized materials for corrosion and rust resistance.
3. Wire rope anchor. Made of steel wire rope, the wire rope anchor is mainly used for fastening the galvanized wire rope net and chain link meshes on the mountain firmly. The wire rope anchor has higher tensile strength and better flexible performance than the concrete anchor.
4.Supporting rope. Supporting rope is placed along the galvanized wire rope net, it is used for share the loading and pressure of the wire rope net. Support rope is also made of 8 mm steel wire rope, which has high loading capacity and tensile strength.
5.Sewing rope. Sewing rope is mainly used for connecting the neighbor steel wire rope net and form a whole protection for the mountain. Sewing rope is very important, 8 mm steel wire rope can supply high loading capacity to prevent the stones from leakage in the joint.
Application
Applications of galvanized wire rope net
Galvanized wire rope net can be used in active rockfall barrier system and passive rockfall barrier system.
1.Galvanized wire rope net has the same applications with PVC coated wire rope net. It is widely used in the mountains and slopes to prevent stones from falling down.
2. It can also be prevent the landslide, debris flow, snow avalanche and other natural hazard so as to protect the people and properties' safe.
Galvanized wire rope net can be used in active rockfall barrier system and passive rockfall barrier system.
1.Galvanized wire rope net has the same applications with PVC coated wire rope net. It is widely used in the mountains and slopes to prevent stones from falling down.
2. It can also be prevent the landslide, debris flow, snow avalanche and other natural hazard so as to protect the people and properties' safe.
