F500/f800/f1000/F-1300/F1600 Oil Drilling Mud Pump Hydraulic Cylinder Assembly AH36002-05.01.00 AH130102050100
US$ 200
≥1 Units
- QINGDAO
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
EatonAirflex WCB водоохладительный тормоз вспомогательный тормоз
-
Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
-
Eaton Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
-
Winch Clutch, Push Plate Clutch ATD124 ATD224 ATD324 ATD136 ATD236 ATD336
-
F500 F800 F1000 F1300 F1600 Mud Pump Cylinder Sleeve Bimetallic Liners
-
Atd Push Plate Clutch Atd118/ATD218/ATD318, Atd124/ATD224/ATD324, Atd327, Atd230/ATD330/236, Atd214/ATD314
Product Description
| F-1300/1600 Hydraulic End Assemble | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Hydraulic cylinder assembly | AH36002-05.01.00 | AH130102050100 |
| Cylinder head flange | AH36001-05.02 | AH1301010502 |
| Cylinder head | AH36001-05.03 | AH1301010503 |
| Plug board assembly | AH36001-05A.04.00 | AH130101050400 |
| Valve rod guides(lower) | AH36001-05A.05.00 | AH130101050500 |
| Cylinder head plug | AH36001-05A.06.00 | AH130101050600 |
| Positioning plate | AH36001-05A.07 | AH1301010507 |
| Cylinder head gasket | AH36001-05.08 | AH1301010508 |
| Discharge manifold | AH36001-05.09 | AH1301010509 |
| Valve spring | AH33001-05.16A | AH00000101 |
| O-ring φ95×5.3 | 530301010950053000 | 530301010950053000 |

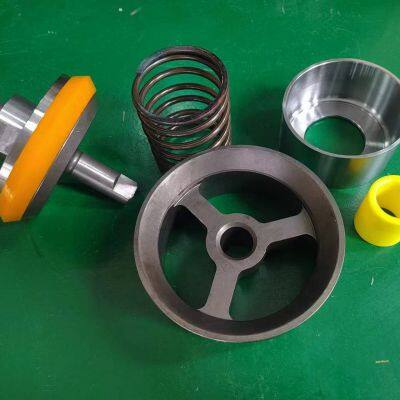

| Valve assembly API 7 through-hole | AH36001-05.12A.00 | AH0000020300 |
| Valve cover sealing ring | AH36001-05.13 | AH1301010510 |
| Valve cover | AH36002-05.02 | AH1301020502 |
| Cylinder liner seal | AH36001-05.15 | AH1301010512 |
| Wearing plate | AH36002-05.03 | AH1301020503 |
| Cylinder liner flange | AH36001-05.17 | AH1301010514 |
| Cylinder liner gland | AH36001-05.18.00 | AH130101051500 |
| Piston rod | AH36002-05.05 | AH1301020504 |
| Adapter NPT3/8 | AH36002-05.04.00 | AH130102050500 |
| O-ring φ200×7 | 530301012000070000 | 530301012000070000 |
| Cylinder liner lock ring | AH36001-05.22 | AH1301010518 |

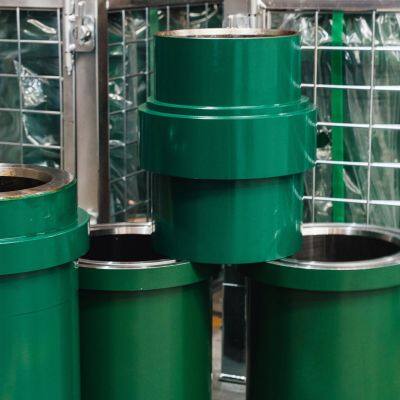

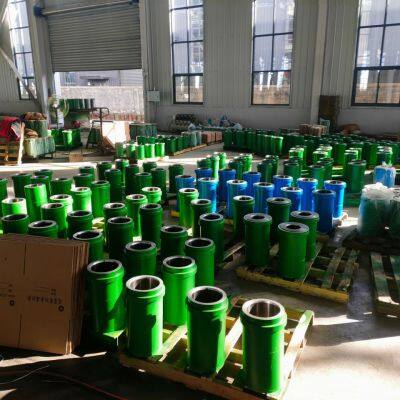

| Bi-metal cylinder liner | AH130102051200 | AH130102051200 |
| Clamp assembly | AH36002-05.06.00 | AH130102050600 |
| Elbow NPT3/8-M22X1.5 | AH36002-05.08 | AH1301020507 |
| Cylinder end cover | AH36001-05.27 | AH1301010520 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| British piston | AH36002-05.09.00 | AH130102050800 |
| Bolt 7/8-9UNCX2 | T50-1027 | T500-1027 |
| Adapter connector NPT1/2-M22X1.5 | AH36002-05.10 | AH1301020509 |
| Right-angle connector NPT1-NPT1/2 | AH36002-05.11 | AH1301020510 |
| Suction manifold | AH36002-05.12A.00 | AH130102051100 |
| Gasket unit | AH36001-05.33A.00 | AH130101052300 |
| Backup ring | AH36001-05.39 | AH1001010527 |
| Valve rod guide (upper) | AH33001-05.12 | AH1001010510 |
| Double armed bolt 1 1/2-8UNX10 1/2 | T50-7002 | T500-7002 |
| Nut 1 1/2-8UN | T51-2001 | T501-2001 |
| Dam-board | AH33001-05.14 | AH1001010512 |
| Bot 3/8-16UNCX3/4 | AH35003-05.04 | AH0501020509 |
| O-ring 41.2X3.55 | GB3452.1-82 | 530301010412035000 |
| Piston nut 1 1/2-8UN | T51-3003.0 | T501-303.0 |
| O-ring Φ185X7 | GB3452.1-82 | 530301011850070000 |
| Inhalation of the blocking plate | T55-1006 | T505-1006 |
| O-ring Φ345X7 | GB3452.1-82 | 530301013450070000 |
| Suction flange （I） | AH33001-05.39 | AH1001010525 |
| Suction flange（II） | AH33009-05.03 | AH1001020509 |
| Nut 1-8UNC | T51-1003 | T501-1003 |
| Bolt 1-8UNCX3 1/2 | T50-1023 | T500-1023 |
| Stainless steel wire φ1.6×1830 | 40104030160001900 | 40104030160001900 |
| Withhold type hose assembly C-13X1W-850 | 140507011301008000 | 140507011301008000 |
| Screwed plug NPT 1 1/2 | T56-1007 | T506-1007 |
| Double armed bolt 1 1/2-8UNX22 1/4 | AH36002-05.01.00A | AH1301020513 |
| Le Tai glue 243 | 243 | 170506010100243000 |
| Bolt 1-8UNCX4 1/4 | T50-1024 | T500-1024 |
| Hose clip 3 | 61401030750000000 | 61401030750000000 |
| Discharge blocking plate | T55-1008 | T505-1008 |
| Suction air chamber | AH33001-05.35A.00 | AH0000050100 |
| B.Locking spring | C.Valve rubber | |
| F-1300/1600 Lubricated Power unit assembly | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Square key 3/16×3/16×1 | T516-2001 | T516-2001 |
| Oil pump gear assembly | AH34007-06.01.00 | AH080102060100 |
| 90°Elbow NPT1/4×NPT 3/8 | T511-3002 | T511-3002 |
| hollow bolt A12 | GB5650-85 | 520902540320120000 |
| Socket head cap screw 5/16-18UNCX1 5/8 | T50-3003 | T500-3003 |
| Pipe joint A16 | 520901010350040000 | 520901010350040000 |
| Pipe joint A8 | 520901010350050000 | 520901010350050000 |
| 90°Elbow NPT1/4×NPT 1/4 | T511-3001 | T511-3001 |
| Copper pipeΦ8×305 | 51102010080010000 | 51102010080010000 |
| Pipe joint A8 | 520901010330050000 | 520901010330050000 |
| Connector assembly（II） | AH33001-06.40 | AH1001010611 |
| Pipe joint A16 | 520901010330040000 | 520901010330040000 |
| Copper pipeΦ16×686 | 51102010160015000 | 51102010160015000 |
| Copper pipeΦ16×331 | 51102010160015000 | 51102010160015000 |
| Three pipe clamp | AH34007-06.02.00 | AH080102060200 |
| 45°Pipe joint | AH36001-06A.10 | AH1001010608 |
| Copper pipeΦ10×838 | 51102010100010000 | 51102010100010000 |
| Copper pipeΦ12×305 | 51102010120010000 | 51102010120010000 |
| Pipe clampΦ8 | AH35003-06.04.00 | AH050102060400 |
| Copper pipeΦ8×762 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×508 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×229 | 51102010080010000 | 51102010080010000 |
| Pipe plug NPT1/4" | T56-1002 | T506-1002 |
| Copper pipeΦ8×915 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1194 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1016 | 51102010080010000 | 51102010080010000 |
| Connector assembly（I） | AH33001-06A.11 | AH1001010607 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Pipe joint A10 | 520901010330010000 | 520901010330010000 |
| Pipe clamp〈I〉 | AH35003-06.01.00 | AH050102060100 |
| Gasket A12 | 520902551280120000 | 520902551280120000 |
| Bolt 1/4-20UNCX3/4 | T50-1007 | T500-1007 |
| Flow nipple | AH36001-06.10 | AH1301010601 |
| Copper pipeΦ12×610 | 51102010012010000 | 51102010012010000 |
| Copper pipeΦ8×813 | 51102010080010000 | 51102010080010000 |
| Pipe joint A8 | 520901010050050000 | 520901010050050000 |
| Dual card Φ8 | AH35003-06.02.00 | AH050102060200 |
