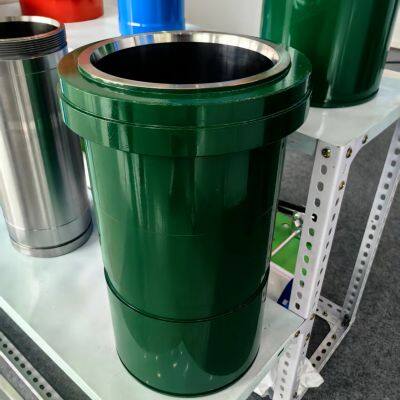

F500 F800 F1000 F1300 F1600 Mud Pump Cylinder Sleeve Bimetallic Liners
US$ 100
≥1 Units
- QINGDAO
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
Atd Push Plate Clutch Atd118/ATD218/ATD318, Atd124/ATD224/ATD324, Atd327, Atd230/ATD330/236, Atd214/ATD314
-
F500F800F1000 F1300 F1600 Mud Pump Accessories, Bimetallic Cylinder Liner, Ceramic Cylinder Liner, Piston Assembly, Valve Assembly
-
Bimetallic Liner for F-1300/1600, 3NB1300/1600F, LGF3161-05.21G Liner
-
Russia Unbt950 Unbt1180L Mud Pump Cylinder Sleeve Bimetallic Liner Bushing
-
EatonAirflex WCB водоохладительный тормоз вспомогательный тормоз
-
Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
Product Description
| F-1300/1600 Oil drilling mud pump parts | ||
| Name of the product | Old model | New model |
| F1300/F1600 | F-1300/F1600 | |
| Frame Assembly | AH36002-01.00 | AH1301020100 |
| Crankshaft Assembly | AH36002-02.00 | AH1301020200 |
| AH37002-01.00 | AH1601020100 | |
| Pinion Shaft Assembly | AH36002-03.00 | AH1301020300 |
| AH37002-02.00 | AH1601020200 | |
| Crosshead Assembly | AH36002-04.00 | AH1301020400 |
| Fluid End Assembly | AH36002-05.00 | AH1301020500 |
| Power End Lubrication Assembly | AH36002-06A.00 | AH1301020600 |
| Base Seat | AH36002-07.00 | AH1301020700 |
| Spray Pump Assembly | AH36002-08.00 | AH1301020800 |
| BS Name Plate | AH13010209 | AH13010209 |
| AH37002-03B | AH16010203 | |
| Attachment tools | AH36002-10.00 | AH1301021000 |
| Attachment spare parts | AH36002-11.00 | AH1301021100 |
| Discharge filter assembly | AH34004-18.00 | AH1001021100 |
| Sealing washer | AH33001-09 | AH10010109 |
| Breather Cap | T515-1001.00 | T515-1001.00 |
| Crane | AH36001-10.00 | AH1301011000 |
| Crane | AH36001-11A.00 | AH1301011100 |
| Cover Plate | AH36001-12.00 | AH1301011200 |
| Gasket | AH36001-13 | AH13010113 |
| Indication board | AH33001-17B | AH10010113 |
| AH33001-17A | AH10010210 | |
| Oil Level Indicator | AH33001-18.00 | AH1001011400 |
| Clean Out Cover(III) | AH33001-22.00 | AH1001011500 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Gasket | AH36001-19 | AH10010116 |
| Crosshead Door | AH36001-15A | AH13010114 |
| AH37001-04 | AH16010104 | |
| Gasket | AH36001-16 | AH13010115 |
| Transition joint | T512-1002 | T512-1002 |
| Elbow Pipe | AH33001-30 | AH10010212 |
| Ring Gasket R44 | T58-5002 | T508-5002 |
| Flange | T58-1002 | T508-1002 |
| KB-75 Pulsation Dampener | AH33010-00 | AK75350200 |
| JA-3 Shear Relief Valve | AH33007-00 | AH0000060200 |
| Adapter NPT3 | T510-1002 | T510-1002 |
| Cover Plate Assembly | AH36001-21B.00 | AH1301011800 |
| Quarter Bend NPT3 | T511-1002 | T511-1002 |
| Bolt 1/2-13UNCX1 | T50-1001 | T500-1001 |
| Bolt 1/2-13UNCX1 1/2 | T50-1017 | T500-1017 |
| Bolt 5/8-11UNCX1 5/8 | T50-1010 | T500-1010 |
| Bolt 1-8UNCX3 1/4 | T50-1013 | T500-1013 |
| Nut 1-8UNC-2B | T51-1003 | T501-1003 |
| Bolt 5/8-11UNCX1 3/4 | T50-1008 | T500-1008 |
| Nut 5/8-11UNC-2B | T51-1002 | T501-1002 |
| Sign with the nail 3X10 | 420999050603001000 | 420999050603001000 |
| Spring Washer 27 | 420503011271600000 | 420503011271600000 |
| Washer 12 | 420501036120200000 | 420501036120200000 |
| Washer 16 | 420501036160200000 | 420501036160200000 |
| Spring Washer 16 | 420503010161600000 | 420503010161600000 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Cross Recess Head ScrewM4X16 | 420101050704001000 | 420101050704001000 |
| Rubber Strip40X10X5800 | 140601061000000000 | 140601061000000000 |
| double scale pressure gauge 60MPa | 380207192602511000 | 380207192602511000 |
| Thread lock solid anaerobic glue | 170506010100243000 | 170506010100243000 |
| Adjusting shim | AH36001-23 | AH13010119 |
| Flat Gasket 27 | 420501060270100000 | 420501060270100000 |
| F-1300/1600 Crank Shaft Assemble | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Main bearing end cover | AH36001-02.01C.00 | AH130101020100 |
| Main bearing set (right) | AH36002-02.01 | AH1301020201 |
| AH37002-01.01 | AH1601020101 | |
| sealing washer | AH36001-02.03 | AH1301010203 |
| Inner locking ring | AH36001-02.04 | AH1301010204 |
| Outer race retainer | AH36001-02.05 | AH130101020500 |
| AH37001-01.03 | AH160101010200 | |
| Connection rod | AH36002-02.02 | AH1301020202 |
| AH37002-01.02 | AH1601020102 | |
| locating ring(I) | AH36002-02.03 | AH1301020203 |
| Hollow crank shaft | AH36002-02.04A.00 | AH130102020400 |
| locating ring(II) | AH36002-02.05 | AH1301020205 |
| Big gear ring | AH36001-02.10D.00 | AH130101021000 |
| AH37001-01.05D.00 | AH160101010400 | |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| spacer | AH36001-02.12 | AH1301010211 |
| Main bearing set (left) | AH36002-02.06 | AH1301020206 |
| AH37002-01.03 | AH1601020103 | |
| Retainer ring | AH36001-02.14 | AH1301010213 |
| AH37001-01.07 | AH1601010106 | |
| Bolt 5/8-11UNCX1 1/2 | T50-1018K | T500-1018K |
| Retainer | AH36001-02.15 | AH1301010214 |
| Bolt 5/8-11UNCX1 3/4 | T50-1008 | T500-1008 |
| Main bearing bolt | AH36001-02.16C | AH1301010215 |
| Shim set | AH36001-02.17 | AH130101021600 |
| Bolt 5/8-11UNCX4 | T50-3004K | T500-3004K |
| Eccentric Bearing | AH36001-02.19.00 | AH1301010217 |
| AH37001-01.08.00 | AH1601010107 | |
| Main Bearing | AH36001-02.20.00 | AH1301010218 |
| AH37001-01.09.00 | AH1601010108 | |
| Washer 16 | 420501036160200000 | 420501036160200000 |
| Bolt 5/8-11UNCX4 3/4 | T50-3006K | T500-3006K |
| Lock Wire Φ1.5 | 40101010150600000 | 40101010150600000 |
| Lock Wire Φ3 | 40101010300600000 | 40101010300600000 |
| Loctite 243 | 170506010100243000 | 170506010100243000 |
| Big gear ring (piece together) | AH36001-02.10B.00 | AH130101021900 |
| AH37001-01.05B.00 | AH160101010900 | |
| Bolt 1 1/2-8UNX7 | T50-2033 | T500-2033 |
| F-1300/1600 Pinion Shaft Assembly | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Key 2″×2″×11 3/8″ | AH36002-03.01 | AH1301020301 |
| Pinion Shaft | AH36002-03.02 | AH1301020302 |
| AH37002-02.01 | AH1601020201 | |
| Oil Seal Wear Ring | AH36001-03.03 | AH1301010303 |
| End Cover | AH36002-03.03B | AH1301020303 |
| Gasket | AH36001-03.05 | AH1301010305 |
| Gasket | AH36001-03.06 | AH1301010306 |
| Bearing Sleeve | AH36001-03.07B | AH1301010307 |
| Race Retainer | AH36002-03.05B | AH1301020305 |
| seal washer | AH36001-03.12B | AH1301010309 |
| Oil Gathering Box | AH36001-03.13B.00 | AH130101031000 |
| Bolt 1/2-13UNCX1 3/8 | T50-1019 | T500-1019 |
| Bolt 7/8-9UNCX2 | T50-1027 | T500-1027 |
| Oil Seal 9.125"X10.375"X0.625" | AH36001-03.08A | AH1301010311 |
| Bearing 4G32844H | AH36001-03.09 | AH1301010312 |
| Washer 22 | 420503011221600000 | 420503011221600000 |
| Washer 14 | 420503011141600000 | 420503011141600000 |
| Flange | AH36001-03.11 | AH1301010313 |
| Bolt 5/8-11UNCX1 3/4 | T50-2003 | T500-2003 |
| Spring Washer | 420503011161600000 | 420503011161600000 |
| F-1300/1600 Crossing Head Assemble | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Crosshead | AH36002-04.01 | AH1301020401 |
| Upper slide | AH36001-04.02 | AH1301010402 |
| Gasket unit | AH36001-04.03A.00 | AH100101041700 |
| Adjusting pad | AH36001-04.04 | AH1301010403 |
| Packing box | AH36001-04.05 | AH1301010404 |
| Oil seal ring | AH36001-04.21 | AH1301010405 |
| O-ring φ190×3.55 | 530301011900035000 | 530301011900035000 |
| Two-lip seal 5"X6.25"X0.625" | AH36001-04.08A | AH1301010406 |
| Locking spring | AH36001-04.13 | AH1301010407 |
| Splash guard | AH36001-04.10 | AH1301010408 |
| Extension rod | AH36001-04.11 | AH1301010409 |
| Crosshead pin | AH36002-04.03 | AH1301020403 |
| O-ring φ125×7 | 530301011250070000 | 530301011250070000 |
| Bolt 3/4-10UNCX2 1/2 | T50-3010 | T500-3010 |
| Sealing gasket | AH36001-04.15 | AH1301010411 |
| O-ring φ160×7 | 530301011600070000 | 530301011600070000 |
| Lower slide | AH36001-04.17 | AH1301010412 |
| Crosshead pin guide | AH36002-04.04 | AH1301020404 |
| Cross head bearing | AH36001-04.19 | AH1301010414 |
| Pipe joint NPT3/8″×2 | AH33001-04.07 | AH1001010405 |
| Bolt 1-8UNCX2 1/4 | T50-2018K | T500-2018K |
| Bolt 1-8UNCX2 1/2 | T50-2019K | T500-2019K |
| Locking plate | AH36002-04.02 | AH1301020402 |
| Bolt 3/8-16UNCX1 | T50-1021 | T500-1021 |
| Screw 1-8UNCX2 1/2 | T50-3013K | T500-3013K |
| Spring washer 10 | 420503011101600000 | 420503011101600000 |
| Zinc-coated wire φ1.6 | 40104030160000800 | 40104030160000800 |
| Loctite | 170506010100243000 | 170506010100243000 |
| F-1300/1600 Hydraulic End Assemble | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Hydraulic cylinder assembly | AH36002-05.01.00 | AH130102050100 |
| Cylinder head flange | AH36001-05.02 | AH1301010502 |
| Cylinder head | AH36001-05.03 | AH1301010503 |
| Plug board assembly | AH36001-05A.04.00 | AH130101050400 |
| Valve rod guides(lower) | AH36001-05A.05.00 | AH130101050500 |
| Cylinder head plug | AH36001-05A.06.00 | AH130101050600 |
| Positioning plate | AH36001-05A.07 | AH1301010507 |
| Cylinder head gasket | AH36001-05.08 | AH1301010508 |
| Discharge manifold | AH36001-05.09 | AH1301010509 |
| Valve spring | AH33001-05.16A | AH00000101 |
| O-ring φ95×5.3 | 530301010950053000 | 530301010950053000 |
| Valve assembly API 7 through-hole | AH36001-05.12A.00 | AH0000020300 |
| Valve cover sealing ring | AH36001-05.13 | AH1301010510 |
| Valve cover | AH36002-05.02 | AH1301020502 |
| Cylinder liner seal | AH36001-05.15 | AH1301010512 |
| Wearing plate | AH36002-05.03 | AH1301020503 |
| Cylinder liner flange | AH36001-05.17 | AH1301010514 |
| Cylinder liner gland | AH36001-05.18.00 | AH130101051500 |
| Piston rod | AH36002-05.05 | AH1301020504 |
| Adapter NPT3/8 | AH36002-05.04.00 | AH130102050500 |
| O-ring φ200×7 | 530301012000070000 | 530301012000070000 |
| Cylinder liner lock ring | AH36001-05.22 | AH1301010518 |
| Bi-metal cylinder liner | AH130102051200 | AH130102051200 |
| Clamp assembly | AH36002-05.06.00 | AH130102050600 |
| Elbow NPT3/8-M22X1.5 | AH36002-05.08 | AH1301020507 |
| Cylinder end cover | AH36001-05.27 | AH1301010520 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| British piston | AH36002-05.09.00 | AH130102050800 |
| Bolt 7/8-9UNCX2 | T50-1027 | T500-1027 |
| Adapter connector NPT1/2-M22X1.5 | AH36002-05.10 | AH1301020509 |
| Right-angle connector NPT1-NPT1/2 | AH36002-05.11 | AH1301020510 |
| Suction manifold | AH36002-05.12A.00 | AH130102051100 |
| Gasket unit | AH36001-05.33A.00 | AH130101052300 |
| Backup ring | AH36001-05.39 | AH1001010527 |
| Valve rod guide (upper) | AH33001-05.12 | AH1001010510 |
| Double armed bolt 1 1/2-8UNX10 1/2 | T50-7002 | T500-7002 |
| Nut 1 1/2-8UN | T51-2001 | T501-2001 |
| Dam-board | AH33001-05.14 | AH1001010512 |
| Bot 3/8-16UNCX3/4 | AH35003-05.04 | AH0501020509 |
| O-ring 41.2X3.55 | GB3452.1-82 | 530301010412035000 |
| Piston nut 1 1/2-8UN | T51-3003.0 | T501-303.0 |
| O-ring Φ185X7 | GB3452.1-82 | 530301011850070000 |
| Inhalation of the blocking plate | T55-1006 | T505-1006 |
| O-ring Φ345X7 | GB3452.1-82 | 530301013450070000 |
| Suction flange （I） | AH33001-05.39 | AH1001010525 |
| Suction flange（II） | AH33009-05.03 | AH1001020509 |
| Nut 1-8UNC | T51-1003 | T501-1003 |
| Bolt 1-8UNCX3 1/2 | T50-1023 | T500-1023 |
| Stainless steel wire φ1.6×1830 | 40104030160001900 | 40104030160001900 |
| Withhold type hose assembly C-13X1W-850 | 140507011301008000 | 140507011301008000 |
| Screwed plug NPT 1 1/2 | T56-1007 | T506-1007 |
| Double armed bolt 1 1/2-8UNX22 1/4 | AH36002-05.01.00A | AH1301020513 |
| Le Tai glue 243 | 243 | 170506010100243000 |
| Bolt 1-8UNCX4 1/4 | T50-1024 | T500-1024 |
| Hose clip 3 | 61401030750000000 | 61401030750000000 |
| Discharge blocking plate | T55-1008 | T505-1008 |
| Suction air chamber | AH33001-05.35A.00 | AH0000050100 |
| B.Locking spring | C.Valve rubber | |
| F-1300/1600 Lubricated Power unit assembly | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Square key 3/16×3/16×1 | T516-2001 | T516-2001 |
| Oil pump gear assembly | AH34007-06.01.00 | AH080102060100 |
| 90°Elbow NPT1/4×NPT 3/8 | T511-3002 | T511-3002 |
| hollow bolt A12 | GB5650-85 | 520902540320120000 |
| Socket head cap screw 5/16-18UNCX1 5/8 | T50-3003 | T500-3003 |
| Pipe joint A16 | 520901010350040000 | 520901010350040000 |
| Pipe joint A8 | 520901010350050000 | 520901010350050000 |
| 90°Elbow NPT1/4×NPT 1/4 | T511-3001 | T511-3001 |
| Copper pipeΦ8×305 | 51102010080010000 | 51102010080010000 |
| Pipe joint A8 | 520901010330050000 | 520901010330050000 |
| Connector assembly（II） | AH33001-06.40 | AH1001010611 |
| Pipe joint A16 | 520901010330040000 | 520901010330040000 |
| Copper pipeΦ16×686 | 51102010160015000 | 51102010160015000 |
| Copper pipeΦ16×331 | 51102010160015000 | 51102010160015000 |
| Three pipe clamp | AH34007-06.02.00 | AH080102060200 |
| 45°Pipe joint | AH36001-06A.10 | AH1001010608 |
| Copper pipeΦ10×838 | 51102010100010000 | 51102010100010000 |
| Copper pipeΦ12×305 | 51102010120010000 | 51102010120010000 |
| Pipe clampΦ8 | AH35003-06.04.00 | AH050102060400 |
| Copper pipeΦ8×762 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×508 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×229 | 51102010080010000 | 51102010080010000 |
| Pipe plug NPT1/4" | T56-1002 | T506-1002 |
| Copper pipeΦ8×915 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1194 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1016 | 51102010080010000 | 51102010080010000 |
| Connector assembly（I） | AH33001-06A.11 | AH1001010607 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Pipe joint A10 | 520901010330010000 | 520901010330010000 |
| Pipe clamp〈I〉 | AH35003-06.01.00 | AH050102060100 |
| Gasket A12 | 520902551280120000 | 520902551280120000 |
| Bolt 1/4-20UNCX3/4 | T50-1007 | T500-1007 |
| Flow nipple | AH36001-06.10 | AH1301010601 |
| Copper pipeΦ12×610 | 51102010012010000 | 51102010012010000 |
| Copper pipeΦ8×813 | 51102010080010000 | 51102010080010000 |
| Pipe joint A8 | 520901010050050000 | 520901010050050000 |
| Dual card Φ8 | AH35003-06.02.00 | AH050102060200 |
| Copper pipeΦ10×1956 | 51102010010010000 | 51102010010010000 |
| Copper pipeΦ8×1956 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×2311 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1600 | 51102010080010000 | 51102010080010000 |
| Copper pipeΦ8×1245 | 51102010080010000 | 51102010080010000 |
| Pipe joint NPT1/4-NPT1/4 | T512-3001 | T512-3001 |
| Gasket unit | AH100101060400 | AH33001-06.06A.00 |
| Stand | AH130102060200 | AH36002-06.01C |
| Pipe joint A10 | 520901010050010000 | 520901010050010000 |
| Spring washer 8 | 420503011081600000 | 420503011081600000 |
| Overflow valve（YYFJ-L120） | 512604900000032000 | 512604900000032000 |
| Spring washer 8 | 420503011081600000 | 420503011081600000 |
| 2S gear oil pump | 512601010031000000 | 512601010031000000 |
| Double scale pressure gauge M14x1.5 Y-60Z | 380202051160006000 | 380202051160006000 |
| Pipe joint A12 | 520901010330020000 | 520901010330020000 |
| Oil filter assembly | AH100101061000 | AH36001-06A.33.00 |
| Cylindrical fixing rubber | 170506010100609000 | 609(680) |
| Located block | AH1001010613 | AH36001-06C.01 |
| F-1300/1600 Spray Pump assembly | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Shield | AH36002-08.01.00A | AH130102080100 |
| AH130102080300 | ||
| Belt pulley | AH36001-08B.02 | AH1301010802 |
| Support assembly | AH333009-08.02.00 | AH100102080200 |
| Short circuit Z1″-G1″ | AH36001-08.02 | AH1001010804 |
| Adapter connector Z1″ | AH36001-08B.04 | AH1001010805 |
| Adapter connector G1″-M33×2 | AH36001-08.03 | AH1001010806 |
| Adapter connector ZG2-1/2″ | AH33001-08A.07 | AH1001010807 |
| Short circuit ZG2 1/2″-Z2 1/2 | AH36001-08C.04 | AH1001010808 |
| Flexible pipe Φ22×Φ37 | 140501010220100000 | 140501010220100000 |
| Gladhand Φ22×Φ37 | AH33001-08.18.00 | AH100101080900 |
| 90°Elbow Z1" | AH33001-08.16 | AH1001010810 |
| Junction plate | AH33009-08.03 | AH1001020803 |
| Water tank | AH36001-08C.01.00 | AH130101080400 |
| Tank cover | AH36001-08C.02.00 | AH100101081300 |
| Adapter connector NPT2 1/2″ | T513-1004 | T513-1004 |
| Gasket | AH36001-08B.09 | AH1001010814 |
| Flange Z1″ | AH36001-08B.10 | AH1001010815 |
| Fastening screw M8×25 | 420103028308002000 | 420103028308002000 |
| Bead apex A-3708 | 140301012037080000 | 140301012037080000 |
| Pipe clamp NO：3 | 61401010380000000 | 61401010380000000 |
| Flexible pipe Φ38×Φ53 | 140501010380305000 | 140501010380305000 |
| 90°Elbow ZG2 1/2″ | 520207050400650000 | 520207050400650000 |
| Bolt 5/8-11UNCX1 1/8 | T50-1029 | T500-1029 |
| Spring washer 16 | GB93-87 | 420503011161600000 |
| Flat washer 16 | GB95-85 | 420501046160100000 |
| Bolt 1/2-13UNCX1 5/8 | T50-1004 | T500-1004 |
| Spring washer 14 | GB93-87 | 420503011141600000 |
| Flat washer 14 | GB96-85 | 420501046140100000 |
| Bolt 1/2-13UNCX2 1/4 | T50-1005 | T500-1005 |
| Nut 1/2-13UNC | T51-1001 | T501-1001 |
| Centrifugal spray pump | AH36001-08B.11.00 | AH100101081600 |
| Stainless steel internal thread ball valve G1" | 441305011104164000 | 441305011104164000 |
| Support | AH36002-08.02.00 | AH130102080200 |
| F-1300/1600 Suction Pulsation Dampener Assy | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Suction air chamber assembly | AH33001-05.35A.00 | AH0000050100 |
| Capsule | AH33001-05.35A.02 | AH0000050101 |
| End cover | AH33001-05.35B.03 | AH0000050102 |
| F-1300/1600 Discharge Filter Assembly | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Shell | AH34004-18.01 | AH1001021101 |
| The filter assembly | AH36001-19.01.00 | AH100101190200 |
| O-ring 165x7 | 530301011650070000 | 530301011650070000 |
| Double armed bolt 1 1/2-12UNF/1 1/2-8UNCX5 1/4 | T50-6007 | T500-6007 |
| Nut 1 1/2-8UN-2B | T51-2001 | T501-2001 |
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| General drawing | AK75350200 | AK75350200 |
| Backing ring | T58-5001 | T508-5001 |
| Bottom blug | AH33002-02 | AK75350101 |
| Air bag | AH33002-03.00 | AK7535010200 |
| Shell assembly | AH33010-01.00 | AK7535020100 |
| Cover | AH33010-02A | AK75350202 |
| 3 way 1/4″ | T511-2001 | T511-2001 |
| Adapter connector 1/4″ | AH33002-07 | AK75350106 |
| Pressure gauge cover assembly | AH33010-03.00 | AK7535020300 |
| Air release valve | PJC1-L8 | AK7535010001 |
| KB-75 Pulsation Dampener Assy | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Double scale pressure gauge 0-25MPa NPT1/4 | Y60 | 380202052250006000 |
| Angle stop valves | JZR3-L8 | AK7535010002 |
| Backup ring | T514-1001 | T514-1001 |
| Double armed bolt 1 1/2X4 3/4 | T50-6002 | T500-6002 |
| Nut 1 1/2-8UN | T51-2001 | T501-2001 |
| Double armed bolt 1 1/4X4 1/4 | T50-6003 | T500-6003 |
| Nut 1 1/4-8UN | T50-2002 | T500-2002 |
| PULSATION DAMPENER PNEUMATIC HOSE ASSEMBLY | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| PULSATION DAMPENER PNEUMATIC HOSE ASSEMBLY | AH33001-31.10.00A | AH100102130100 |
| Nut G5/8″ | AH33001-31.10.01A | AH100102120101 |
| Seal joint | AH33001-31.10.02A | AH100102120102 |
| C type connector hose M14×1.5 | 520901050030080000 | 520901050030080000 |
| Adapter connector | AH33001-31.10.03 | AH100101210703 |
| Gaskets | AH33001-31.10.04 | AH100101210704 |
| Pipe plug | AH33001-31.10.05 | AH100101210705 |
| JA-3 Shear safety valve | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Shear safety valve | AH33007-00 | AH0000060200 |
| Adapter connector | AH33003-01 | AH0000060101 |
| Bead flange | AH33003-02 | AH0000060102 |
| Piston assembly | AH33003-03.00 | AH000006010300 |
| Valve body | AH33003-04 | AH0000060104 |
| Piston rod | AH33003-05 | AH0000060105 |
| Crash pad | AH33003-06 | AH0000060106 |
| Elastic cylindrical pin | AH33003-07 | AH0000060107 |
| Locking spring | AH33003-08 | AH0000060108 |
| Safety valve | AH33003-09 | AH0000060109 |
| Shear plate | AH33003-10 | AH0000060110 |
| Shear pin | AH33003-11A | AH0000060111 |
| Warning nameplate | AH33003-12B | AH0000060201 |
| Pin roll | AH33003-13 | AH0000060113 |
| Steel cable baffle ring | AH33003-14 | AH0000060114 |
| Nameplate | AH33003-15A | AH0000060202 |
| Cotter 4×26 | GB91-86 | 420703020504002000 |
| Nut M4 | GB41-86 | 420402080040200000 |
| Screw M4×16 | GB67-85 | 420101021104001000 |
| Bolt 3/8-16UNCX4 1/4 | T50-1016 | T500-1016 |
| Nut 3/8-16UNC | T51-1005 | T501-1005 |
| Screw M3×8 | GB67-86 | 420101020703000000 |
| F1300/F1600 Tools attachment | ||
| Name of the product | Old model | Model |
| F1300/F1600 | F-1300/F1600 | |
| Tools attachment | AH1301021000 | AH36002-10.00 |
| Cylinder liner lifting tool | AH130102100100 | AH36002-10.01.00 |
| Cylinder head rod | AH100101210100 | AH36001-17.02A |
| Sleeve 2 3/8" | AH1001012108 | AH36001-17.04 |
| Sleeve 2 " | AH1001012109 | AH36001-17.05 |
| Sleeve 3 5/8" | AH1301011602 | AH36001-17.06 |
| Sleeve 1 1/2" | AH1301011603 | AH36001-17.08 |
| Reducer union | AH1301011604 | AH36001-17.09 |
| Extension bar 19 5/8" | AH1301011605 | AH36001-17.10 |
| Extension bar 8" | AH1001012110 | AH36001-17.11 |
| Adapter connector1" | AH1001012111 | AH36001-17.12 |
| Reinforcing bar 24" | AH1001012112 | AH36001-17.13 |
| Hand chain hoist SH1/2 | 390101010100500000 | JB560-64 |
| Manual hydraulic pump 70MPa | 512605040000117000 | PSH-Ⅱ |
| Air bag is inflated hose assembly | AH100102130100 | AH33001-31.10.00A |
| Hydraulic pull valve | AH130101160600 | AH36001-17.15.00B |
| Packing guide sleeve | AH1301011607 | AH36001-17.24 |
| Transition taper sleeve | AH1301011608 | AH36001-17.17 |
| Pressure sleeve | AH1301011609 | AH36001-17.18 |
| Long sleeve | AH130101161000 | AH36001-17.20.00 |
| Plug board extractor | AH130101161200 | AH36001-17.22.00 |
| Short screw | AH1301011613 | AH36001-17.25 |
| Hanging seat | AH1301011614 | AH37005-08.01.03 |
Contact Us
- Jinan Purite Petroleum Equipment Co., Ltd.
- Contact nameTom Chat Now
Product Categories
New Products
-
Eaton Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
-
Winch Clutch, Push Plate Clutch ATD124 ATD224 ATD324 ATD136 ATD236 ATD336
-
F500 F800 F1000 F1300 F1600 Mud Pump Cylinder Sleeve Bimetallic Liners
-
Atd Push Plate Clutch Atd118/ATD218/ATD318, Atd124/ATD224/ATD324, Atd327, Atd230/ATD330/236, Atd214/ATD314
Popular Searches
- water pump
- centrifugal pump
- sand casting
- drilling machine
- drilling equipment
- sewage pump
- slurry pump
- drilling tool
- screw pump
- petroleum equipment
- downhole motor
- suction pump
- drilling rig
- dredge pump
- sand pump
- drilling mud pump
- mud slurry pump
- piston mud pump
- centrifugal mud pump
- sand slurry pump
- dredging pump
Recommended Products
- PDC Hybrid Bit
- PDC Core Bit
- PDC Directional Bit
- Russia Unbt950 Unbt1180L Mud Pump Cylinder Sleeve Bimetallic Liner Bushing
- Bimetallic Liner for F-1300/1600, 3NB1300/1600F, LGF3161-05.21G Liner
- F500F800F1000 F1300 F1600 Mud Pump Accessories, Bimetallic Cylinder Liner, Ceramic Cylinder Liner, Piston Assembly, Valve Assembly
- Atd Push Plate Clutch Atd118/ATD218/ATD318, Atd124/ATD224/ATD324, Atd327, Atd230/ATD330/236, Atd214/ATD314
- Atd Push Plate Clutch Atd118/ATD218/ATD318, Atd124/ATD224/ATD324, Atd327, Atd230/ATD330/236, Atd214/ATD314
- F500 F800 F1000 F1300 F1600 Mud Pump Cylinder Sleeve Bimetallic Liners
- Winch Clutch, Push Plate Clutch ATD124 ATD224 ATD324 ATD136 ATD236 ATD336
- Eaton Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
- Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436
Find Similar Products By Category
- Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Petroleum Machinery Parts
Product Tags:
Jinan Purite Petroleum Equipment Co., Ltd.
Business license
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Jinan Purite Petroleum Equipment Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
Tom
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
