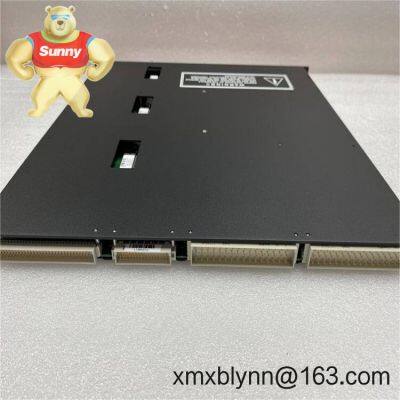

TRICONEX 3601T – System Termination Assembly for Tricon TMR I/O

The 3601T is typically deployed wherever a Triconex TMR controller handles safety or critical control I/O. Common setups include:

• Emergency Shutdown (ESD) and Process Shutdown (PSD) panels in oil & gas and petrochemical plants

• Fire & Gas (F&G) detection loops and voting logic interfaces

• HIPPS skids and pipeline protection systems needing certified safety wiring practices

• Power generation turbine controls and BOP safety interlocks

• Refining, chemical, and pharma units where clean marshalling reduces turnaround time

• Reliability you can audit – Stable terminations reduce intermittent faults that are hard to chase during startups.

• Lifecycle-friendly – Works within the established Triconex ecosystem, which seems to be one reason many sites standardize on it.

• Faster commissioning – Channel mapping and clear labeling cut loop-check time; we’ve seen teams trim hours off FAT/SAT windows.

• Lower maintenance risk – Field technicians can isolate and re-land cables without removing the I/O card, minimizing exposure to the controller.

• Procurement simplicity – Compatible spares and consistent terminal layouts streamline kit lists for shutdowns.

• Cabinet environment – Mount in a clean, ventilated control or marshalling cabinet; keep ambient within the typical 0–60 °C range and avoid condensation.

• Wiring practices – Use appropriately rated industrial cables; maintain shield continuity and bond at the designated point per site standards.

• Routing and segregation – Separate low-level analog from high-noise discrete/solenoid lines where feasible; follow earthing rules to reduce ground loops.

• Tightening and inspection – Re-torque terminal screws at scheduled intervals; check for oxidation and re-terminate if necessary.

• Documentation – Match each terminal to the I/O channel list and as-built drawings; label changes immediately to avoid drift between P&IDs and the cabinet.

• Firmware – As a passive termination, there’s no firmware; any updates apply to the associated Triconex controller or I/O module.

• Manufactured under ISO 9001 quality systems (typical for the TRICONEX platform)

• CE conformity and UL/CSA recognition commonly available for Triconex system components

• RoHS compliance in most regions; check project-specific requirements

• Standard manufacturer warranty applies; extended service and spares programs available upon request

If you’re matching the TRICONEX 3601T to an existing I/O card revision, share your module part number and channel count. We’ll confirm cable pinout, terminal style, and mounting details so the panel lands right the first time.
