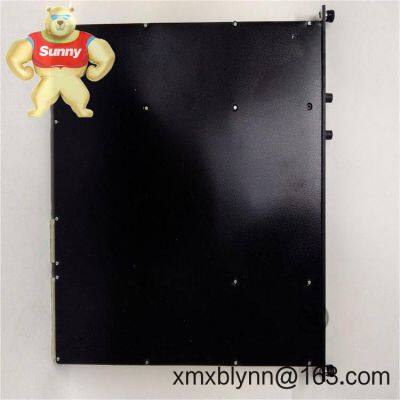

TRICONEX 4211 – TMR Analog Input Module for Safety?Critical Process Measurements

Plants typically deploy the TRICONEX 4211 where safety and uptime must coexist: oil & gas processing, petrochemicals, pipelines, power generation, and pharmaceuticals. It fits well for acquiring critical variables from 2?wire loop transmitters—level in separators, furnace draft pressure, gas flow to turbines, valve position feedback, or temperature loops tied to burner management.

• Emergency Shutdown (ESD) and High?Integrity Pressure Protection Systems (HIPPS)

• Burner Management Systems (BMS) and furnace/boiler protection

• Compressor anti?surge and turbine protection loops

• Tank overfill prevention and custody?related monitoring (as an input path)

A maintenance lead at a gas processing site mentioned that swapping a 4211 took “minutes instead of hours,” and the built?in diagnostics flagged a miswired loop straight away—small win, but it saves a cold?start in many cases.

• Proven reliability – Runs within the Tricon TMR framework, which helps the system ride through single faults without process trips.

• Lifecycle compatibility – Works with established Tricon chassis and engineering tools, easing spares management and migrations.

• Lower maintenance effort – Hot?swap design and clear channel status typically shorten outage windows and reduce test time.

• Procurement confidence – Widely installed base; documentation and field support are straightforward to obtain.

• Cabinet environment – Mount in a Tricon chassis inside a clean, ventilated panel; keep ambient within the specified temperature range and avoid condensation.

• Wiring – Use shielded twisted pair for 4–20 mA loops; ground shields at one end only. Segregate analog from high?voltage or high?frequency cables.

• Termination – Land field wires on the approved termination assembly for the 4211; verify pinouts before energizing loops.

• Hot?swap practice – The module is designed for online replacement, but verify redundancy state and follow site MOC/LOTO procedures.

• Routine care – Periodic loop checks, input range verification, and cleaning of card edges/vent paths. Apply firmware updates in coordination with the DCS/SIS change plan.

• Proof?testing – Align with your SIF proof?test interval; record diagnostic coverage and any bypass conditions to meet SIL targets.

• Designed for use in IEC 61508 SIL3 Tricon safety systems (TüV certification is typically applicable at the system level).

• Meets common EMC and safety directives; CE and UL/CSA markings are commonly available for Triconex modules.

• RoHS?aligned manufacturing for many revisions.

• Manufacturer’s standard warranty: typically 12 months; extended coverage available through service agreements.

Note: Specifications can vary by hardware revision and project BOM. If you share the exact part code and hardware series, I can align channel count and input ranges to your installed base precisely.
