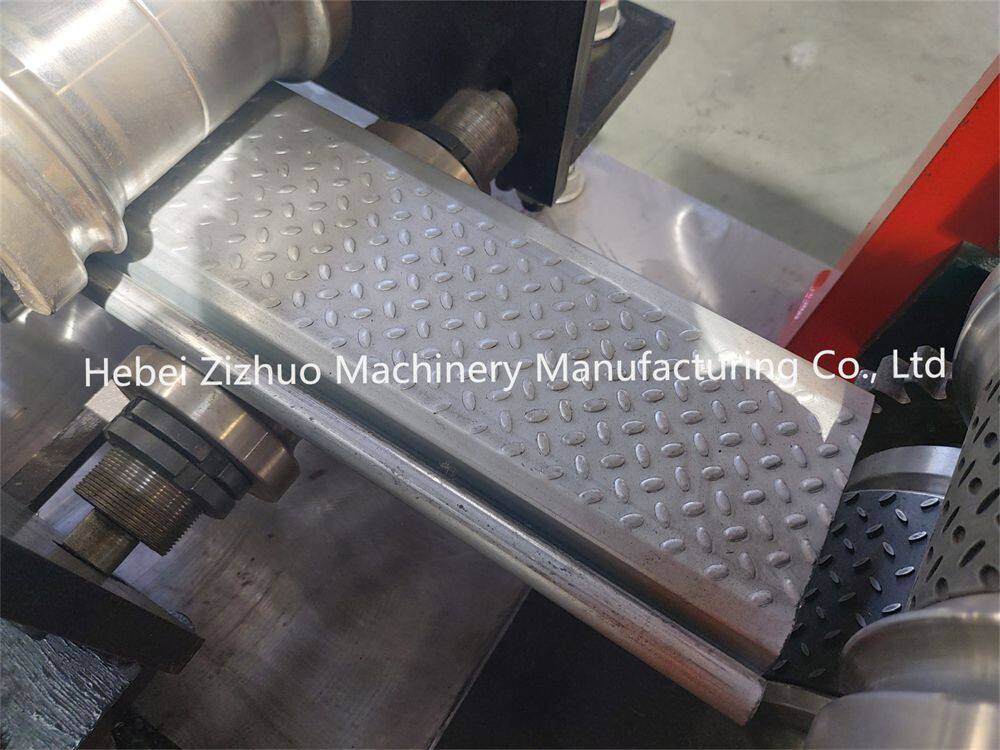

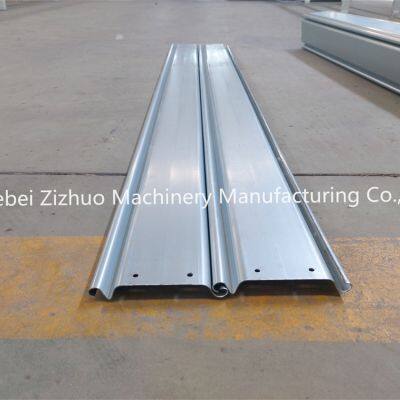

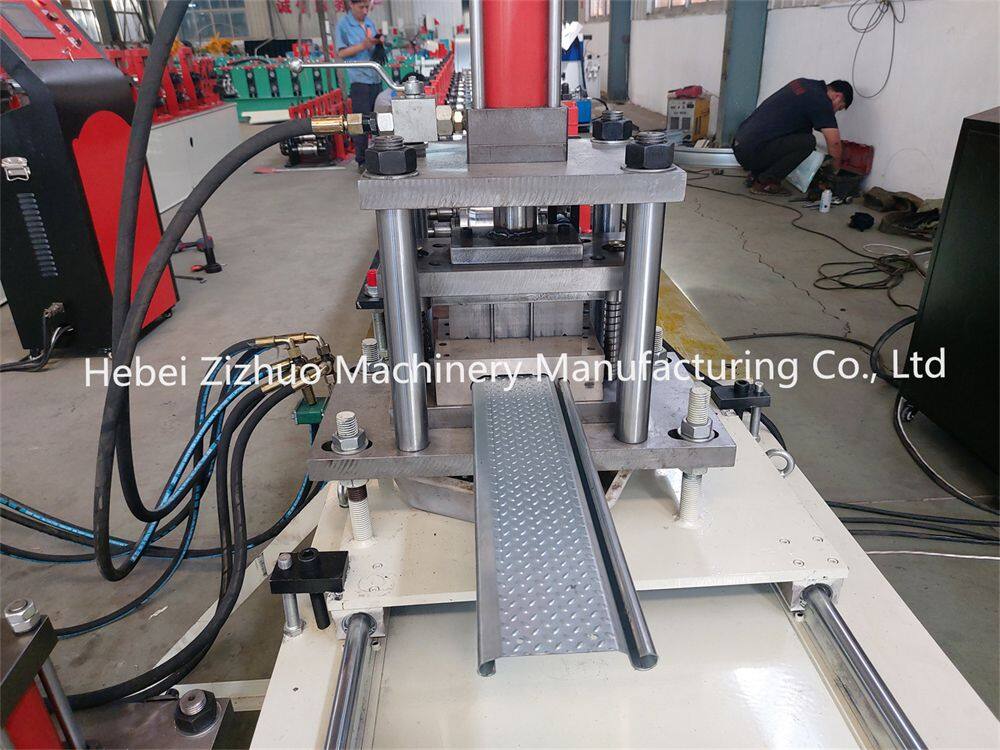

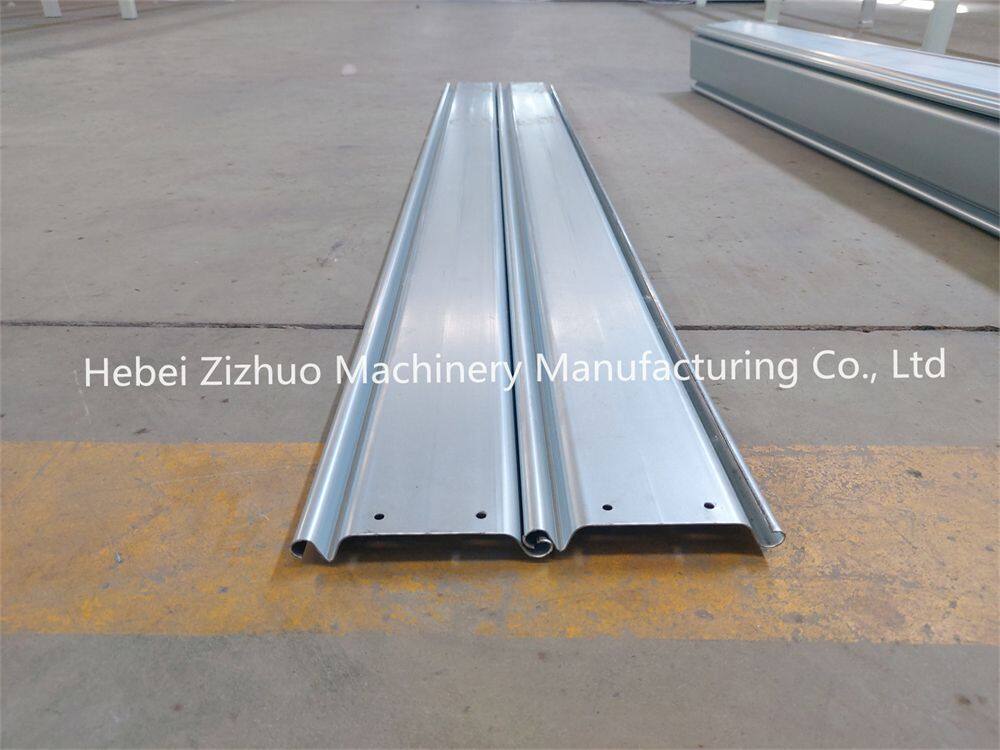

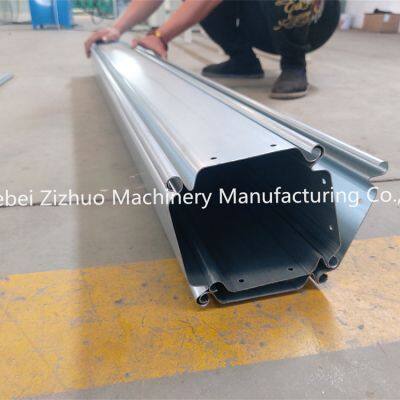

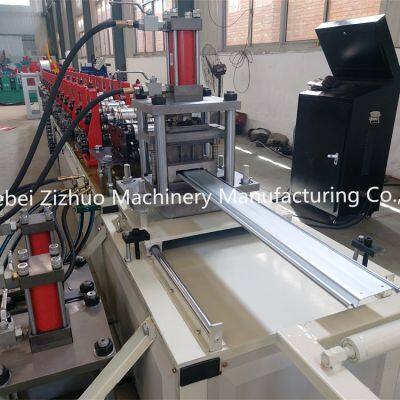

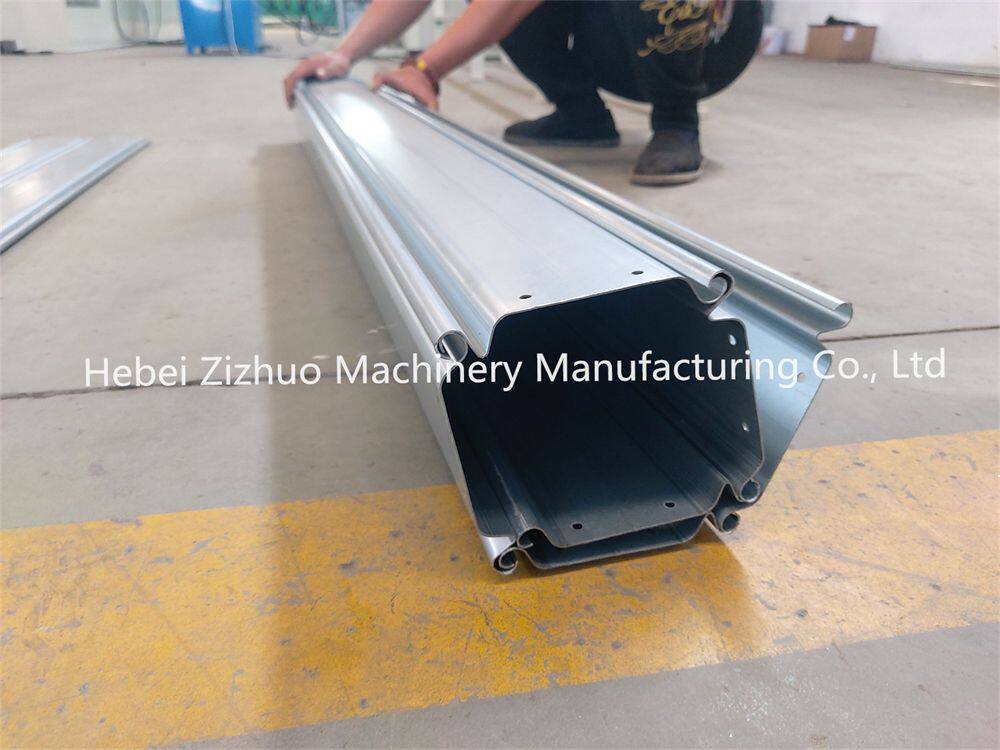

Galvanized steel roll up shutter door slat roll forming machine

1. Technical parameter and accessories

Parameter		Specification
1	Processing material	Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.
2	Certification	CE / BV / ISO / SGS
3	Voltage	AC 380V 50Hz 3Phases or as per your request.
4	Power	4kw main roll forming core + 4kw hydraulic station
5	Processing thickness	0.8-1.2mm
6	Feeding width	According to your profile drawings.
7	Output width	According to your profile drawings.
8	Diameter of shaft	Φ40mm (Solid shafts)
9	Roller stations	10 rows of rollers
10	Machine size	About 5.2m * 1.0m * 1.5m
11	Machine weight	About 1800 kgs
12	Productivity	About 10-15 m/min
13	Roller material	Cr12 mould steel with quenched treatment
14	Cutter material	Cr12 mould steel with quenched treatment
15	Screw	Galvanized national standard
16	Control system	Delta PLC (made in Taiwan province of China.)
17	Drive method	Chain transmission
18	Electron component	Schneider
19	Encoder	Omron

2. Processing flow chart

●Uncoiling→Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving

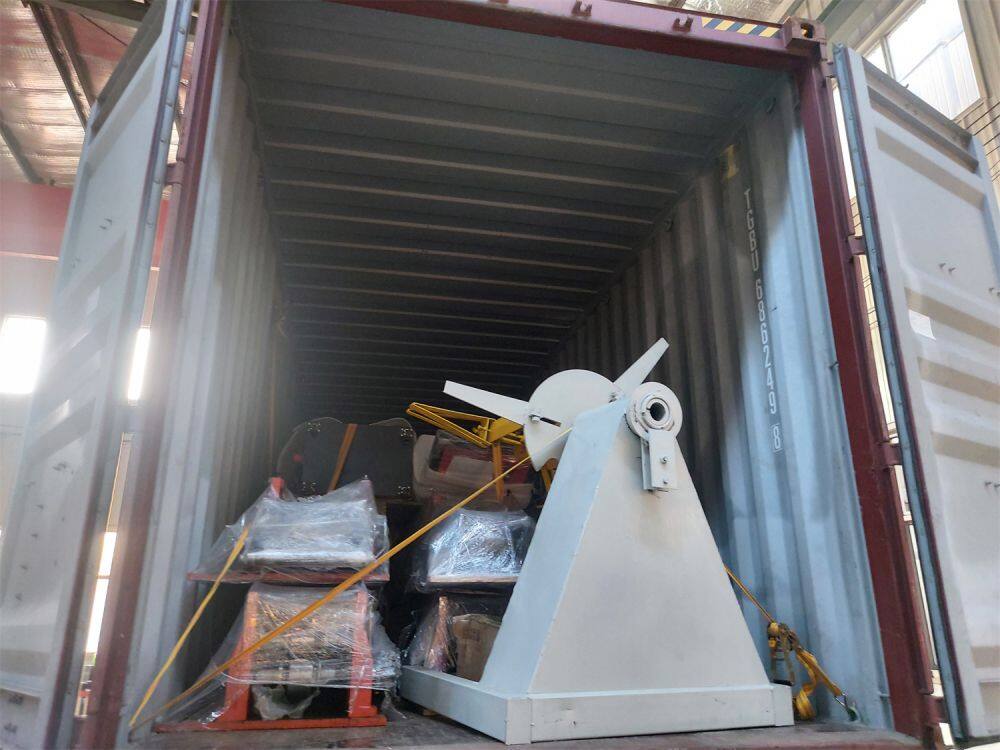

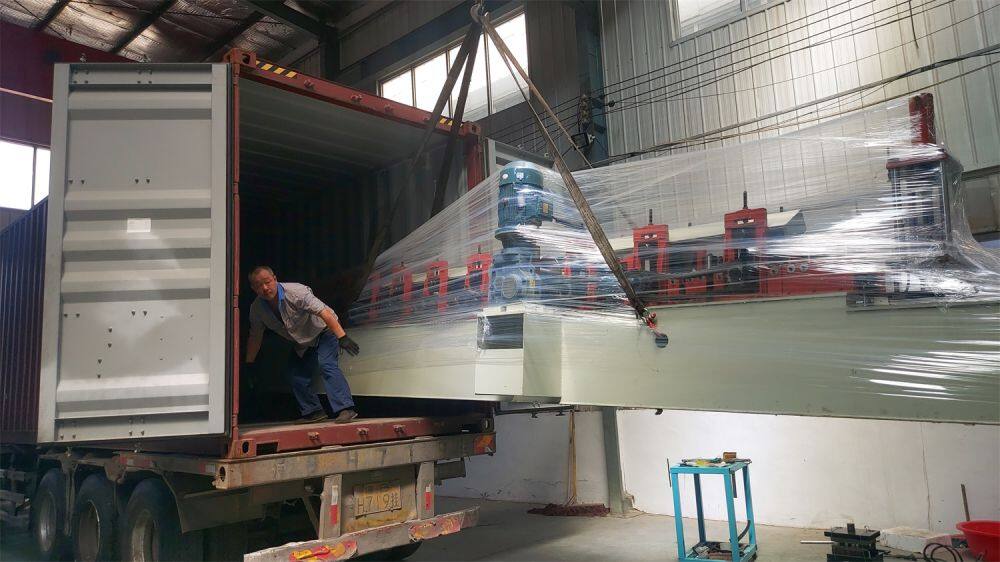

Loading machines to Morocco
