Steel C Z interchangeable purlin C Channel Building Material Cold roll forming machine

FOB Price

US$ 31000 - 40000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

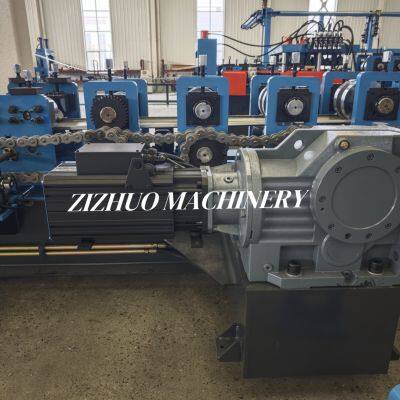

Full automatic C Z interchangeable purlin Cold Roll Forming Machine

C & Z interchangeable purlin roll forming machine

Online punching station

Servo motor drive

Profile Drawings For Reference

Working Flow

De-coiler->Leveling Device->Punching Device (Regular Holes) ->Roller Forming Machine->Hydraulic Cutting Device->Product Stand Tables

Technical Parameter

No.	Item		Parameter
1	Size	Material Thickness	1.5-3.0 mm
1	Size	Product Size	Width : 80 - 300 mm Height : 40 - 80 mm
2.	De-coiler Specs	Type	passive type
		Max. Capacity	3Tons
		Coil ID	508mm
		Max. Coil OD	≤1000mm
		Max. Coil Width	≤300mm
3.	Machine Specs	Forming Speed	6 - 8M/Min
		Forming Stations	16-18 Stations
		Roller Material	GCr15 Steel
		Shaft Diameter	85 mm
		Shaft Material	40Cr
		Forming Structure	Guiding Column
		Base Frame	H-Section Steel Welding
		Driven System	Hydraulic motor
		Hydraulic Motor Power	22 KW--------------1Set
		Hydraulic Motor Brand	TILORMS
		Cutting Power	5KW
		Cutting Tolerance	±2mm
		Installation Dimension	20~25M*2M
		Machine Weight	About 10 Tons
4.	Computer Box	PLC	Delta
		Frequency Converter	Delta
		Encoder	Omron
		Touch Screen	10 inch
		Button	Emergency Stop
5.	Paint	Base Paint	Anti-rust
5.	Paint	Surface Paint	As customer’s request
6.	Others	Electric motor overloads protection
		Short circuit protection
		380V/50HZ/3Phase (depend on clients’ need )
