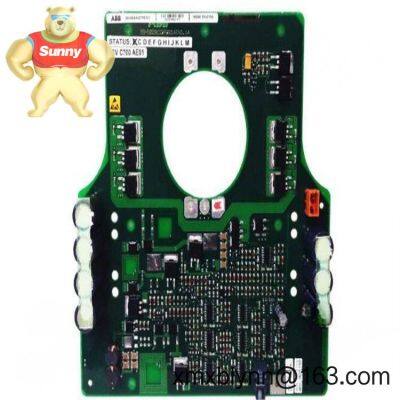

ABB 3BHB004027R0101 IGCT Gate Unit – Reliable drive control for medium-voltage power stacks

The ABB 3BHB004027R0101 IGCT gate unit is designed to drive high-power IGCT devices in medium-voltage drives and converter stacks. From my experience, it’s typically found in ABB MV drive platforms where stable gate control, fiber-optic isolation, and robust protection logic are essential. If you’re maintaining aging assets or standardizing spares, this module helps keep critical compressors, pumps, and test benches running with minimal downtime.

• IGCT-optimized gate driving – Provides the high-current, fast-rise gate pulses IGCTs require for low losses and reliable turn-off.

• Fiber?optic triggering and feedback – Typically uses optical links for galvanic isolation, noise immunity, and clean timing between control and power stages.

• Integrated protection logic – Fault detection and interlocks appear to be built-in to protect the device during abnormal conditions.

• Isolated low?voltage power – Usually powered from a 24 VDC control supply with onboard isolation to the high?energy stack environment.

• Rugged construction – Conformal-coated PCB and industrial connectors suited to cabinet installations with vibration and electrical noise.

• Service-friendly design – Clear status indication and modular connectors help maintenance teams swap units quickly.

This gate unit is commonly deployed in medium-voltage variable frequency drives, multi-pulse converters, and power quality systems where IGCTs are preferred for efficiency and robustness. You might notice that plants with large synchronous or induction motors—compressors, pipeline pumps, induced-draft fans—often rely on this class of hardware.

• Oil & Gas and Petrochemical MV drives (ACS-series platforms)

• Metals, mining, and cement process lines with high-inertia loads

• Power quality equipment such as SVC/STATCOM-type converters (IGCT-based)

• Large test benches and grid-connected converters in R&D facilities

• High reliability in harsh cabinets – Fiber isolation and robust protection logic reduce nuisance trips in electrically noisy rooms.

• Compatibility with ABB MV stacks – In many cases drop-in for designated positions, minimizing retrofit effort.

• Lower total downtime – Modular swap, straightforward fiber routing, and quick checks lead to faster turnaround.

• Lifecycle support – Typically supported with repair/exchange programs, easing spares management for mature installations.

A maintenance lead at a steel mill told us their 3BHB004027R0101 swap took “about 20 minutes from lockout to power-up,” which seems to be consistent with what we see in most cabinets that are neatly wired and labeled.

• Cabinet environment – Mount within the specified MV power stack location; ensure ambient 0…55 °C and adequate ventilation around the heat paths.

• Wiring and fibers – Route fiber?optic cables with gentle bends; keep clear of high?dv/dt busbars. Verify TX/RX polarity and cleanliness of ferrules.

• Control power – Supply a clean 24 VDC control feed (typical). Use the dedicated isolated input specified for the gate unit.

• Safety and ESD – Lockout/tagout the drive, discharge DC links, and handle the PCB with ESD protection. Never hot?swap in energized stacks.

• Routine checks – Inspect connectors and fibers quarterly, confirm tight fasteners, and review fault logs after trips. Firmware/config alignment with the host controller should be verified after any replacement.

• Calibration – No routine calibration is usually needed, but timing/threshold checks may be part of annual preventive maintenance in critical lines.

• CE compliant; RoHS-conform construction for electronic assemblies

• Manufactured under ISO 9001 quality systems (typical for ABB facilities)

• UL/CSA recognition often applies at the system level; treat this board as a component

• Standard manufacturer warranty is commonly 12 months for replacement units

If you’re aligning spares, we usually recommend keeping at least one 3BHB004027R0101 per MV lineup plus a spare set of fiber jumpers. It helps teams respond quickly, especially during seasonal production peaks.
