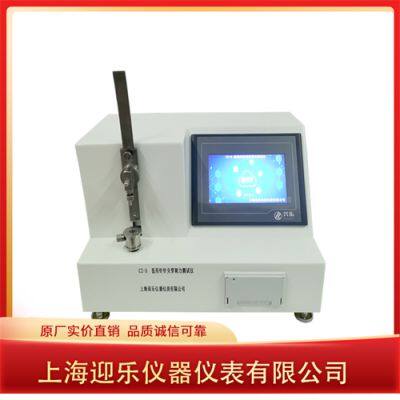

ISO7864 standard medical needle needle tip puncture force testing instrument

ISO7864 standard medical needle needle tip puncture force testing instrument

Technical indicators: Operation interface: Simplified Chinese/English Testing standard: ISO7864-2016 "Disposable Sterile Subcutaneous Injection Needle" GB15811-2016 "Disposable Sterile Injection Needle" : 7-inch K600  core/matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically load value; Operation interface options: Chinese/English/Chinese and English switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code 00,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch operation: Nominal specifications, wall thickness, number of, pressure, up, down, time, calibration. Real-time display of puncture force and peak force data, can display the maximum puncture force and five kinds of peaks puncture force curve, etc. Programmable controller: PLC ARM, Nominal specifications: Custom 0.18～3.4mm; range: 0.01～50.00N, error within ±1%; Resolution: 0.01N Travel speed: 100mmmin; Error within ±5%; Set distance: 6mm~90mm Error within ±5% Sensor: High-precision force value sensor (software and hardware function) Puncturing force material: Polyurethane film material (artificial skin), in accordance with GB15811 standard; Printing method: Builtin pin printer Test data: Built-in automatic collection of puncture force data, maximum puncture force and automatic calculation of average puncture force and deviation value Overall power 200W Power supply: AC90V-240V/50Hz Net weight: 12kg Dimensions: 40×240×240 (mm)

Shanghai Yingle Instrument and Instrument Co., Ltd. has a product experience with a seasoned customer manager to consult with to develop a custom solution. Ensure that the product design plan is reasonable, the price is appropriate, and the quality is up to standard. The company has more than thirty years of experience and is the first domestic (shou) manufacturer of physical performance testing instruments for disposable medical devices, and is also the first (shou) company to obtain CMC. The company specializes in the production of medical consumable testing equipment, and its products mainly include medical needle testing instruments, medical syringe testing instruments, infusion set testing instruments,uture needle testing instruments, suture line testing instruments, medical device flow testing instruments, etc. With strong technical strength, rich manufacturing experience, high-quality products, and high- and reliable services, it has successfully won the high recognition of the market. At present, the cumulative number of customers has reached thousands, covering all provinces and cities in the country, the products are widely used in scientific research institutes, testing institutions, and major medical enterprises, schools, etc. With the concept of "innovation leading the future, service the brand", Yingle will continue to provide high-quality products, reasonable prices, and satisfactory services for the majority of users, and continue to innovate and strive excellence in the road of the testing industry, creating higher brand value.
