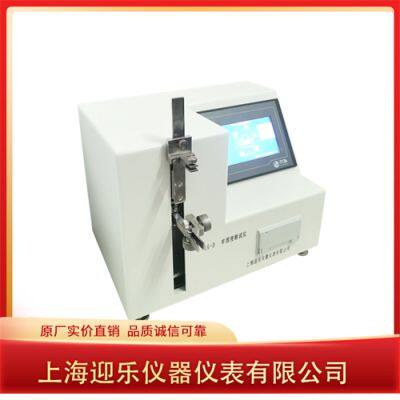

Injection needle strength tester

Injection needle strength tester

Technical indicators:

Operating interface: Simplified Chinese/English

Testing standard: GB15811-216 "Disposable Sterile Injection Needle"

          YY0321 Breaking force test

Display: 7-inch K600  core/ 65-color 800*480 resolution touch screen display, PLC control system dynamically displays load value; digital closed-loop control, AD acquisition speed of 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation: specifications, tests, up, down, time, calibration. Real-time display of traction force.

Testing items: Used to test the breaking force of medical catheters, firmness of the connection between catheters and catheter connectors, the firmness of the connection between needle seats and needle tubes, and the firmness of the connection between cores and liner core seats, etc. for tensile tests.

Programmable controller: PLC ARM,

Tensile force test range: Custom 0-80, error within ±1%, resolution 0.01N.

Time setting: Custom 1-999S, error within ±0.5S.Speed setting: Custom 50mm/min~500mm/min, error within ±5%.;

Sensor: High-precision force value sensor (software hardware protection function)

Printing method: Built-in miniature dot matrix printer

Testing data: Built-in automatic collection of firmness test data, maximum value and average value deviation value of firmness, etc.

Overall power: 200W

Power supply: AC90V-240V/50Hz

Net: 20kg Dimensions: 400×240×240 (mm)
