GRP Pipe Ring Stiffness Testing Machines
- Tianjin
- T/T L/C Western Union Other
You May Like
-
Fiberglass Composite Utility Poles Power / Electric /5g /Transmission Tower
-
GRP Pipes Continuous Filament Winding Machine
-
FRP (Fibreglass) Upground Water Chemical Storage Tanks Manufacturing Filament Winding Machine
-
GRP Pipe Jointing Method -Nylon Locking Key
-
Composite Hydrogen Cylinder Manufacturing Filament Winding Machine
-
GRP FRP Storage Tank Manufacturing Filament Winding Machine
Product Details
| Type | Other, Stiffness | Warranty | 360days | |
| Weight | >2000Kg | Power Source | AC380V | |
| After-sales Service | 360days | Accuracy Grade | Other, 0.2 | |
| Max Diameter of Workpiece | >3200mm | Mass Scope of Workpiece | 3000kg | |
| Maxcapacity | Other, 100kN | Load Way | Electronic Load | |
| Oil Cylinder Position | Other | Control | Computer Control | |
| Loading Method | Dynamic Load | Display | Digital | |
| Maximum Diameter | DN4000mm | Maximum Capacity | 65 kN | |
| Test Procedure | According to ISO7685,ASTM D2412,En1228,D | Transport Package | in Bulk | |
| Specification | VTT | Trademark | Vidatech | |
| Origin | China |
Product Description

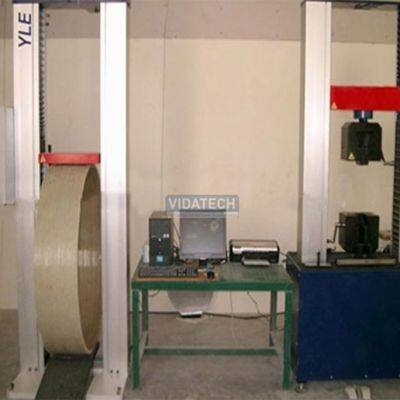

Ring Stiffness Testing machine with electronic ring loader for max.DN4000mm GRP Pipe.
General description:
For testing initial specific ring stiffness of small and big diameter GRP pipes Ring stiffness is important performance parameter, indicate the ability of resistance to deformation of the pipe, under the external loads (such as soil, hydrostatic and flow pressure). If, excessive deformation caused by external forces, will cause pipeline rupture, the entire pipeline failure. Control pipe ring stiffness is necessary.
This equipment could meet test specimens to maximum diameter DN4000mm, maximum capacity 65 KN.
Advantage:
Standard:
Test procedure according to ISO7685,ASTM D2412,EN1228,DIN1228,DIN53769-3,BS5480
