Filament Winding Machine for Fiberglass Reinforced Plastic Tank 500, 1000, 2000, 300liters

FOB Price

US$ 5000 - 100000 / Unit

1 Unit(Min. Order)

Port Tianjin
Payment TermsT/T L/C Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Warranty	360days	After-sales Service	360days
Transport Package	in Bulk	Specification	VHT
Trademark	Vidatch	Origin	China

Product Description

Filament winding machine for Fiberglass Reinforced Plastic Tank 500,1000,2000,300liters

General Description

This filament winding machine is specially design for small scale and medium size type FRP tank. Single unit machine. With semi-sphere domes on both sides, then combine with resin.

Application:

widely used in the industry chemical storage
crude oil
food processing
silo storage for grain
Scrubbers

Standard:

ASTM D3299-88 for filament winding glass fiber reinforced thermosetting resin chemical resistant tank
HG T20696-1999 for FRP equipment design for chemical industry.

Advantage:

1.    Easy and convenient operation, and computer control system.
2.    Keep low consumption of the raw materials.
3.    Experienced tank produciton technology assitant.

Technical Specification

1	Vertical Tank	VHT
2	Length(mm)	12000
3	Diameter(mm)	DN1000-4000
4	Product Height(mm)	800 -11000
5	Product volum(cmb)	1-120
6	Product Weight(kgs)	150-6200
7	Winding pattern	Hoop √ Helical √ ( converted automatically)
8	Corollary equipment	Liner making machine √
9	Winding angle	45°-90°
10	Fiber drawing speed	≤100m/min
11	Fiber band width	0-100mm
12	Transmission system	gear & rack
13	Operation method	Manually √ Semi-auto √ Automatically √
14	Motor brand	ABB
15	Speed reducer brand	NORD
16	Frequency converter brand	SIEMENS
17	Computer control system	ADVANTECH
18	Software program	√
19	Operation system	Windows, Chinese/English interface menu
20	Technical Documentation	Machine operation manual √ Machine maintance manual √ Darwing of standard parts,wearing part and assembly √ Computer software operation manual √
21	Machine guarantee expiry	One year
22	Installation Commissiong	√
23	Trail production train	Optional

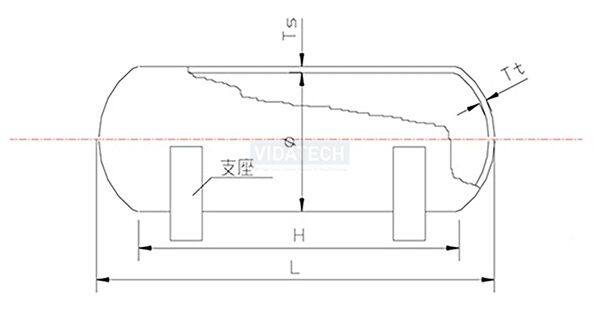

Horizontal Tank Parameter Table

Horizontal Tank Filament winding machine lay-out drawing Cantilever type

Mainly for tank's production

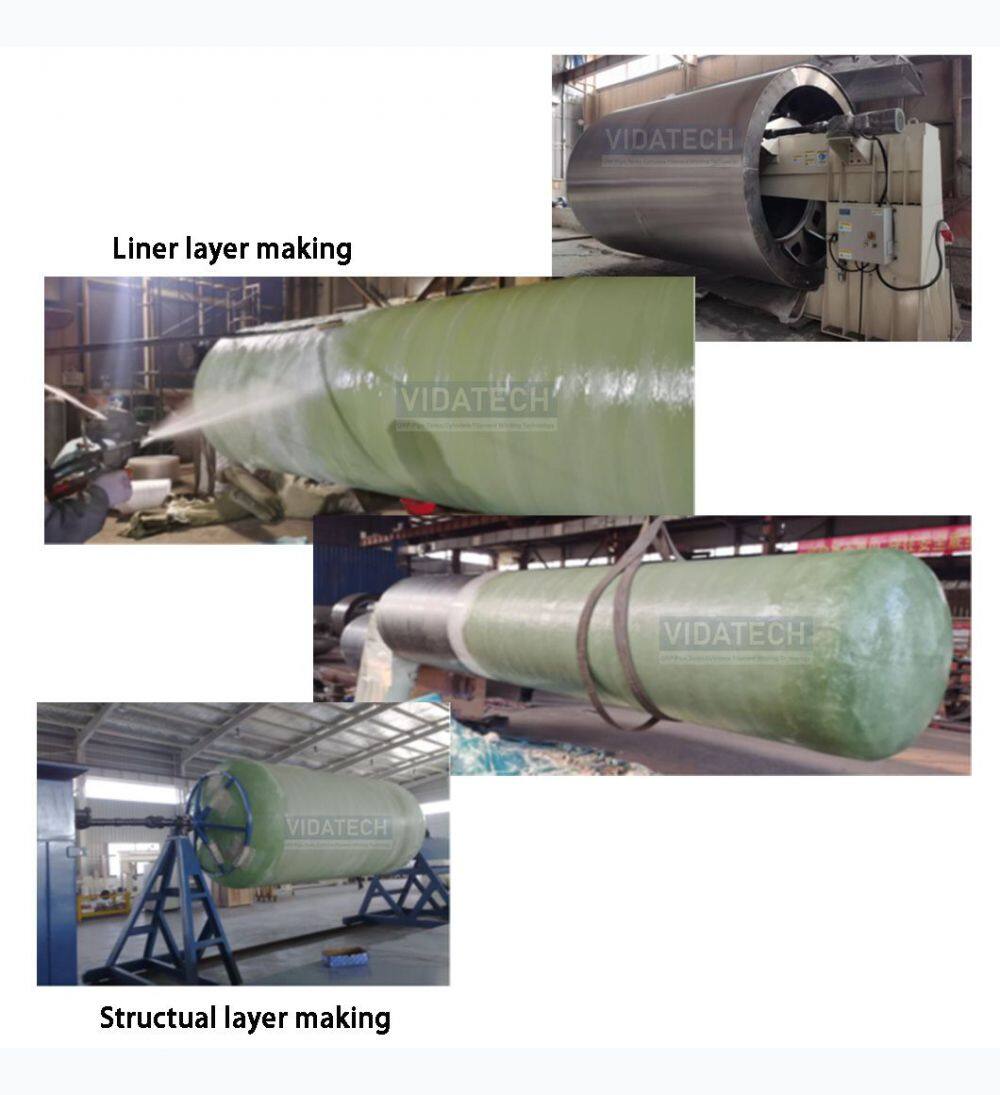

Production of tank's dome head, and tank shell.
Better for two tank jointing, not need tank's dome by hand-layup
Nice for appearance
