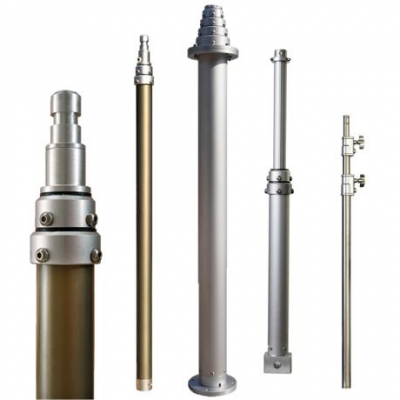

GD-6.5MC50 vehicle mounted pneumatic telescopic mast

When it comes to swiftly and reliably elevating antennas, radars, pan - tilt cameras, and other crucial equipment, the GD series pneumatic lifting mast from Hesheng Safety is a top - tier choice. The GD - 6.5MC50 model, in particular, combines robust construction with advanced pneumatic technology, offering exceptional performance in a variety of settings.

The GD - 6.5MC50 is crafted from high - strength aluminum alloy 6063 round tubes. These tubes are sleeved together to form the lifting mast, ensuring a seamless and sturdy structure. All structural components of the mast are made of aluminum alloy, which provides a perfect balance of strength and lightweight properties. This not only makes the mast durable enough to withstand daily use but also easy to handle and transport.

This pneumatic lifting mast is designed to serve as a reliable platform for mounting a wide range of equipment. Whether you need to elevate an antenna for improved signal reception, a radar for enhanced surveillance capabilities, or a pan - tilt camera for comprehensive monitoring, the GD - 6.5MC50 can handle the task with ease. Its versatility makes it suitable for various applications across different industries.

1. Compact Closed Height: With a closed height of just 1650mm, the GD - 6.5MC50 is highly portable and easy to store when not in use. Its compact design allows it to fit into tight spaces, making it ideal for applications where storage area is limited.

2. Impressive Extended Height: When fully extended, the mast reaches an impressive height of 6500mm. This significant elevation enables your equipment to operate at an optimal level, providing a wider field of view for cameras and better signal coverage for antennas and radars.

3. Optimized Tube Diameters: The mast features a maximum tube diameter of φ160mm and a minimum tube diameter of φ45mm. This carefully designed diameter range ensures a stable and rigid structure that can support heavy loads while maintaining its integrity during operation.

4. Generous Load Capacity: The GD - 6.5MC50 can safely carry loads of up to 50kg, making it suitable for mounting a variety of equipment. Whether you have a relatively lightweight antenna or a more substantial surveillance system, this lifting mast can accommodate your needs.

5. Moderate Self - Weight: Weighing approximately 70kg, the mast strikes a balance between stability and portability. While it provides a solid base for your equipment, it can still be moved and set up by a small team of operators without excessive effort.

6. Six - Section Construction: The mast consists of six sections, which can be easily extended or retracted using the pneumatic system. This multi - section design offers flexibility in adjusting the height of the mast according to your specific requirements, ensuring optimal performance in different scenarios.

7. Pneumatic Lifting Mechanism: The GD - 6.5MC50 utilizes a pneumatic lifting system, which provides smooth and rapid height adjustment. With the help of compressed air, the mast can be raised or lowered quickly and precisely, saving time and effort during setup and operation.

8. Wide Operating Temperature Range: The mast is designed to operate reliably in temperatures ranging from - 20℃ to + 55℃. This makes it suitable for use in a variety of climates, from cold winter conditions to hot summer environments, ensuring consistent performance throughout the year.

9. Extreme Storage Temperature Tolerance: In addition to its wide operating temperature range, the mast can also withstand storage temperatures from - 30℃ to + 65℃. This ensures that the mast remains in good condition even when stored in extreme temperature conditions, prolonging its service life.

10. Optional Accessories: To enhance the functionality and convenience of the GD - 6.5MC50, a range of optional accessories is available. These include an air pump for generating compressed air, an electromagnetic valve for controlling the air flow, a control switch for easy operation, and a spring wire for cable management. These accessories can be customized according to your specific needs, providing a tailored solution for your application.

11. Customizable Specifications: Hesheng Safety understands that different applications may have unique requirements. Therefore, the closed height, extended height, tube diameters, and load capacity of the GD - 6.5MC50 can be customized according to your specific needs. This flexibility allows you to obtain a lifting mast that perfectly matches your application, ensuring optimal performance and satisfaction.
