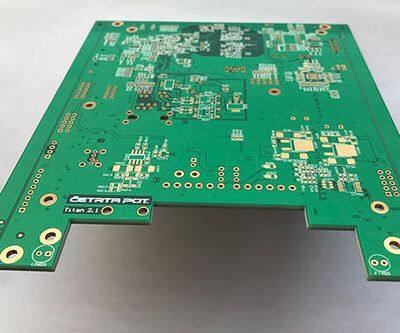

16 layer multi-layer circuit board PCB
- Huanggang Port, Shenzhen
- T/T L/C PayPal D/P Western Union Other
- 25 days
You May Like
-
10 layers, 3rd order multi-layer circuit board PCB
-
52 layers, 3rd order multi-layer circuit board PCB
-
Double layer transparent FR-4PCB,Multi layer FR-4 transparent PCB,Is the cost of producing multi-layer transparent circuit
-
6L flexible FPC second order
-
10L flexible FPC second stage
-
10 layer third-order HDI flexible FPC
Product Details
Material | Fiberglass Epoxy Resin + Polyimide Resin | Type | Combining Rigid Circuit Board | |
Application | Medical Instruments | Brand | China Guangdong Shenzhen | |
Flame Retardant Properties | V0 | Dielectric | FR-4 | |
Insulation Materials | Organic Resin | Processing Technology | Delay Pressure Foil | |
Mechanical Rigid | Fexible | Base Material | Copper | |
Transport Package | Vacuum packaging+moisture-proof beads+separated white paper+cardboard box+wooden card board | Specification | 145x125mm/1 * 1pcs | |
Origin | China Guangdong Shenzhen |
Product Description
Introduction to the entire production process of Chaosheng printed circuit board
Product Name: Communication Equipment Product Board: FR-4, TG150 Layers: 16 layer multi-layer circuit board PCB Minimum line width/spacing: 4/4mil Finished product size: 145x125mm/1 * 1pcs Surface technology: Sinking gold, red solder mask Copper thickness: 35um for inner and outer layers Plate thickness: 1.60mm Minimum aperture: 0.25mm, no laser hole/mm, Features: Difficulties such as communication equipment Usage: Engine, electric motor, inductor, orange equipment, etc Process Capability Table | ||||
Technical ltem | MassProduct | Advanced Technology | ||
2015 | 2021 | 2025 | ||
Max.Layer Count | 80 layer | 100 layer | 100 layer | |
PCB through hole board | 2~80 layer | 2~100 layer | 2~100 layer | |
Maximum size through hole 1~2 | 37〞*98.50" | 43.3〞*118.11" | 43.3〞*118.11" | |
Minimum line width and spacing | 10(0.40) | 10(0.40) | 7.50(0.30mm) | |
Minimum mechanical hole(mm) | 12(0.50) | 10(0.40) | 8.50(0.35mm) | |
Maximum size through hole 4~22 layers | 37〞*43.30" | 43.3〞*43.30" | 43.3〞*43.30" | |
Maximum size through hole 4~22 layers | 31.50 ″*59" | 31.50 ″*70.86" | 31.50 ″*70.86" | |
Maximum size through hole 4~22 layers | 10(0.40) | 10(0.40) | 7.50(0.30mm) | |
Minimum line width and spacing for multi-layer large-sized PCBs | 10(0.40) | 10(0.40) | 7.50(0.30mm) | |
Maximum size of multi-layer through- hole : 4-22 layers with the smallest hole | 12(0.50) | 10(0.40) | 8.50(0.35mm) | |
Maximum size HDI 4~36 layers | 31.50 ″*55" | 31.50 ″*55" | 31.50 ″*55" | |
Minimum line width and line spacing of large size PCB | Through hole 12 / 12milHDI14 /14mil | Through hole 10/10 milHDI12 / 12mil | Through hole 8 / 8milHDI12 / 12mil | |
The largest board ruler 1 → the smallest hole of 18 layers | Through hole 0.50mmHDI :0.45mm | Through hole 0.50mm HDI : 0.45mm | Through hole 0.50mmHDI : 0.45mm | |
The layer number of FPC | 1~36layer | 1~60layer | 1~60layer | |
Maximum size of flexible FPC | 19.68〞*55" | 28〞*59" | 31.49〞*118.12" | |
Maximum size of flexible FPC with soft hard combination | 19.68〞*55" | 28〞*59" | 31.49〞*118.12" | |
FPC (roll to roll) maximum size | 19.68 ″*7874" | 19.68 ″*7874" | 19.68 ″*7874" | |
Maximum size of FPC single chip shipment | 19.68 ″*118.11" | 19.68 ″*196.8" | 19.68 ″*196.80" | |
The layer number of FPC | 2~18 layer | 2~36 layer | 2~42 layer | |
Maximum size of layered board | 19.68 ″*35" | 19.68 ″*43" | 19.68 ″*43" | |
Number of through-hole layers | 2~20layer | 2~30 layer | 2~40 layer | |
Hard and soft HDI layers | 2~14 layer | 2~18 layer | 2~22 layer | |
Maximum size of soft and hard combination | 19.68 ″*43" | 19.68 ″*49" | 19.68 ″*49" | |
FPC/soft-hard combination arbitrary interconnection HDI | 4+X+4Interconnect HDI | 5+X+5Interconnect HDI | 6+X+6Interconnect HDI | |
HDIPCB layers | 4~36layer | 4~60layer | 4~80 layer | |
Anylayer HDI PCB | 4+X+4Interconnect HDI | 5+X+5、Interconnect HDI | 8+X+8、Interconnect HDI | |
HDIPCB maximum board size | 24"*52" | 43"*49" | 43"*49" | |
Number of through hole layers of high frequency board | 2~18 layer | 2~36 layer | 2~60 layer | |
HDI layers ofhighfrequency board | 2~16 layer | 2~24 layer | 2~60layer | |
Maximum size of high frequency board | 37 ″*43" | 43 ″*49" | 43 ″*49" | |
Number of ceramic plates | 1-2 layer | 1~4 layer | 1~6 layer | |
Ceramic plate thickness | 0.60mm-1.60mm | 0.38mm-20.0mm | 0.38mm-20.0mm | |
Maximum size of ceramic plate | 100*150mm | 150*190mm | 150*650mm | |
Minimum aperture of ceramic plate | 0.50mm | 0.35mm | 0.35mm | |
Minimum line width and line spacing of ceramic board | 16/16mil | 12/12mil | 10/10mil | |
Number of layers of metal copper substrate | 1-2 layer | 1~4 layer | 1~6 layer | |
Maximum line width and line spacing of metal iron substrate | 12/12mil | 4/4mil | 4/4mil | |
Number of layers of metal aluminum substrateHDI | 1-2 layer | 1~4 layer | 1~6 layer | |
Maximum size of metal substrate | 37 ″*43" | 25.59 ″*59" | 25.59 ″*59" | |
The smallest hole of the metal substrate | 0.50mm | 0.35mm | 0.35mm | |
Minimum line width and line spacing of metal substrate | 8/8mil | 4/4mil | 4/4mil | |
Transparent FR- 4 material layers | 1-2layer | 1-2layer | 1-8layer | |
Transparent FR-4 minimum hole | 0.35mm | 0.35mm | 0.35mm | |
Transparent FR-4 minimum line width and spacing | 4/4Mil | 4/4Mil | 3.5/3.5Mil | |
Transparent FR- 4 maximum size | 23.63*47.25″ | 23.63*47.25 ″ | 23.63*47.25 ″ | |
Number of tempered glass base layers | 1-2layer | 1-2layer | 1-2layer | |
Minimum line width and spacing of glass | 4/4Mil | 4/4Mil | 3.5/3.5Mil | |
The smallest hole in glass | 0.35mm | 0.35mm | 0.35mm | |
Maximum size of glass | 23.63*47.25″ | 23.63*47.25 ″ | 23.63*47.25 ″ | |
Number of layers of transparent PETmaterial | 1-2layer | 1-2layer | 1-2layer | |
Maximum size of transparent PET | 19.68 ″*7874" | 19.68 ″*7874" | 19.68 ″*7874" | |
The company's main product types | Halogen free materials, high TG materials, high-frequency materials, high-speed materials, metal materials, glass materials, embedded materials, transparent FR- 4 materials, high thermal conductivity metals, high thermal conductivity aluminum substrates, environmentally friendly circuit boards, BT materials, ABF materials, and other imported materials, DU busbars, iron-based and metal based (core) mixed pressure plates, embedded buried copper, buried resistors, buried capacitors, buried ceramic bead plates, buried ceramics, ceramic mixed pressure plates, multi-layer ceramics, ultra-thin BT plates, ultra-thin PCBs, ultra-thin PCBs, multi-layer aluminum substrates, multi-layer ceramic plates, multi-layer ultra-thin HDI、 High frequency mixed voltage, differential impedance board, thick copper plate, gold-plated plate, high and low copper, high and low copper, high carbon resistance, transparent multilayer, glass plate, HDI arbitrary order (cross blind buried) Anylayer, flexible double-sided, flexible multilayer, soft hard combination HDI, roll to roll FPC, ultra long size, ultra large size board (single, double, multi-layer) PCB production and product design, product development, software development, etc | |||
Main material | Rogers, Taikoni, Yaron, Mitsui, Isola, 3M, Taiyao, Taiguang, Tenghui, Shengyi,Lianmao, Nanya, Doosan, DuPont, Taihong, Hongren, Xinyang, Nippon Steel, Teflon,Yasen, Panasonic, RCC, Mitsui, Mitsubishi, Yingye, 3M, Kyocera, Jiuhao, Zhongci,Huaqing, Aishengda, Sliton, Kaichangde, Tongxin, Beige, Yalong, Taikoni,Hitachi, Laird System, etc | |||
Main material categories | Halogen-free、halogenated、 high thermal conductivity, high TG135 、TG140、 TG150、 TG170、TG180、TG240、TG320 | |||
Build-up Material | FR-4 ,TG150,TG70,TG180 | |||
Conventional plate thickness (mm) | Min.1-2L(mm) | 0.10mm | 0.10-12.0mm | 0.10-18.0mm |
Min.4-10L(mm) | 0.35mm | 0.35mm~10.0mm | 0.35-18.0mm | |
Min.12L(mm) | 0.43 | 0.38~10.0mm | 0.38~18.0mm | |
Min.16L(mm) | 0.53 | 0.45~10.0mm | 0.45~18.0mm | |
Min.18L(mm) | 0.63 | 0.51~10.0mm | 0.51~18.0mm | |
Min.52L(mm) | 0.8 | 0.65~10.0mm | 0.65~18.0mm | |
MAX(mm) | 3.5 | 12.0mm | 18.0mm | |
Copper plate thickness and copper thickness | 1-2 layerCU | 700um | 875um | 875um |
Layers 4-20 | 4-12layer | 4-16layer | 4-22layer | |
Inner layer copper thickness(um) | 875um | 1050um | 1225um | |
Outercopperthickness | 210um | 350um | 525um | |
Thick copper finished plate thickness | 8.0mm | 12.0mm | 18.0mm | |
IC substrate | layerHDI | 1-10layer | 1-14layer | 1-16layer |
Line width and spacing | 50um | 25um | 15um | |
copper thickness | 8-10um | 10-12um | 12-15um | |
Min.CoreThickness um(mil) | 254" (10.0) | 0.15~254(10.0mm) | 0.15~254(10.0mm) | |
Min.Build up Dielectric | 38(1.5) | 25(1.0) | 25(1.0) | |
BaseCopperWeigh t | Inner Layer | 1/4-8 OZ | 1/4-0.30mm | 1/4-0.30mm |
Out Layer | 1/4-10 OZ | 1/4-30 OZ | 1/4-30 OZ | |
Gold thick | 1~40u" | 1~200u" | 1~200u" | |
Nithick | 76~127u" | 1~250u" | 1~250u" | |
Min.HOle/Land um(mil) | 150/300(6/12) | 100/200(4/8) | 100/200(4/8) | |
Min.Laser via/landum(mil) | 60/170(2.4/6.8) | 50/150(2/6) | 50/150(2/6) | |
Min. IVH、Hole size/landum(mil) | 150/300(6/12) | 100/200(4/8) | 100/200(4/8) | |
DieletricThickness | 38(1.5) | 32(1.3) | 32(1.3) | |
125(5) | 125(5) | 125(5) | ||
SKipvia | Yes | Yes | Yes | |
viaoNhie(laserviaon BuriedPTH) | Yes | Yes | Yes | |
Laser Hole Filling | Yes | Yes | Yes | |
Technicalltem | MassProduct | Advanced Technology | ||
Hole depth/diameter | Through Hoie | 25:01 :00 | 35:01 :00 | 40:01 :00 |
AspctRatio | MicroVia | 0.8 :1 | 0.8 :1 | 0.8 :1 |
copperFilling Dimple Size | 10(0.40) | 5(0.20) | 5(0.20) | |
Minimumouter line width/ spacing | Inner layer line width and spacing | 38/38(1.5/1.5) | 38/38(1.5/1.5) | 38/38(1.5/1.5) |
PlatedLayerum(mil) | 38/38(1.5/1.5) | 38/38(1.5/1.5) | 38/38(1.5/1.5) | |
BGAPitchmm(mil) | 0.4 | 0.4 | 0.4 | |
PHMin.Hole rlng um(mil) | 75(3) | 62.50(2.50 | 62.50(2.50 | |
Line Width control | <2.5mil(mil) | ±0.50 | ±0.50 | ±0.50 |
2.5mil≤L/W<4mil | ±0.50 | ±0.50 | ±0.50 | |
≤3mil(mil) | ±0.60 | ±0.60 | ±0.60 | |
SolderMask Registration um(mil) | ±25 | ±25 | ±25 | |
Solder masThickness | Lines Minum(mil) | 10(0.40) | 10(0.40) | 10(0.40) |
Lines Minum(mil) | 30(1.20) | 30(1.20) | 30(1.20) | |
CopperMinum(mil) | 10(0.40) | 10(0.40) | 10(0.40) | |
CopperMax um(mil) | 30(1.20) | 30(1.20) | 30(1.20) | |
Mln.Solder Mask opening um(mil) | 250(10) | 200(8) | 200(8) | |
Structure | Stacking layer by layer | 5+N+5 | 6+N+6 | 7+N+7 |
Sequenetlal Bu il-up | 42Any Layer | 46Any Layer | 60Any Layer | |
Stacking layer by layer | N+N | N+N | N+N | |
N+X+N | N+X+N | N+X+N | ||
Sequenetlal Lamination | 4+(N+X+N)+4 | 5+(N+X+N)+5 | 6+(N+X+N)+6 | |
Multi-layer stepped structure | Multi- layer stacking | 5+N+5 | 6+N+6 | 7+N+7 |
Sequenetlal Bu il-up | 12Any Layer | 16Any Layer | 18Any Layer | |
Multi- layer staircase | 4 steps | 6 steps | 6 steps | |
Mechanical depth control drilling depth | 2.0mm±0.08mm | 2.0mm±0.08m | 2.0mm±0.08m | |
Laser controlled depth drilling | 0.6mm±0.08mm | 0.8mm±0.08mm | 1.0mm±0.08mm | |
/Min.HOle/Land um(mil) | linner um(mil) | 150/300(6/12) | 100/200(4/8) | 100/200(4/8) |
Outer um(mil) | 150/300(6/12) | 100/200(4/8) | 100/200(4/8) | |
Minimumburiedholediameter/solder pad | 60/170(2.4/6.8) | 50/150(2/6) | 50/150(2/6) | |
SUBDielectricThic kness | Mln.um(mil) | 38(1.5) | 32(1.3) | 25(1.0) |
Max.um(mil) | 125(5) | 125(5) | 125(5) | |
SKipvia | Yes | Yes | Yes | |
Via on hole(LaserViaon BuriePTH | Yes | Yes | Yes | |
Laser Hole Filling | Yes | Yes | Yes | |
Resin plug hole plate thickness | Min mm(mil) | 0.35 | 0.35 | 0.35 |
Max mm(mil) | 3.2 | 3.2 | 3.2 | |
Min mm(mil) | 125(5) | 110(4.50) | 110(4.50) | |
Routing Depth control Accuracy um(mil) | ±50um(mil) | ±50um(mil) | ±50um(mil) | |
Outine NC Rcuting Tolerance um(mil) | 75(3) | 75(3) | 75(3) | |
Type of surface Finishing | OSP、 Sinking gold, lead-free tin, lead tin, electroplated gold fingers, electroplated gold (electroplated nickel hard gold, electroplated nickel soft gold), gold fingers+sinking gold, spray tin+gold fingers, OSP+electroplated gold, OSP+sinking gold, electroplated silver, electroplated silver, electroplated tin, gold coated silver, nickel free electroplated thick gold, nickel free electroplated thick silver, tin silver copper, OSP+gold fingers | |||
EN Thickness Control(um) | >0.025-0.1um | >0.025-0.1um | >0.025-0.1um | |
OSOSP Thickness(um) | >0.20-0.50um | >0.20-0.50um | >0.20-0.50um | |
Ni Thickness(um) | >105? 250um | >105? 250um | >105? 250um | |
Platinum thickness control | >0.025-5um | >0.025-5um | >0.025-5um | |
Lead/lead- free tin spraying thickness | >105? 150um | >105? 150um | >105? 150um | |
Electrosilver | >105? 140um | >105? 140um | >105? 140um | |
Thickness control of sinking silver | >105? 140um | >105? 140um | >105? 140um | |
Tin thickness control | >105? 140um | >105? 140um | >105? 140um | |
Min TestPAD | E/Tum(mil) | 75(3) | 75(3) | 75(3) |
E/Tum(mil) | 50(2) | 50(2) | 50(2) | |
E/Tum(mil | 25(1) | 25(1) | 25(1) | |
E/Tum(mil) | 150(6) | 150(6) | 150(6) | |
lmpedanceContro lTolerance | ≧50ohm | ± 10% | ±8% | ±8% |
≦50ohm | ±50ohm | ±50ohm | ±50ohm | |
Finished board | Plate thickness≧0.15mm | ≧ ± 10% | ≧ ± 10% | ≧ ± 10% |
Plate thickness≧0.15mm | ≧ ±0.075% | ≧ ±0.075% | ≧ ±0.075% | |
Warpage | ≤0.7% | ≤0.5% | ≤0.5% | |
The above are the conventional production skills of Chaosheng Group Company, and there are any unclear points. Please further communicate with our specialized technical personnel, and we will be happy to serve you! Welcome to our guide! |
Company Profile

Company Profile The development history of Chaosheng Group shows a typical trajectory from its establishment to growth into a leader in the printed circuit board industry. A brief overview of Chaosheng Group, its subsidiaries, and specialty products: History and Background of Chaosheng Company: Chaosheng Group was founded in 1968, originating from Japan, under the name Chaosheng Technology Japan Kawasaki Co., Ltd. In 2012, the company implemented a shareholding reform, marking a shift towards more modern and standardized management. As a Sino Japanese Hong Kong joint venture, Chaosheng Group holds an important position in the Chinese circuit board manufacturing industry. Global factory distribution Zhejiang Kunying Electronic Technology Co., Ltd. (formerly renamed after the merger of Taiwan Kunying Electronics) was established in 2001, increasing the production and technical capabilities of Chaosheng Group in the field of circuit boards. Mainly focusing on high-end precision flexible circuit boards. Shenzhen Chaosheng Electronic Technology Co., Ltd. and Shenzhen Guangrui New Electronics Co., Ltd. (formerly known as Shenzhen Mingze Electronics Co., Ltd.) were established in 1993 and 2008 respectively, further expanding Chaosheng Group's layout in the Chinese market. We mainly provide supporting processing factories for customers in product design, software development, product research and development, and SMT surface mount processing. Chaosheng Group has multiple sales networks worldwide, covering France, the United Kingdom, Germany, Japan, Europe, Switzerland, Africa, North America, Austria, Taiwan, Hong Kong and other countries and regions, showcasing its global influence. Product Features and Applications: Widely used products: communication equipment, communication instruments, optical communication, infinite terminals, new energy, intelligent systems, medical devices, detection systems, aviation, aerospace, military, drones, robots, AI technology, 5G equipment, 5G communication, optical products, LED、 The high-tech fields such as communication, automotive, and home electronics reflect the technological strength and market insight of Chaosheng Group. Main materials: halogen-free materials FR-4, Polyimide PI materials, high TG materials, high-frequency materials, high-speed materials, metal materials, glass materials, embedded materials, transparent FR-4 materials, heat dissipation materials, embedded materials, high thermal conductivity metals, high thermal conductivity aluminum substrates, environmentally friendly circuit boards, BT materials, ABF materials, etc. Product structure: Metal based mixed pressure plate, embedded copper, buried resistance, buried capacitance, buried ceramic bead plate, buried ceramic, ceramic mixed pressure, multi-layer ceramic, BT board, ultra thick PCB, multi-layer aluminum substrate, high-frequency mixed pressure, impedance board, thick copper plate, thick gold plated board, high and low copper, high carbon resistance, transparent FR-4 multi-layer, glass plate Anylayer、 Single, double, multi-layer, soft and hard combination HDI, roll to roll FPC, ultra long and ultra large size boards, PCB production and product design and development, software development and SMT, PCBA and other integrated production factories The annual output value of Chaosheng Group exceeds 100 billion yuan, with the annual output value of printed circuit boards reaching over 65 billion yuan, demonstrating its strong production capacity and market competitiveness. With the continuous advancement of technology and changes in the market, Chaosheng Group needs to continue to pay attention to the dynamics of new technologies, products, and markets, strengthen research and development investment and innovation capabilities, in order to maintain its competitive advantage and industry position.
Contact Us
- Shenzhen Chaosheng Electronic Technology Co., Ltd.
- Contact nameMank.Li Chat Now
- Phone86-0755-89586738
- AddressAilian community shigangxu rd industrial zone, Shenzhen, Guangdong
Product Categories
New Products
-
Fake double-layer floor hollow FPC, pure copper based floor hole FPC,Multi layer flexible FPC
-
Transparent FR-4PCB,FR-4, TG130 material,PI transparent flexible board FPC
-
1.60mm transparent FR-4PCB,Ultra thin transparent FR-4PCB
-
blind buried hole HDI flexible FPC,4-layer flexible FPC
-
12 layers of flexible multi-layer,soft hard combined FPC,Mobile phone motherboard, touch screen
-
Aviation Bluetooth Glasses,16 layers HDI 4th order
-
PET transparent single-layer double-layer flexible FPC,Single layer PET material flexible flexible board FPC
-
Apple iPhone 12 layer arbitrary soft hard combination HDIFPC
-
iPhone 12 layer arbitrary soft hard combination HDI Flexible FPC,multi-layer flexible HDIFPC,
-
6L high-speed rail car high-voltage soft hard combination FPC
-
2-layer SG card, SD card, thick goldPCB,Multi layer ultra-thin PCB
-
2-layer thin plate thick gold PCB,Ultra thin thick gold SG card gold finger PCB
-
2-layer ultra-thin ultra large size PCB,Ultra thin multi-layer PCB
-
2-layer thin plate+thick metal+high carbon resistancePCB,Micro motor ultra-thin high carbon resistance PCB
-
4-layer 15OZ thick copper+copper bar+copper based charging pile PCB,High thermal conductivity copper based+8W adhesive PCB
-
4-layer high-voltage thermoelectric separation thick copper aluminum substrate
-
2layer high-voltage thermoelectric separation thick copper aluminum substratePCB
-
2-layer thermoelectric separation high current multi-layer aluminum based PCB
-
4 thick copper high thermal conductivity thermoelectric separation aluminum basePCB
-
4-layer thermoelectric separation high current multi-layer aluminum based PCB,Thermoelectric separation aluminum based circuit board PCB
-
6layers of copper with a thickness of 210um, thermoelectric separation aluminum basedPCB
-
4-layer recessed thick copper charging pile PCB,Bent copper electrolytic PCB
-
Bend type recessed copper based PCB,Inward bending copper based PCB
-
Inlaid thick copper bent PCB,Bent copper electrolytic PCB
Popular Searches
- Pcb Circuit
- pcb board
- pcb assembly
- circuit board
- Flexible Pcb
- Pcb Design
- pcb board assembly
- mobile pcb
- aluminum pcb
- double-layer
- pcb line board
- aluminium base
- single layer
- flex-pcb
- Pcb Pcba
- hdi pcb
- immersion gold pcb
- rigid pcb
- Rigid Flex Pcb
- Printed Circuit Board Pcb
- Electric Pcb
- Fr4 Pcb
- Circuit Board Pcb
- pcb production
- Pcb Manufacturing
- Solder Mask Pcb
Find Similar Products By Category
- Electrical & Electronics > Circuit Board > Multilayer PCB

Product Tags:
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Mank.Li
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.

- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
