Home > Products > GE > IS200TREGH2B Gas turbine emergency trip terminal board

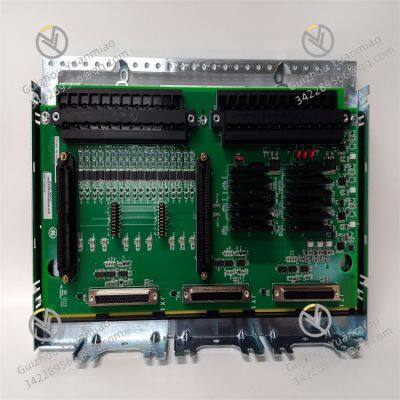

IS200TREGH2B Gas turbine emergency trip terminal board

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+85℃
Humidity	5%~95% (non-condensing)

Product Description

Many products are not on the shelves yet, please contact us for more models.

IS200TREGH2B is a gas turbine emergency trip terminal board in the Speedtronic Mark VI series manufactured by General Electric (GE). Here are its detailed specifications:

Function and Purpose

It is designed to supply power to three emergency trip solenoid valves, controlled by an I/O controller. It works in conjunction with the TRPG board: IS200TREGH2B provides the positive pole of DC power for the emergency trip solenoid valves, while the TRPG board supplies the negative pole. When critical operating conditions occur in the gas turbine (such as overspeed, excessive vibration, or abnormal temperature), it triggers the shutdown procedure by controlling the solenoid valves to cut off fuel supply or activate protective mechanisms. As such, it is a key component of the turbine safety system, directly related to equipment and operational safety.

Electrical Parameters

Rated Voltage: 24V DC, specifically designed for 24V DC application scenarios, matching the standard power supply of the Mark VI system.
Power Redundancy: A combination of diodes in the on-board connectors (JX1, JY1, and JZ1) provides redundant power for status feedback circuits and energy-saving relays, ensuring uninterrupted power supply to critical components even if a single power path fails.

Physical Characteristics

Dimensions: Approximately 8.5 inches × 13.5 inches × 2.5 inches (compact size for easy installation in control cabinets).
Protection: The circuit board is coated with a conformal coating, which provides resistance to moisture, dust, and chemical corrosion, enhancing durability in harsh industrial environments (e.g., turbine rooms with high humidity or oil mist).

Relay Configuration

There are 12 relays arranged in two rows (6 relays per row) on the board, with clear functional division:

9 relays are grouped into three sets (3 relays per set), used for voting control of trip solenoid valves. This voting mechanism ensures that the trip command is only executed when multiple relays confirm the fault signal, reducing false shutdowns caused by single-point errors.
The remaining 4 smaller relays are responsible for auxiliary functions, such as status signal transmission, power supply switching, and external alarm triggering.
