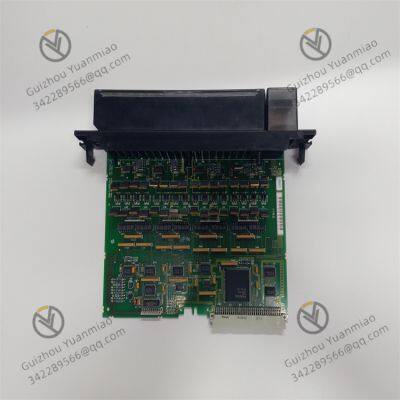

GE IC697MDL750 90-70 Series Multi-functional Digital Output Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other	Certification	Other
Function	Other	Condition	Other
Task	Other	Mathematical Model	Other
Signal	Other	Customized	Other
Structure	Other

Product Description

GE IC697MDL750 90-70 Series Multi-functional Digital Output Module

Features

High-Capacity Output: Equipped with 32 output points divided into 4 isolated groups (8 points per group), enabling simultaneous control of multiple devices to meet large-scale industrial automation requirements.
Wide Voltage Range: Rated at 24 or 48VDC with an output voltage range of 20-60VDC, adaptable to various voltage requirements of load devices, enhancing versatility and flexibility.
High Output Current Capability: Each output point supports a maximum current of 0.5A, with each group capable of 2A. Features high surge current tolerance (20x rated current for 20ms), suitable for powering motors, solenoid valves, indicators, etc.
Strong Configurability: Input and output references can be customized via PC (Windows/MS-DOS) through SNP port or Ethernet TCP/IP, allowing flexible adjustment of operational parameters.
Clear Status Indication: LED indicators on the module top visually display internal circuit status and output point activation, facilitating real-time monitoring and troubleshooting.
Mechanical Key Protection: Includes a mechanical key for slot customization during installation, preventing incorrect module insertion and improving system safety.

Applications

Machine Control: Precise motion control for machine tools, robots (e.g., welding/assembly in automotive manufacturing).
Process Control: Regulation of actuators (valves, pumps) for precise control of temperature, pressure, flow, ensuring production stability and quality consistency.
Packaging Industry: Automation of packaging equipment (fillers, labelers, sealers) to improve efficiency and accuracy.
Automated Production Lines: Coordination of equipment in electronics, food & beverage industries for automated material handling, processing, assembly, and inspection.

Technical Specifications

Voltage: Rated 24/48VDC, Output Range 20-60VDC
Current: 0.5A per output point, 2A per group; 20x surge capability (20ms); 0.25A from 5V bus
Isolation: 1500V between outputs and backplane, 500V between input groups
Dimensions: Approx. 21.3×22×13 cm
Weight: Approx. 2.92 kg

Working Principle

Signal Reception & Processing: Installed in 90-70 series backplane slots, supporting local or distributed I/O. The PLC CPU sends digital signals (high/low logic) via the backplane bus to indicate output states.
Output Drive: Utilizes high-power transistors/MOSFETs. A logic "1" signal activates the optocoupler, saturating the output device to connect the load to power. A logic "0" deactivates the circuit.
Isolation Protection: 1500V isolation safeguards against EMI and internal faults, ensuring system stability and reliability.
Status Indication: LED indicators reflect output states for immediate visual monitoring.
Load Driving Capacity: Delivers sufficient current for diverse industrial loads, supporting up to 0.5A per point and 2A per group.
Configurable Customization: Allows users to define input/output parameters and set output states (e.g., fail-safe modes) via PC interface, adapting to specific industrial scenarios.
