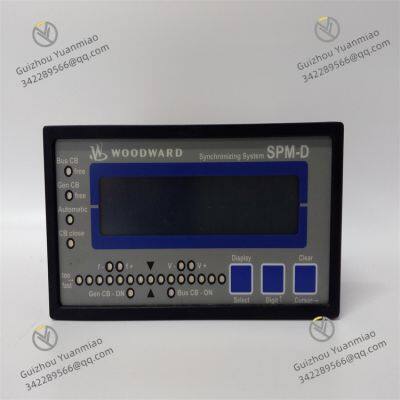

WOODWARD 8440-1666 B Synchronizer Module

WOODWARD 8440 - 1666 B is a high-performance synchronizer module and a load-sharing component of the SPM - D11 series. This series of products has a long-standing reputation in the field of industrial control and is trusted by users due to its advanced technology and excellent design. WOODWARD 8440 - 1666 B is mainly used in industrial generator systems, aiming to achieve efficient synchronization and precise load distribution between generators, ensuring the stable and reliable operation of the entire power generation system and continuously supplying high-quality electricity for various industrial scenarios.

•


• Dimension Specifications: The standard external dimensions of the module are 144mm × 72mm × 122mm. This compact and reasonable size design allows it to be conveniently installed inside various control cabinets or equipment without occupying too much space, facilitating system integration.

• Weight: The weight is at least 800g. The moderate weight ensures the stability of the internal structure of the module while taking into account the convenience of installation and transportation, making it easy for on-site construction and maintenance personnel to operate.

•


• Protection Level: It adopts an apranorm - type protective enclosure. The front protection level reaches IP42, which can effectively prevent the intrusion of solid foreign objects with a diameter larger than 12.5mm and prevent vertical dripping water from affecting the equipment; the back protection level is IP24, which can protect against the intrusion of solid foreign objects with a diameter larger than 1.0mm and also protect against dripping water within 15 degrees from the vertical direction. This protective design can resist interference from environmental factors such as dust and water droplets commonly found in industrial sites, ensuring the stable operation of the module in complex environments.

•


• Operating Temperature Range: The operating temperature range is -40°C to 85°C. It can work normally whether in cold northern industrial bases or hot tropical factory environments, showing strong environmental adaptability and meeting the needs of industrial applications in different regions around the world.

• Power Supply Parameters: The power input requirement is 9 - 30Vdc, and it has a reverse polarity protection function. This feature, on the one hand, ensures that the module can be adapted to a variety of common DC power supplies, and on the other hand, prevents damage to the module due to incorrect polarity of the power supply connection, improving the safety and stability of use.

•


• Electrical Output Parameters: The actuator output adopts pulse width modulation, with a maximum value of 6A; the auxiliary output is a maximum of 200mA, which can meet the driving and power supply needs of different external devices, flexibly adapting to various industrial control scenarios.

• Electromagnetic Compatibility: It has excellent EMI immunity. In the frequency range of 200 to 1000 MHz, it can withstand an interference intensity of 100V/m; it can withstand vibrations of 6Gs with a frequency range from 40Hz to 2000Hz, and shocks of 20Gs at a frequency of 45Hz. These parameters indicate that the module can still operate stably in industrial sites with complex electromagnetic environments and mechanical vibrations and shocks, ensuring the accuracy of signal transmission and the execution of control commands.

•


• Automatic Frequency and Phase Matching: The module has a powerful automatic frequency and phase matching function. When multiple generators are operating in parallel, it can quickly and accurately detect the frequency and phase of the electricity output by each generator, and automatically adjust and match them to ensure that they are highly consistent in phase and frequency. In this way, seamless synchronous operation between generators can be achieved, avoiding current surges and equipment damage caused by frequency or phase deviations, greatly improving the stability and reliability of the power generation system, and ensuring stable power output.

•


• Efficient Load Sharing: WOODWARD 8440 - 1666 B can intelligently distribute the total system load according to the actual operating conditions and load capacity of each generator. Through precise calculation, it reasonably adjusts the load ratio borne by each generator, avoiding situations where some generators are overloaded and others are underloaded. It realizes the balanced distribution of generator loads in the system, optimizes the operating efficiency of the generators, extends the service life of the equipment, and improves the energy utilization rate of the entire power generation system.

•


• Real-time Status Monitoring and Display: The module is equipped with a two-line liquid crystal display, which can display key system performance parameters and operating status information to operators in real-time and intuitively, such as real-time frequency, phase, load size, output voltage and current of the generator, as well as whether there is a fault alarm in the system. Operators can quickly and comprehensively understand the system operation status through the display, so as to make corresponding operation decisions in a timely manner and ensure that the power generation system is always in the best operating state.

•


• Convenient Installation and Maintenance: The design fully considers the convenience of installation and maintenance. Its size specifications comply with general industrial standards, facilitating installation and layout in various control cabinets or equipment; at the same time, the internal circuit structure of the module is reasonably designed, and each functional module is clearly divided. When a fault occurs, maintenance personnel can quickly locate the problem and carry out targeted maintenance, effectively shortening the equipment downtime for maintenance and reducing enterprise operating costs.

•


• Good System Compatibility: It can seamlessly integrate with a variety of different types and brands of generator systems. Whether it is a system equipped with WOODWARD's own speed control and voltage regulators, or a system with other similar design components, 8440 - 1666 B can perfectly adapt to them with its flexible interfaces and communication protocols, greatly expanding its application range in the field of industrial power generation.

•


• Synchronization Abnormality

• Fault Phenomenon: Normal synchronization cannot be achieved between generators, with large frequency deviations and inconsistent phases, resulting in severe current fluctuations in the system, unstable power generation, and may even trigger the action of protection devices, causing some generators to shut down.

• Possible Causes: Firstly, the frequency and phase detection circuits inside the module are faulty, such as damaged detection chips or loose related solder joints, which affect detection accuracy and signal transmission; secondly, the external input signal is interfered, for example, interference from nearby strong electromagnetic equipment, causing the module to receive incorrect frequency and phase signals; thirdly, the module parameter settings are incorrect, such as unreasonable synchronization threshold settings, making the module unable to accurately judge the synchronization status of the generator.

• Solutions: Use professional testing equipment to conduct a comprehensive inspection of the frequency and phase detection circuits inside the module. If damaged chips or loose solder joints are found, replace or re-solder them in a timely manner; check for external interference sources, take shielding measures for signal transmission lines, such as using shielded wires, and ensure good grounding to reduce the impact of electromagnetic interference; carefully check and verify the synchronization parameter settings of the module, refer to the equipment manual or consult the manufacturer's technical support, and adjust the parameters to an appropriate range.

•


• Uneven Load Distribution

• Fault Phenomenon: When multiple generators are operating in parallel, the load ratio borne by each generator is seriously inconsistent with expectations. Some generators are overloaded and generate severe heat, while others are underloaded and fail to give full play to their efficiency, affecting the efficiency and stability of the entire power generation system.

• Possible Causes: The load distribution algorithm of the module is wrong, which may be caused by software program vulnerabilities or data calculation errors; there is a problem with the current detection line connecting each generator and the module, such as an open circuit or poor contact, making the module unable to accurately obtain the actual output current of each generator, and thus unable to distribute the load correctly; the generators themselves have differences in performance, such as inconsistent internal resistance and different output characteristics, but the module has not been reasonably calibrated for these differences.

• Solutions: Try to upgrade the module's software to fix possible program vulnerabilities and ensure the correct operation of the load distribution algorithm; conduct a comprehensive inspection of the current detection line, use tools such as multimeters to detect the on-off status of the line, and reconnect or replace the line with an open circuit or poor contact; conduct detailed tests on the performance parameters of the generators, and calibrate the relevant parameters of each generator in the module according to the test results, so that the module can reasonably distribute the load according to the actual performance of the generators.

•


• No Display or Abnormal Display on the Screen

• Fault Phenomenon: The two-line liquid crystal display of the module is completely off and cannot display any information; or the display is on, but the displayed content is confusing, missing strokes, or blurred, affecting the operator's judgment of the system status.

• Possible Causes: A fault in the display power supply line, such as an open circuit or short circuit of the power line, causing the display to fail to obtain normal working voltage; the display itself is damaged, such as a broken liquid crystal panel or a faulty display driver chip; there is a problem with the communication line between the module and the display, such as loose or poor contact of the line, resulting in interrupted or incorrect data transmission.

• Solutions: Check the display power supply line, repair open or short circuit problems to ensure normal power supply; if it is determined that the display itself is damaged, contact the manufacturer to replace the display of the same model; carefully check the communication line between the module and the display, re-plug and fix it firmly, and if the line is damaged, replace it in a timely manner.

•


• Communication Fault

• Fault Phenomenon: WOODWARD 8440 - 1666 B cannot communicate normally with the upper control system or other equipment, unable to upload system operation data or receive control commands from the upper computer, resulting in interruption of information interaction in the entire control system and affecting the overall operation of the system.

• Possible Causes: The communication interface is damaged, such as broken or oxidized interface pins, causing poor signal transmission; incorrect communication protocol settings, the communication protocol adopted by the module and the communication object is inconsistent, or the protocol parameters (such as baud rate, data bits, parity bits, etc.) are configured incorrectly; there is a problem with the communication line, such as an open network cable or a short circuit in the RS - 485 bus, hindering data transmission.

• Solutions: Replace the damaged communication interface with a new interface module; carefully check the communication protocol settings to ensure that both parties use the same protocol and correctly configure the protocol parameters; use professional tools (such as a network cable tester) to detect the communication line, and repair or replace the faulty line.
