Rt630 Expert Handheld Thermal Camera for Precise Temperature Measurement and Industrial Equipment Maintenance Inspections
USD $6599 - $7699
/ Unit
1 Unit(Min.Order)
- 0 Unit / Units per Month
- YanTai
- T/T L/C PayPal D/P Western Union Other
- 7 days
You May Like
-
Intelligent Video Analysis CCTV Security Surveillance Camera with Fire Detection and Intrusion Detection Alarm Capabilities
-
CX200 SE+ Handheld Thermal Camera
-
CX200 Pro+ Handheld Thermal Camera
-
CX200+ Handheld Thermal Camera
-
IX2 AIR Wireless Thermal Camera For Smart Devices
-
RT400 Expert Thermal Camera
Product Details
| Application | Industry | Measuring Method | Automatic | |
| Super Resolution | 1280×1024 | Infrared Resolution | 640×512 | |
| Video Resolution | 1280×720 | Measurement Range | -20°c~+150°c, 100°c~650°c; Optiona | |
| Weight | 1.3kg (with Battery) | Specification | 144× 129× 307 mm | |
| Trademark | Raythink | Origin | Yantai |
Product Description
Product Description

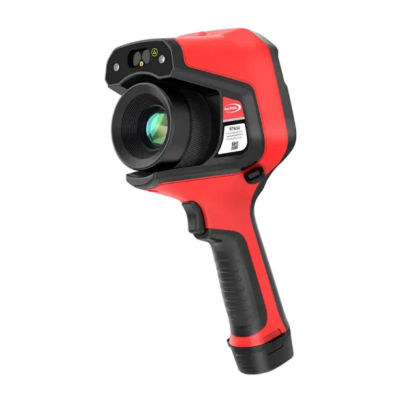

RT630 Expert Thermal Camera
Equipped with a new-generation detector with a high resolution of 640×512 and a NETD as low as 35mK, the new RT630 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.
Product Highlights
Clear Thermal Images, Precise Temperature Measurement
1.Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512, supporting super resolution.
2.NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).
2.NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).
Various Lenses and Fast Focusing
1.Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
2.Support macro lenses, flexible for diverse scenarios.
2.Support macro lenses, flexible for diverse scenarios.
Functional Upgrade to Improve Efficiency
1.Android operating system, more convenient to operate
2.Support intelligent image stabilization, making temperature measurement images more stable
3.Support laser rangefinding and area measurement.
4.Support up to 20 points/lines/areas to analyze more temperature details in the screen.
2.Support intelligent image stabilization, making temperature measurement images more stable
3.Support laser rangefinding and area measurement.
4.Support up to 20 points/lines/areas to analyze more temperature details in the screen.
Specification
Thermal Imaging
Detector Type | Uncooled infrared detector |
Infrared Resolution | 640×512 |
Pixel Size | 12μm |
Super Resolution | 1280×1024 |
Spectral Band | 7.5-14μm |
NETD | Less than 35mK (25°C,F1.0) |
Frame Rate | 25Hz |
Lens Focal Length | Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm. |
FOV | Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°. |
IFOV | Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm. |
Focusing Mode | Electric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focus |
Minimum Imaging Distance | Standard lens: 0.6m; super telephoto lens: 4m; telephoto lens: 3m; wide-angle lens: 1m; macro lens: 39mm; super macro lens: 19mm; |
Measurement Range | -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C |
Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
Imaging Display
Display | 5-inch OLED touch screen, resolution 1280×720 |
Visible Light Camera | 13 megapixels |
Digital Zoom | 1× ~ 10× |
Palettes | 19 options |
Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
Temperature Width Stretch | Support |
Measurement and Analysis | |
Analysis Functions on the Device | Support up to 20 movable points, lines, frames, circles and polygons, and up to 5 preset modes |
Laser Rangefinding | Support |
Area Measurement | Support |
Hygrothermograph | Support |
Position | Support |
Temperature Difference Analysis | Support |
Trend Analysis | Supports temperature trend recording and analysis. |
Image Freezing | Support |
Analysis Report | PDF format. Support editing and template importing on the PC client. |
Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
Image Storage | |
Storage Medium | Standard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TB |
Text Notes | Support |
Voice Annotation | Support |
Video Functions | |
Intelligent Image Stabilization | Support |
Intelligent Panoramic Stitching | Support panoramic stitching on the PC client, and one-click synthesis. |
Intelligent Routine Inspection | Support. General task package import and editing, standard and automatic naming of images |
Routine Inspection Record Self-inspection | Support |
Dual-Spectrum Video Recording | Simultaneous infrared video and visible light video recording, in MP4 format. |
Communication Protocol | Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI |
Voice Control | Voice assistant, quick command recognition |
Flashlight | Support |
System Functions | |
Intelligent Image Stabilization | Support |
Intelligent Panoramic Stitching | Support panoramic stitching on the PC client, and one-click synthesis. |
Intelligent Routine Inspection | Support. General task package import and editing, standard and automatic naming of images |
Routine Inspection Record Self-inspection | Support |
Dual-Spectrum Video Recording | Simultaneous infrared video and visible light video recording, in MP4 format. |
Communication Protocol | Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI |
Voice Control | Voice assistant, quick command recognition |
Flashlight | Support |
Others | |
Microphone/Speaker | Support |
Battery | 10,000mAh lithium-ion battery, field-replaceable, support fast charging |
Charging Mode | USB Type-C or desktop charger |
Battery Life | Continuous operating time ≥ 6 hours (depending on the actual environment and service conditions) |
Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI |
Tripod Socket | UNC 1/4-20 interface for tripod |
Operating Temperature | -20°C~+55°C |
Operating Humidity | 10%~95% (non-condensing) |
Storage Temperature | -40°C~+70°C |
Ingress Protection Rating | IP54 |
Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
Weight and Dimensions | About 1.3kg (with battery), 144×129×307mm |
Authentication | CE/RoHS/CMA, etc. |
Packing List | Thermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws). |
Applications
High Temperature Material Monitoring
Electronic and Electrical R&D
Electric Routine Inspection
Chemical Operation and Maintenance
