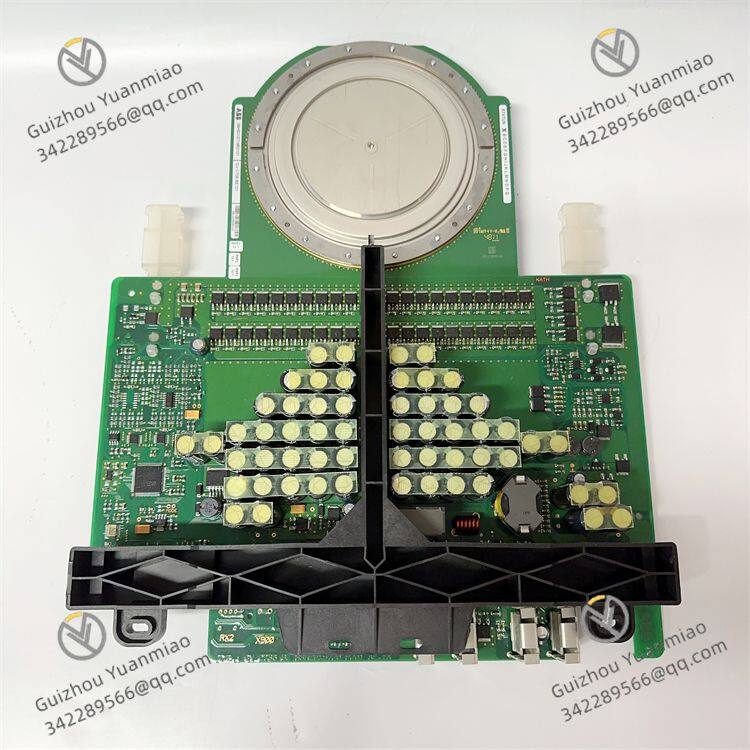

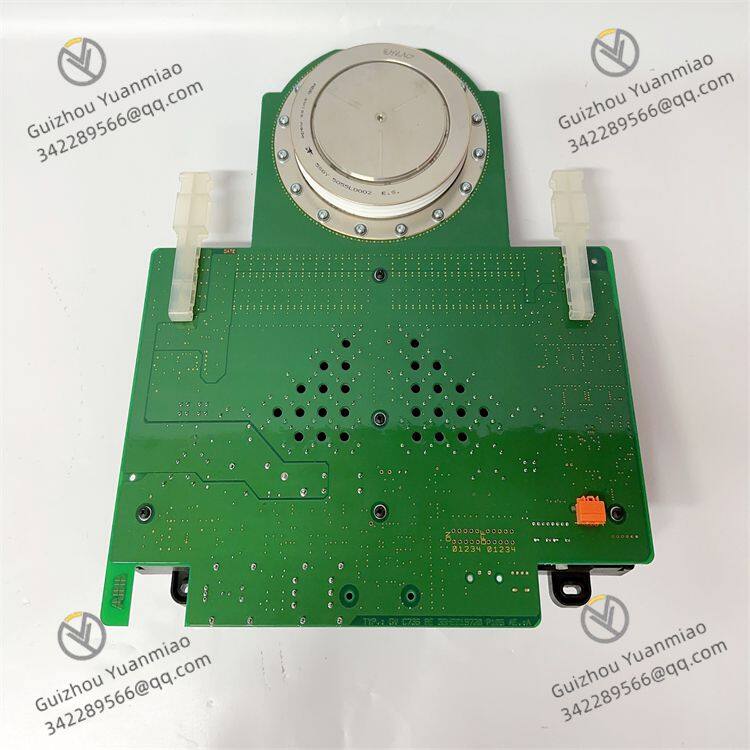

ABB 3BHB003688R0101 IGCT (Integrated gate commutator thyristor) Module

Overview

ABB 3BHB003688R0101 is a high-performance gate control unit and a key component in ABB's power electronic control systems. It is specifically designed to drive and control high-power thyristors or IGCTs (Integrated Gate-Commutated Thyristors) and is widely used in industrial power control scenarios such as medium-high voltage frequency converters, static var compensators, and high-voltage direct current transmission systems. As an important bridge between power electronic equipment and control systems, this unit undertakes core functions such as precise triggering, status monitoring, and protection. It ensures the stable operation of main power devices under complex working conditions, provides a solid guarantee for the efficient and safe operation of the entire power system, and is an indispensable key device in the fields of industrial automation and power transmission.

Working Principle

Technical Parameters

• Trigger Pulse Characteristics: The output pulse width can be adjusted within a certain range (specific data subject to official specifications) to ensure effective triggering of thyristors or IGCTs; the pulse front is steep with a short rise time, which can reduce trigger delay and improve control accuracy.

• Operating Voltage: Usually supports a wide range of DC power supply (such as ±15V, etc., specific details refer to the official manual), which can adapt to voltage fluctuations in industrial power grids and ensure stable operation.

• Signal Isolation: Adopts optoelectronic isolation or magnetic isolation technology, with an isolation voltage of up to several thousand volts (such as 2500V AC), effectively preventing high-voltage interference from the main power circuit from entering the control circuit and improving the anti-interference ability of the system.

• Protection Function Parameters: Equipped with setting of protection thresholds for overcurrent, overvoltage, overtemperature, etc., with fast response time (usually at the microsecond level). It can implement protection actions in an extremely short time, minimizing the impact of faults.

• Operating Temperature Range: Usually -40°C to +85°C, which can adapt to harsh temperature environments in industrial sites and ensure normal operation under both high and low temperature conditions.

Functional Features

• Precise Trigger Control: It can output high-precision trigger pulses to ensure that the main power device is turned on or off accurately at the preset time with minimal control error. This feature is particularly important in scenarios requiring precise phase control (such as reactive power compensation), enabling refined regulation of the power system and improving system operating efficiency.

• Comprehensive Status Monitoring and Protection: By collecting real-time operating parameters of the main power device, it can quickly identify and respond to abnormal states such as overcurrent, overvoltage, and overtemperature. The protection mechanism acts quickly and reliably, which can effectively prevent damage to the device due to extreme working conditions, reducing system maintenance costs and downtime.

• Strong Anti-Interference Ability: Adopting multiple isolation and filtering technologies, it can resist interference signals such as electromagnetic interference and surges in industrial sites, ensuring the accuracy of trigger signals and monitoring data. Even in complex electromagnetic environments, it can maintain a stable working state, ensuring the reliability of system control.

• High Compatibility and Flexibility: It can be adapted to various types of thyristors and IGCTs, and can be used with power modules of different specifications. At the same time, it supports multiple control signal interfaces (such as analog and digital signals), facilitating integration with various control systems, meeting the customized needs of different industrial scenarios, and being relatively convenient for installation and debugging.

• Long-Term Stable Operation: Using high-quality electronic components and a robust housing design, it has good mechanical strength and environmental adaptability. It can maintain long-term stable operation under harsh conditions such as vibration and humidity changes, with a long Mean Time Between Failures (MTBF), making it suitable for industrial-grade continuous operation requirements.
