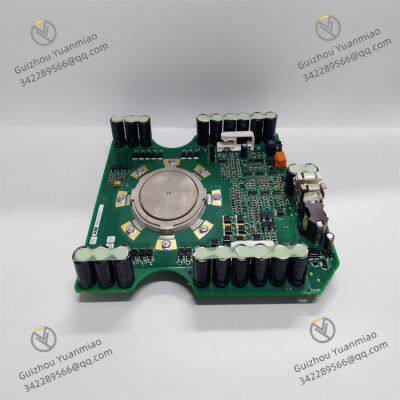

ABB 5SHY35L4521 Asymmetric Thyristor IGCT

ABB 5SHY35L4521 is an Integrated Gate-Commutated Thyristor (IGCT) product, embodying ABB's technical accumulation and innovation in the field of power electronics. IGCT integrates the fast turn-off characteristic of transistors and the advantages of thyristors in withstanding high voltage and large current. Leveraging this feature, 5SHY35L4521 is tailor-made for medium-high voltage, high-power power electronic application scenarios. It can operate stably in complex and harsh power environments, providing key support for the efficient and reliable operation of power systems. In industrial production, it is commonly used in medium-high voltage frequency converters, which significantly improves industrial production efficiency by precisely controlling motor speed; in the field of power transmission, it plays an important role in systems such as static var compensators and high-voltage direct current transmission, helping to achieve precise power conversion and control, and strongly promoting the development of related industries towards intelligence and high efficiency.

When 5SHY35L4521 is in the forward blocking state, it withstands a forward anode voltage. At this time, since no trigger signal is received at the gate, the thyristor is in the off state with only an extremely weak leakage current. Once a suitable forward trigger pulse is applied to the gate, the gate current is injected into the thyristor, prompting the internal PNP and NPN transistors to interact and quickly enter a positive feedback state. In this state, the device turns on rapidly, allowing current to flow smoothly from the anode to the cathode. After turning on, as long as the anode current remains above the holding current, the thyristor can still maintain the on state even if the gate trigger signal is removed. When the anode current drops below the holding current or a reverse anode voltage is applied, the thyristor returns to the blocking state. Through this working mechanism, 5SHY35L4521 achieves precise control of the current in the circuit, meeting the diverse operational needs of different power systems. For example, in high-voltage direct current transmission systems, efficient transmission and conversion of direct current can be realized by precisely regulating the turn-on and turn-off of 5SHY35L4521.

•


• Voltage Rating: The reverse repetitive peak voltage (VDRM) is as high as 6500V. Such a high voltage level enables it to perfectly adapt to the voltage requirements of medium-high voltage power systems. Whether in complex high-voltage power distribution scenarios in industrial power grids or high-voltage operating environments of large power-driven equipment, it can provide reliable guarantee for power conversion and control.

• Current Handling Capacity: The collector current can reach 3800A (specific value is subject to official data). This strong large-current carrying capacity can fully meet the high-load current demand of high-power equipment during operation, ensuring that the equipment can still supply power continuously and stably under high-load conditions. For instance, 5SHY35L4521 plays an indispensable key role in the power drive of high-power industrial equipment such as rolling mills in large steel plants.

• Operating Temperature Range: Usually between -40°C and +125°C. This wide temperature adaptation range allows it to adapt to temperature changes in different regions and industrial environments. It can work normally whether in outdoor power facilities in cold areas or industrial production workshops in high-temperature environments, greatly expanding its application scope.

• Efficient Switching Performance: Based on the advanced gate commutation technology of IGCT, 5SHY35L4521 has an extremely fast switching speed and can complete current on-off operations in an extremely short time. It performs particularly well in scenarios with extremely high requirements for response speed, such as rapid load changes, and can quickly adjust the current state. For example, when new energy power generation is connected to the power grid, in the face of rapid fluctuations in power generation, it can adjust the current in a timely manner, effectively improving the dynamic performance and stability of the power system, and ensuring the timeliness and accuracy of power supply.

• High Reliability and Stability: This product uses high-quality semiconductor materials, adopts advanced manufacturing processes, and strictly follows high-standard quality control systems. It can still operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference. This significantly reduces the incidence of equipment failures, reduces the number of maintenance operations and costs, provides strong guarantee for the continuous production of enterprises, lowers operational risks, and has important application value in industries with high requirements for equipment stability, such as chemical industry and metallurgy.

• High Energy Conversion Efficiency: Through the optimization of internal structure and electrical design, 5SHY35L4521 significantly reduces energy loss during power conversion. In application scenarios such as medium-high voltage frequency converters, it can efficiently convert input electrical energy into the required form of electrical energy, improve energy utilization efficiency, help enterprises save energy consumption costs, conform to the concept of energy conservation and environmental protection, and contribute to sustainable development. For example, it can effectively reduce energy consumption in the frequency conversion control of large central air-conditioning systems.

• Strong Adaptability: 5SHY35L4521 is well compatible with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work collaboratively with other equipment. In smart grids, it can cooperate with various intelligent power equipment to create favorable conditions for building a diversified and intelligent power system.
