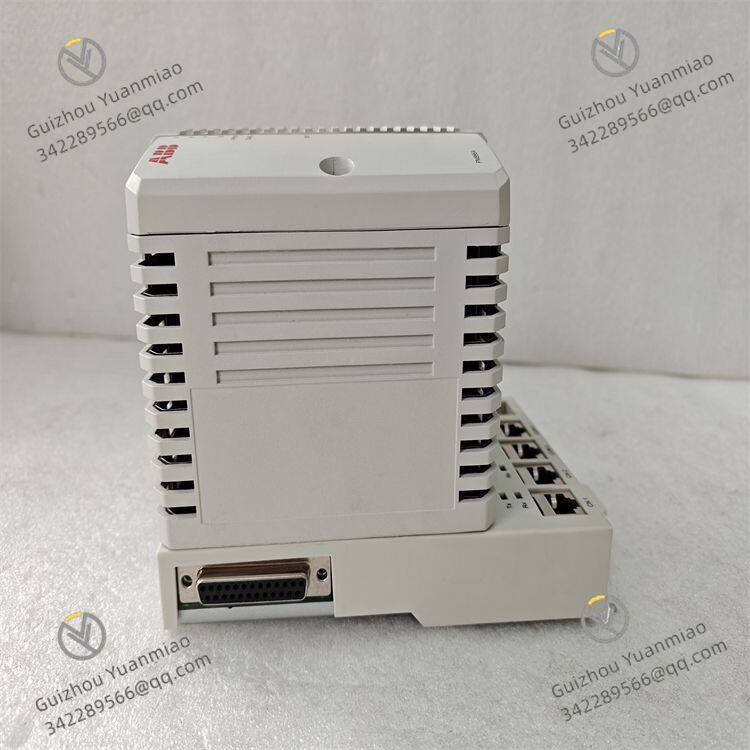

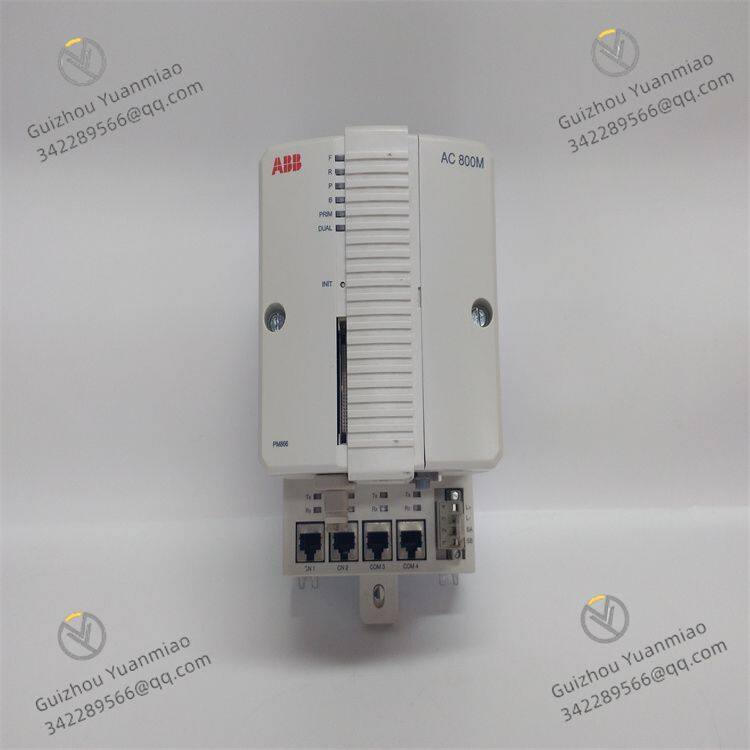

ABB PM866 3BSE093347R1 Redundant System Controller

Processor Performance: A high-performance processor is selected, featuring fast computing speed. It can complete a large number of complex computing tasks in a short time, ensuring the timely output of control commands and the timely response of equipment.

Memory Configuration: It has 4MB of Flash PROM for storing firmware, ensuring the stable storage of the basic operating program of the device; and is equipped with 64MB of SDRAM, providing efficient temporary storage support for system operation and data processing, which meets the needs of industrial on-site data processing and storage.

Power Consumption and Current: The typical power consumption is 5.1W, and the typical power consumption when fully supplying the module bus and CEX bus is 8.6W; the typical current consumption is 210mA (maximum 360mA), excluding the power supply for the module bus and CEX bus. This power consumption and current design can not only ensure the stable operation of the module but also take into account energy-saving requirements.

Power Input Interface: A four-pin screw connector is adopted, with the interface marked as L +, L–, SA, and SB. The connection method is reliable, ensuring stable power input.

Physical Dimensions: The module size is 13.5cm×11.9cm×18.6cm. The size is reasonably designed, facilitating installation and layout in various control cabinets and equipment integration boxes.

Redundant Design Ensures Reliability: It supports CPU redundancy function. When the main CPU fails, the standby CPU can quickly and seamlessly switch to take over the system control tasks, ensuring that the control process is not interrupted, which greatly improves the availability and stability of the system. It is suitable for industrial scenarios with extremely high reliability requirements, such as continuous production industries like chemical engineering and electric power.

Flexible Module Expansion Capability: Adopting the modular design concept, it can flexibly configure and expand various functional modules according to the needs of actual industrial application scenarios. Whether it is adding digital I/O modules to control more switching devices or adding analog I/O modules for precise process control, it can be easily realized, meeting the needs of industrial automation projects of different scales and complexities.

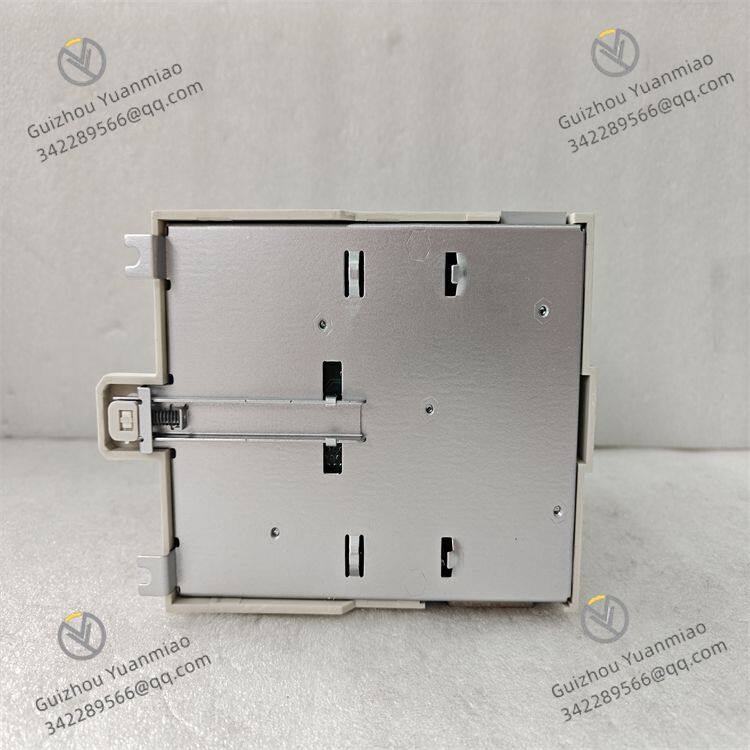

Convenient Fault Diagnosis and Maintenance: It has a perfect fault diagnosis mechanism, and intuitively displays the equipment operation status through LED indicators, such as power status, communication connection status, and CPU working status. Once a fault occurs, the problem can be quickly located. Combined with the simple DIN rail installation and disassembly mechanism, using a unique sliding and locking structure, it is convenient for technical personnel to maintain and replace the module, effectively reducing maintenance costs and downtime.

Strong Network Communication Capability: The hardware design follows standard specifications, with multiple standard communication interfaces based on Ethernet, PROFIBUS DP, etc., supporting multiple network protocols, facilitating integration with other equipment and systems, and can be easily integrated into complex industrial network architectures to achieve efficient data interaction and collaborative work between different equipment and systems.

Protection Level and Environmental Adaptability: It reaches IP20 protection level. Although it needs to be installed in the control cabinet, it can effectively prevent dust and can work stably within a certain temperature and humidity range, adapting to common industrial environmental conditions and ensuring reliable operation in various industrial scenarios.

Process Control Industry: In the chemical production process, it is used to precisely control key parameters such as reaction temperature, pressure, and flow rate, ensuring the smooth progress of chemical reactions and the stability of product quality; in the metallurgical industry, it can perform real-time monitoring and precise control on the equipment operation status and material transportation in processes such as blast furnace ironmaking and steelmaking, improving production efficiency and product quality.

Machine Automation Control: It is suitable for robot control, capable of precisely controlling the robot's motion trajectory, speed, force, etc., to realize complex production operations; in terms of packaging machinery control, it can precisely coordinate various action links of the packaging machine, such as material filling, sealing, and labeling, improving packaging efficiency and quality.

Data Acquisition and Monitoring Systems: It is widely used in the field of industrial on-site data acquisition and monitoring. It can collect various sensor data in real-time, such as temperature, pressure, and liquid level, and transmit the data to the monitoring center, facilitating staff to grasp the production site conditions in real-time, discover and handle abnormal situations in a timely manner, and ensure the safe and stable operation of the production process.

Automobile Manufacturing Industry: It is used for production line automation control, realizing the automation and intelligence of the production process from parts processing, assembly to vehicle offline, improving production efficiency and product consistency; in terms of robot control, it helps with complex operations such as welding, painting, and handling in automobile manufacturing, enhancing production accuracy and quality.

Food and Beverage Industry: In the control of packaging production lines, it ensures the efficient and precise operation of the packaging process, reducing packaging errors and material waste; in the quality inspection link, through real-time monitoring and control of key parameters in the production process, it ensures the quality and safety of food and beverages.

Pharmaceutical Field: In terms of production process control, it strictly controls parameters such as temperature, humidity, and pressure in the drug production process to ensure that drug quality meets standards; in formula management, it precisely controls the amount and proportion of raw materials added to ensure the accuracy and consistency of drug formulas.
