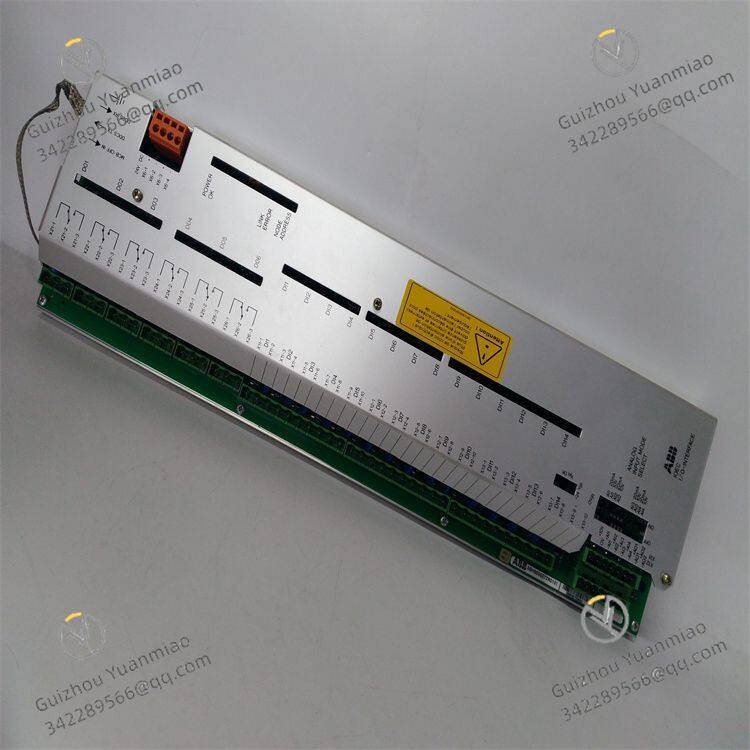

ABB UFC719AE101 3BHB003041R0101 Control Board

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+70℃
Relative humidity	5%~95% (non-condensing)	Dimensions	100mm×160mm×80mm

Product Description

Overview
ABB UFC719AE101 is an analog input/output module specifically designed for the field of industrial automation. It is mainly used in control systems such as ABB AC 800M or Symphony Plus to realize the collection of on-site analog signals (such as temperature, pressure, flow, etc.) and the output of control commands. As an industrial-grade I/O module, it features high-precision signal processing capability, strong anti-interference performance and high reliability. It is suitable for process control scenarios that have strict requirements on signal acquisition accuracy and stability, and serves as a key interface device connecting on-site sensors, actuators and control systems.

Technical Parameters

Category	Specific Parameters
Signal Type	Analog input: supports standard signals such as 4-20mA, 0-20mA, 0-10V; Analog output: supports current output of 4-20mA, 0-20mA (load capacity ≤500Ω)
Accuracy and Resolution	Input accuracy: ±0.1% FS (full range); Output accuracy: ±0.2% FS; Resolution: 16-bit (ensuring that small signal changes can be identified)
Sampling Rate	Independent sampling for each channel, maximum sampling rate of 100Hz (supporting synchronous sampling between channels)
Power Supply	Operating voltage: 24VDC (allowable fluctuation range ±10%); Rated power consumption: ≤8W
Environmental Adaptability	Operating temperature: -40℃~+70℃; Relative humidity: 5%~95% (non-condensing); Protection class: IP20 (must be installed in the control cabinet)
Electrical Isolation	Isolation voltage between channels ≥2500VAC; Isolation between signal and backplane bus ≥1500VAC
Mechanical Specifications	Dimensions: approximately 100mm×160mm×80mm (length × width × height); Installation method: DIN rail mounting or panel mounting
Reliability Indicators	Mean Time Between Failures (MTBF) ≥250,000 hours; Supports hot swapping, no need to shut down during maintenance

Functional Features

High-precision Signal Processing
It adopts a 16-bit high-resolution ADC/DAC chip, combined with a low-temperature drift calibration circuit, to ensure stable accuracy of signal acquisition and output within a wide temperature range (-40℃~+70℃). It can meet the requirements of precise monitoring of process parameters (such as reactor temperature, pipeline pressure) in industries like chemical engineering and metallurgy.
Flexible Signal Adaptability
It supports multiple standard analog signal types (4-20mA, 0-10V, etc.). The input/output mode can be switched through software configuration without replacing hardware, adapting to sensors of different brands (such as thermocouples, pressure transmitters) and actuators (such as control valves), thus simplifying system integration.
Anti-interference and Reliability Design
It has electrical isolation between channels and enhanced electromagnetic compatibility (EMC) design, and has passed the IEC 61000-6-2 industrial anti-interference certification. It can resist electromagnetic interference generated by on-site equipment such as motors and frequency converters to avoid signal distortion;
It has a built-in overvoltage and overcurrent protection circuit. When the on-site signal is abnormal (such as short circuit, overvoltage), the channel will be automatically cut off to protect the module and the backend control system.
Seamless System Integration and Diagnosis
It is compatible with ABB Control Builder M or Symphony Plus configuration software, through which signal types, range calibration and fault diagnosis can be remotely configured. It supports real-time status feedback (such as channel fault, disconnection alarm) to facilitate quick problem location.
Hot Swapping and High Availability
It supports hot swapping function, so there is no need to stop the control system when replacing the module, reducing downtime. It is compatible with the redundant architecture of the AC 800M system (such as power redundancy, CPU redundancy) to improve the continuous operation capability of the overall system.

Application Fields

Process Control Industry: In the production processes of chemical engineering, petroleum, natural gas, etc., it is used to collect analog signals such as reactor temperature, pipeline pressure and flow, and output control commands to control valves, valve positioners and other equipment (such as liquid level control of fractionating towers in refineries).
Metallurgy and Building Materials: It realizes high-precision signal acquisition and closed-loop control in scenarios such as temperature monitoring of blast furnace hot blast stoves in steel plants and pressure regulation of cement plant kilns.
Energy Industry: It is suitable for steam pressure monitoring of boilers in thermal power plants, pressure feedback of hydraulic systems in wind farms, etc., to ensure the stable operation of energy production processes.
Municipal and Environmental Protection: It serves as a key interface for signal conversion and transmission in liquid level and PH value monitoring in sewage treatment plants, and flow control in waterworks.
