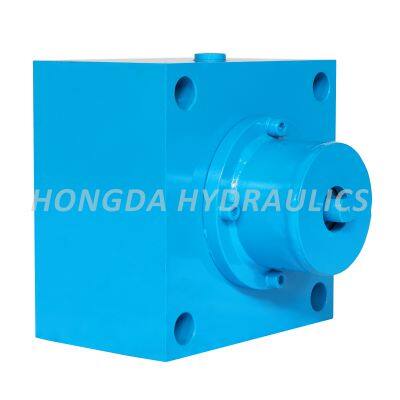

Customized Drum-like Locking Hydraulic Cylinder
US$ 300
≥1 Pieces
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 45 days
You May Like
-
Heavy Duty Tie-Rod Hydraulic Cylinders: 3" Bore x 8" Stroke - 1.969" Rod"
-
Hydraulic Outrigger Cylinder For Boom Crane Leg Cylinder
-
The hydraulic cylinder of the truck crane tilts and shifts laterally, rotates left and right, and dislocates the oil seal.
-
Hydraulic cylinder for bidirectional lifting, small-sized 40mm, custom-made, single-directional oil cylinder with 2-ton pressure, ear ring type,
-
Lift Hydraulic Cylinder for Steel Coil Flatbed Truck
-
Customized Power Steering Cylinder Shaft
Product Details
| Material | Cast Iron | Certification | GS, ROHS, CE, ISO9001 | |
| Structure | Piston Type | Work Temperature | Normal Temperature | |
| Adjusted Form | Regulated Type | Acting Way | Double Acting | |
| Working Method | Straight Trip | Pressure | Low Pressure | |
| Transport Package | Wooden box | Specification | HD180x40x7.5 | |
| Trademark | hongda | Origin | china |
Product Description
| Product title | Customized Drum-like Locking Hydraulic Cylinder |
| Product Description | The drum-like locking hydraulic cylinder serves as a specialized actuator designed with a unique locking mechanism. Its primary function is to provide controlled linear motion while incorporating a built-in locking feature. |
| Product Name | Locking Hydraulic Cylinder |
| Brand | HongDa Hydraulics |
| Model Number | HD180x40x7.5 |
| Weight | 76Kg |
| Dimension | 249x249x243 |
| Core Component | |
| Applicable Industries | Metallurgical Hydraulic Cylinder |
| Bore Dia | 180 mm/7 in |
| Rod Dia | 40 mm/1.575 in |
| Stroke | 7.5 mm/0.295 in |
| Operating Temperature | -20°~50° |
| Maximum Working Pressure | 16Mpa |
| Mounting Style | flange |
| Paint | customization acceptable |
| Working Medium | hydraulic oil |
| Certification | ISO9001:2000 |
This locking mechanism ensures the hydraulic cylinder maintains its position without the need for continuous hydraulic pressure, enhancing safety and energy efficiency in various applications. Typically used in scenarios where holding a specific position is critical, the drum-like locking hydraulic cylinder offers stability and security by mechanically locking the piston in place when the hydraulic pressure is removed, preventing unintentional movement. This feature makes it particularly useful in applications such as lifting and positioning systems, where precise control and secure locking are essential for operational safety and reliability.
