ACK25180 Degree Rotary Clamp Down Corner Cylinder ACKD Pneumatic element Small S RC25 Corner Down

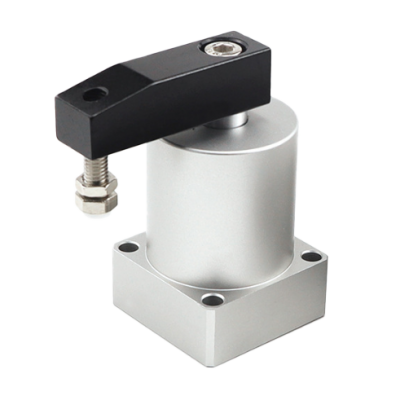

The ACK 25 series rotary clamp down corner cylinder is a compact, high-performance pneumatic component designed for applications requiring precise rotational clamping and pressing motions. With a 180-degree rotation capability, this cylinder efficiently combines rotary and linear actions in a single unit, making it ideal for space-constrained automation systems, jigs, and fixtures.

Key Features:

• Compact Design: Its small form factor (e.g., 25mm bore diameter) allows easy integration into tight spaces while delivering reliable performance.

• Rotary Clamping Action: Executes a 180-degree rotation (left or right rotation options available) followed by a vertical clamping stroke, ensuring secure workpiece handling.

• Double-Acting Operation: Provides controlled motion in both extension and retraction directions, enhancing precision in repetitive tasks.

• Robust Construction: Built to operate in demanding environments with a working pressure range of 0.15-1.0 MPa and temperatures from -20°C to 80°C.

• Standardized Interfaces: Features M5 pneumatic ports and common mounting options for simplified installation and compatibility with existing systems.

Applications:

• Ideal for automation lines, assembly fixtures, and material handling systems where rotational clamping or pressing is required.

• Commonly used in manufacturing for part positioning, pressing, and ejection tasks.

Why Choose This Cylinder?
This cylinder offers a blend of precision, durability, and space efficiency, making it a versatile solution for industrial automation needs. Its standardized design ensures compatibility and ease of maintenance.
